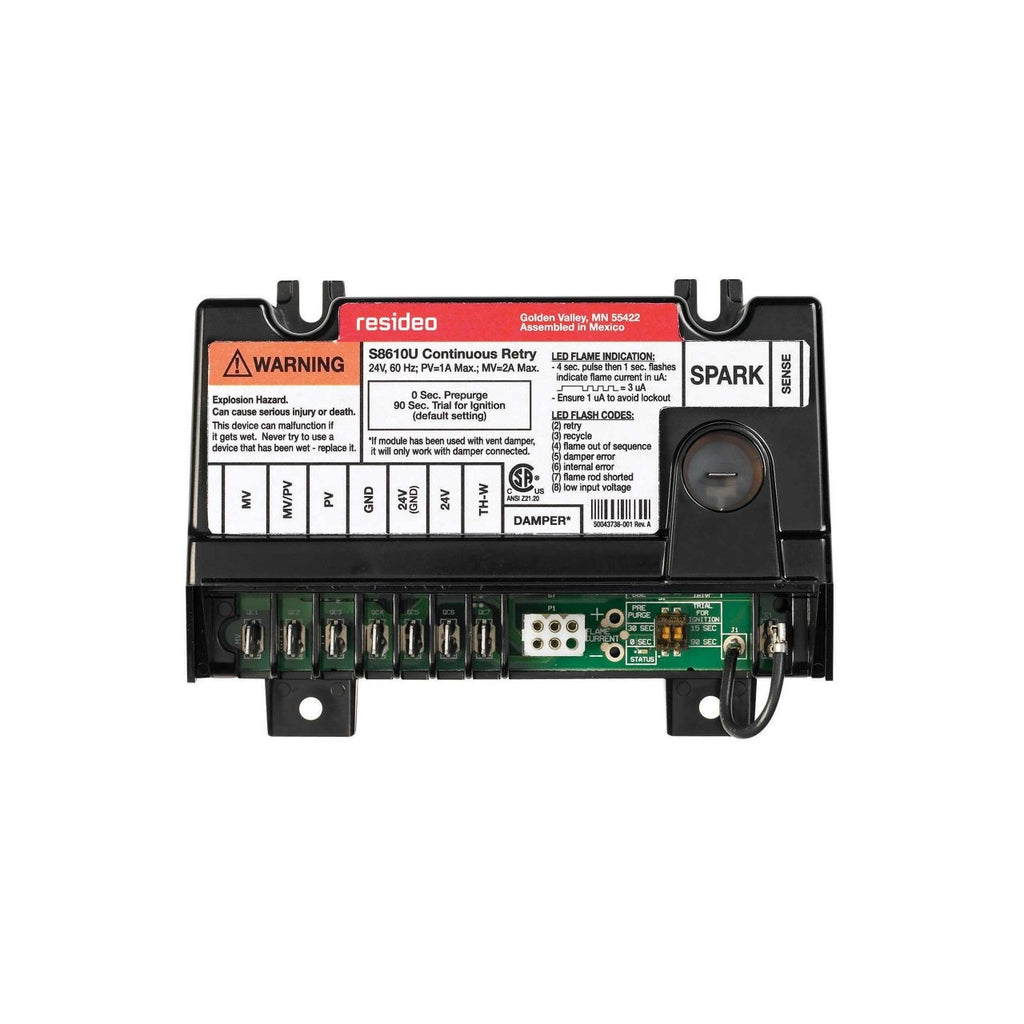

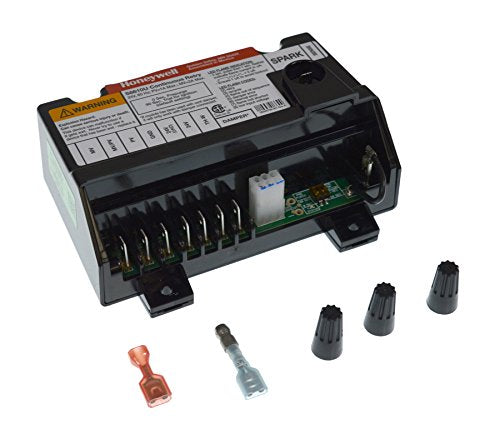

Resideo S8610U3009/U — universal intermittent pilot gas ignition module for central furnaces, residential boilers and other heating appliances.
It supplies the ignition sequence, flame monitoring and 100 percent safety shutoff for an intermittent pilot system, lighting the pilot with an internal high voltage spark and proving it by flame rectification.
- Replaces more than 400 Resideo and competitive intermittent pilot modules
- Control voltage 24 Vac, 18 to 30 Vac; anticipator 0.1 A plus valve load
- Valve load 1 A pilot with 2 A main at 165 °F, or 1 A main at 175 °F
- Continuous retry, a new trial starting 5 minutes after a failed one
- Prepurge none or 30 seconds and ignition trial 15 or 90 seconds, field selectable
- Single rod or two rod sense, natural or LP gas; integral vent damper connector
Resideo lists this material number as a Tradeline item, and no document read here defines the trailing /U. It senses flame only by rectification, so it does not replace Cycle-Pilot or Robertshaw thermal sensing controls, standing pilot appliances or direct main burner ignition.
