Protectowire PM-3A Double Loop Strap Suitable for 0.75” to 2” Pipes
6/6 Nylon Mounting Strap for 0.75in to 2in (19mm to 50mm) pipe

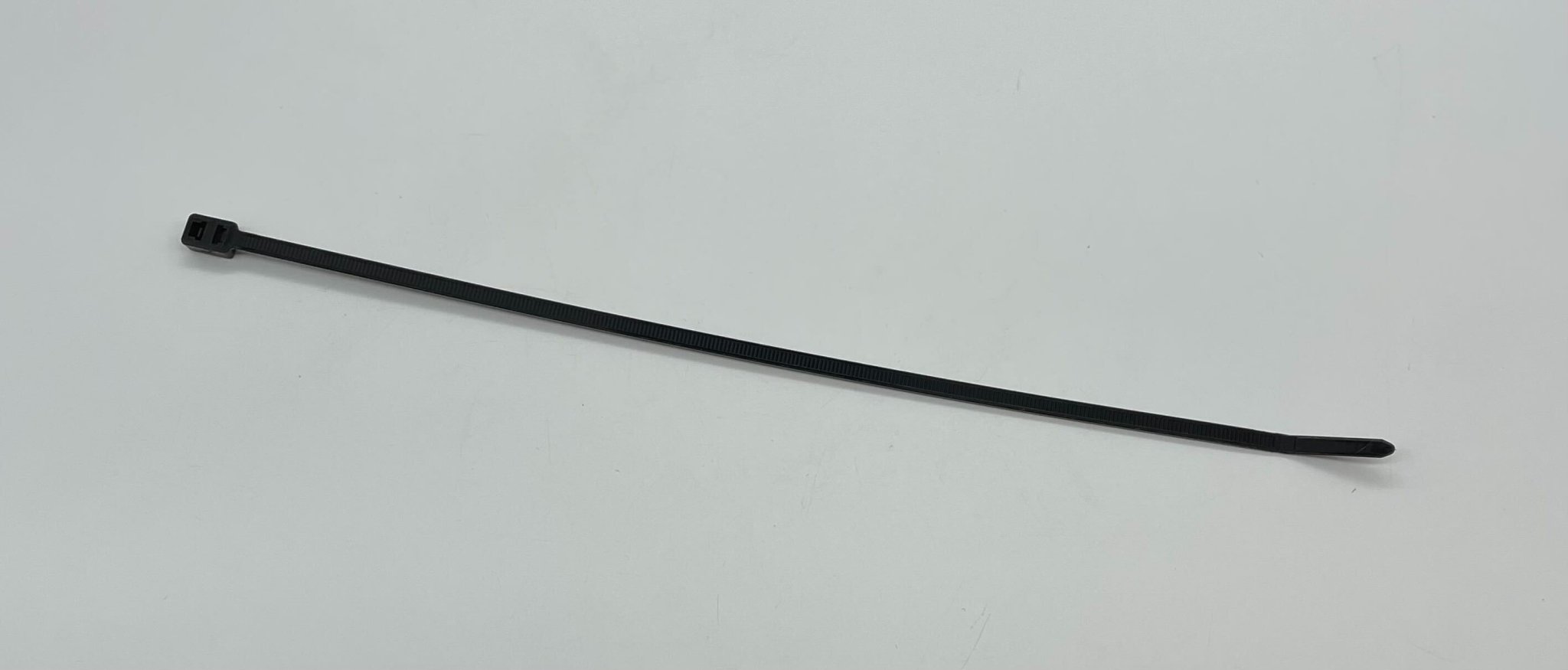

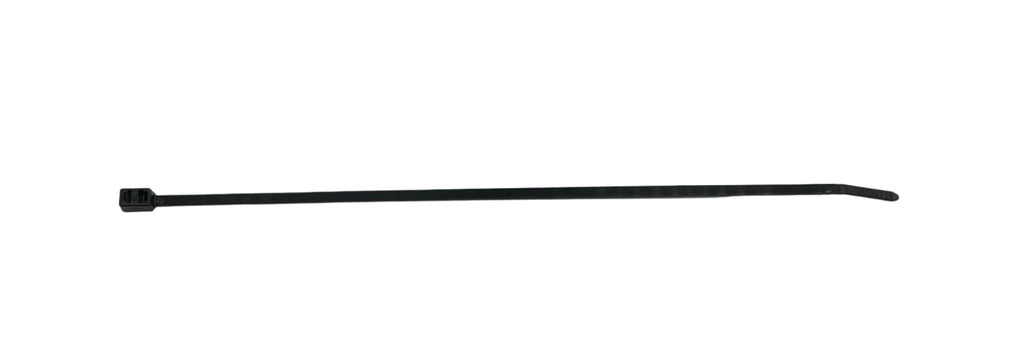

The Protectowire PM-3A is a double-loop nylon strap for fastening linear heat detector cable to pipe sized 3/4 in to 2 in (19 mm to 51 mm). The first loop wraps the pipe and the second loop holds the detector in the strap's holding block. It is made of black, weather-resistant 6/6 nylon and is typically used where the detector follows sprinkler or process piping.
Key Features
- Double-loop pipe mounting strap for Protectowire linear heat detectors
- Fits pipe sizes 3/4 in to 2 in (19 mm to 51 mm)
- Black weather-resistant, UV-stabilized nylon 6/6
- Usable from -40°F (-40°C) to 185°F (85°C)
- Maximum recommended spacing 5 ft (1.5 m)
Specifications
| Pipe size |
3/4 in to 2 in (19 mm to 51 mm) |
| Material |
Nylon 6/6, UV stabilized |
| Temperature range |
-40°F (-40°C) to 185°F (85°C) |
| Length |
7.6 in (193 mm) |
| Width |
0.19 in (4.8 mm) |
| Thickness |
0.052 in (1.3 mm) |
| Maximum recommended spacing |
5 ft (1.5 m) |
Compatible With
- Protectowire PHSC linear heat detector
- Protectowire PLR linear heat detector
- Protectowire CTI linear heat detector
- Protectowire fiber optic linear heat detector
