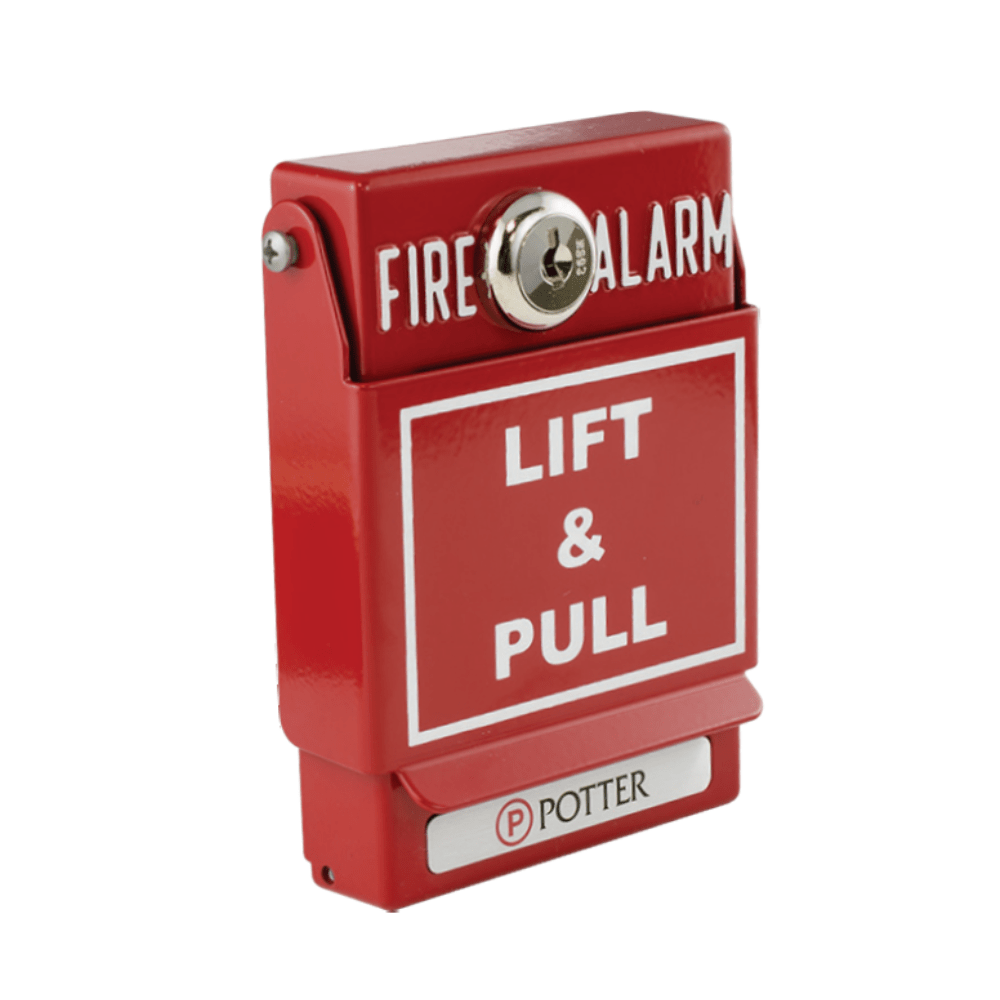

Potter PAD100-PSDA — non-coded dual action addressable manual pull station for signaling line circuits using the Potter PAD protocol.
Dual action means two deliberate motions: lift the front cover, then pull the white T bar down. Opening that cover alone also activates the station, so a cover lifted without cause is reported rather than ignored. The bar cannot then be reset without opening the cover with a Potter WS-93 key.
- Works only with addressable fire systems using the Potter PAD addressable protocol
- Addresses 1 to 127, set on a seven-position DIP switch on the device
- Operating voltage 24.0 V; maximum SLC standby and alarm current 200 µA each
- SLC supports Class A, Class B and Class X; SLC+ and SLC- are power limited and supervised
- 32°F to 120°F (0°C to 49°C); relative humidity 0 to 93% non-condensing
- 4.75" L × 3.25" W × 1.75" D; single-gang box or Potter P32-BB or deep P32-DBB
The single action sibling PAD100-PSSA shares this manual and every electrical rating but is pulled directly, with no cover to lift first, so the action is the only difference between them.
