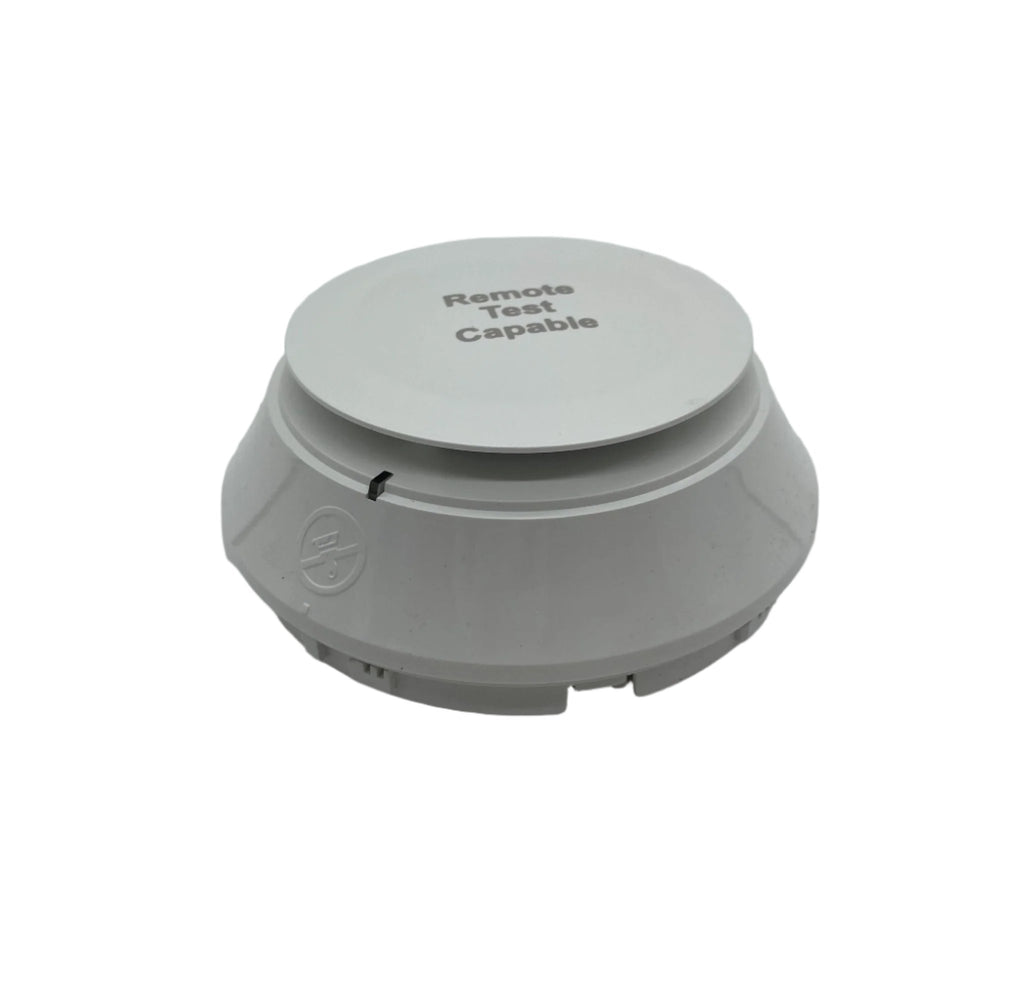

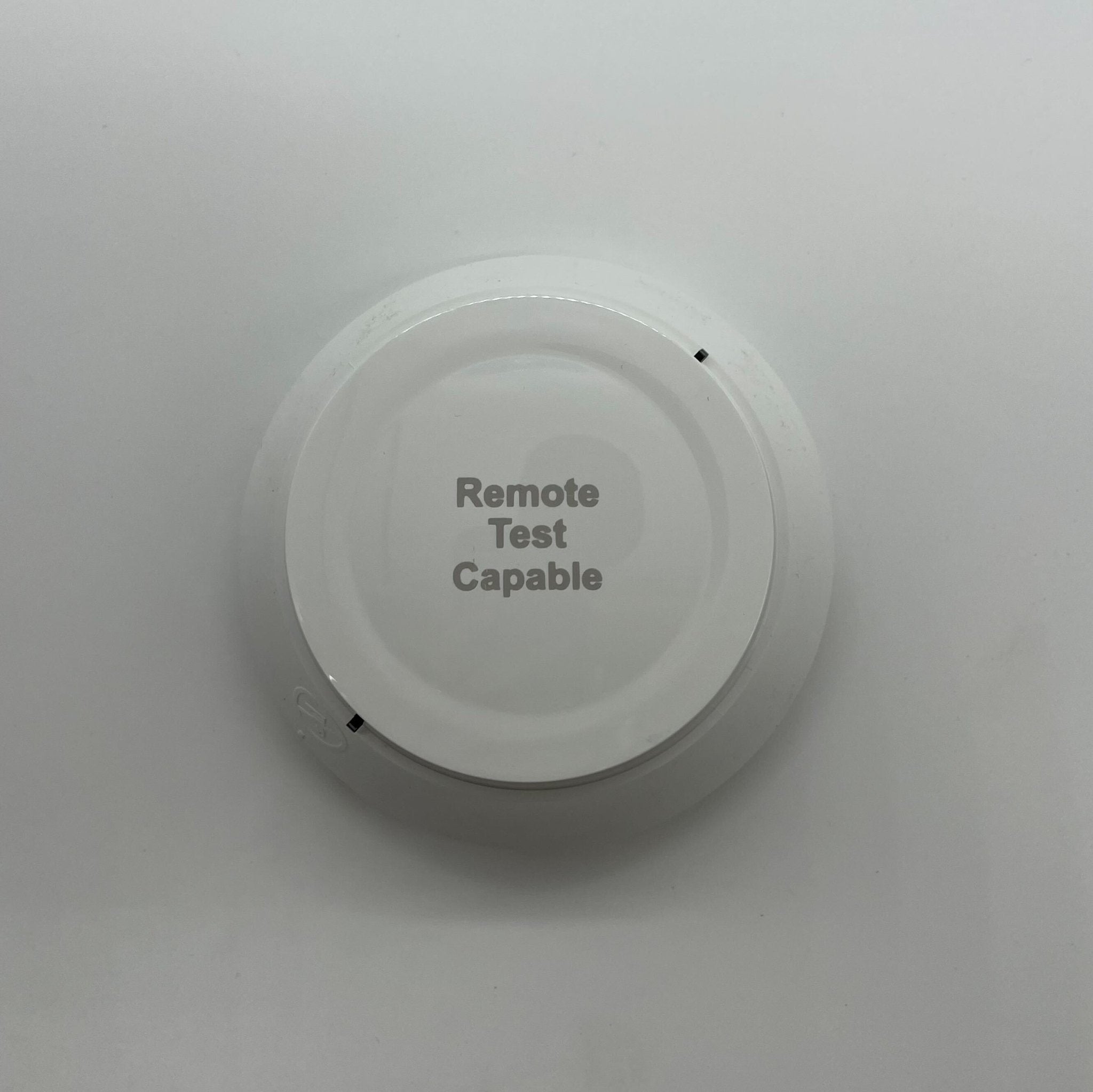

NOTIFIER FSP-951R — white, low-profile intelligent plug-in photoelectric smoke sensor, remote test capable, for use with DNR/DNRW duct detector housings, FlashScan only.
The FSP-951R is the remote-test variant of the FSP-951 Series and is intended to be installed inside a DNR Series duct detector housing rather than on an open ceiling. Sensitivity is programmed in the control panel software, continuously monitored and reported back to the panel, and the detector is addressed by rotary decimal switches for exact point identification. An enhanced optical sensing chamber responds to a wide range of combustion sources, and the series is designed to meet UL 268 7th Edition. The detector plugs into a separate base, which is ordered separately and also carries the field wiring; the same base accepts photoelectric, ionization and thermal sensors, so sensor technology can be changed without rewiring.
Specifications
| Type |
Intelligent plug-in photoelectric smoke detector, remote test capable |
| Protocol |
FlashScan only |
| Colour |
White |
| SLC connection |
Two-wire signaling line circuit; unit uses base for wiring |
| Addressing |

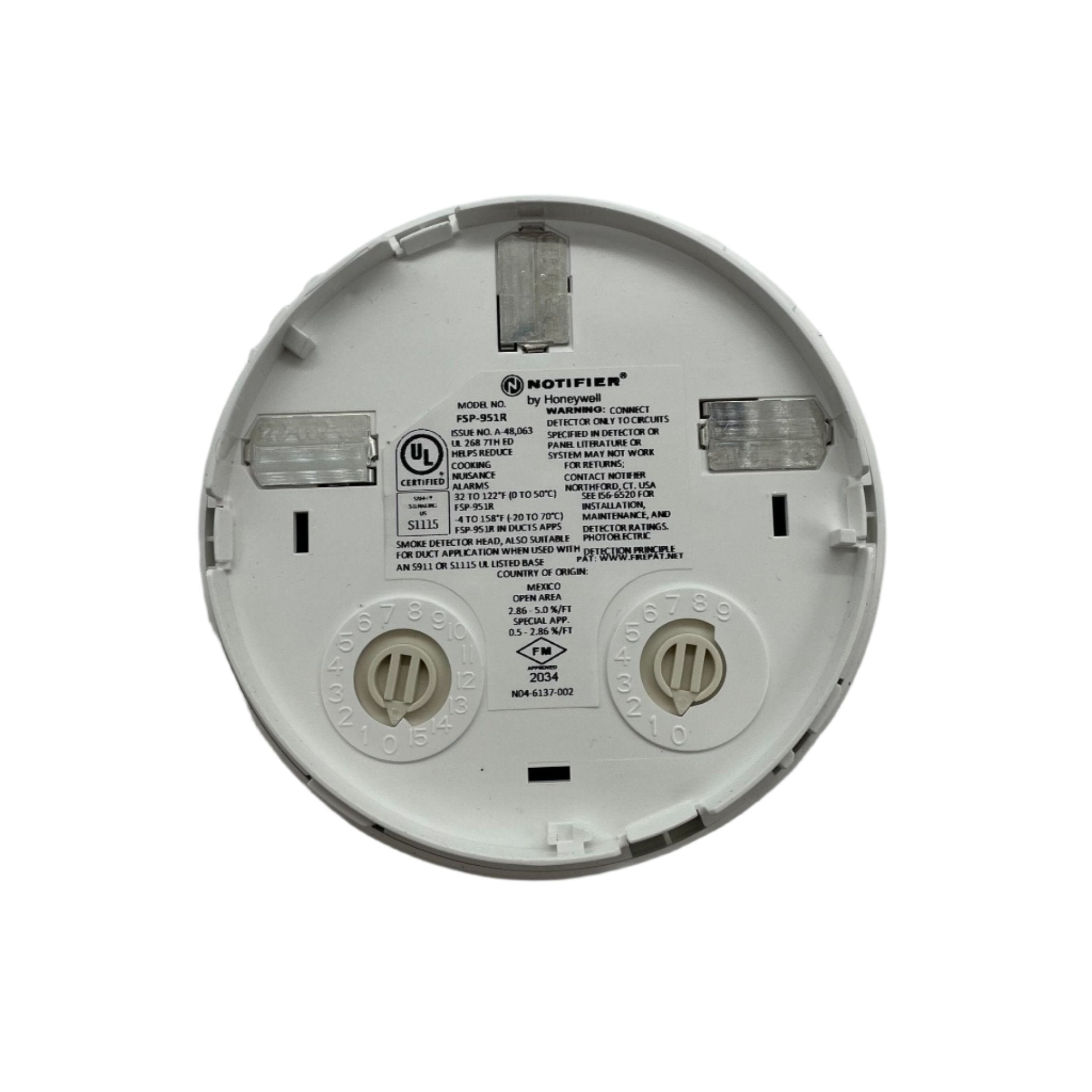

Rotary, decimal address switches |
| Sensitivity (UL) |
0.5% to 4.0% per foot obscuration |
| Sensitivity (ULC) |
0.5% to 3.5% per foot obscuration |
| Factory preset |
1.5% nominal sensitivity for panel alarm threshold level |
| Voltage range |
15 – 32 volts DC peak |
| Standby current (max. avg.) |
200 µA @ 24 VDC (one communication every 5 seconds with LED enabled) |
| Max current |
4.5 mA @ 24 VDC (“ON”) |
| Operating temperature range |
FSP-951R Series installed in DNR/DNRA/DNRW: -4°F to 158°F (-20°C to 70°C) |
| Relative humidity |
10% – 93% non-condensing |
| UL/ULC listed velocity range |
0 – 4000 ft/min. (1219.2 m/min.), suitable for installation in ducts |
| Size |
2.0 in. (51 mm) high; base determines diameter — B300-6 series 6.1 in. (15.6 cm), B501 series 4 in. (10.2 cm) |
| Shipping weight |
3.4 oz. (95 g) |
| Listings and approvals |
UL/ULC Listing S1115; FM Approved; CSFM 7272-0028:0503 |
| Country of origin |
Mexico |
Installation notes
-
Base sold separately: the detector plugs into a detachable base that carries the SEMS-screw field wiring. Mount the base on an electrical backbox at least 1.5 in. (3.81 cm) deep; see DN-60054 for the chart of compatible junction boxes.
-
Duct housing application: the -4°F to 158°F (-20°C to 70°C) operating range published for the FSP-951R Series applies to the detector installed in a DNR/DNRA/DNRW housing. Open-area FSP-951 detectors are rated 32°F to 122°F (0°C to 50°C).
-
FlashScan only: the plain FSP-951R is a FlashScan device. In the NOTIFIER ordering table the “-IV” suffix designates the CLIP-and-FlashScan version, so specify FSP-951R-IV if the loop must run CLIP.
-
No end-of-line resistor: because of the supervision inherent in the SLC loop, end-of-line resistors are not required. Wiring “T-taps” or branches are permitted for Class B wiring only.
-
Isolator and sounder bases: when using relay or sounder bases, consult the ISO-X(A) installation sheet I56-1380 for device limitations between isolator modules and isolator bases.
-
Testing: supports remote test from the panel, walk test with address display on FlashScan systems, and a built-in functional test switch activated by an external magnet (test magnets M02-04-00 or M02-09-00).
Related models
-
FSP-951 — white low-profile intelligent photoelectric sensor, FlashScan only; the standard open-area detector without the remote test capability.
-
FSP-951R-IV — ivory version of this remote test capable detector, for use with DNR/DNRW; the -IV suffix indicates a CLIP and FlashScan device.
-
FSP-951RA — same as FSP-951R but with ULC listing, for use with the DNRA housing.
-
FSP-951T — white FSP-951 with a built-in 135°F (57°C) fixed-temperature thermal device, FlashScan only.
-
FSP-851 Series — the previous generation; the FSP-951 Series is its direct replacement.
-
B300-6 / B501 / B224RB-WH / B224BI-WH / B200S-WH — standard, flangeless, relay, isolator and sounder bases; see DN-60981 for the full base list.
Specifications taken from the NOTIFIER data sheet “FSP-951 Series Addressable Photoelectric Smoke Detectors,” document DN-60977:D (8/13/2020). Manufacturer specifications are subject to change without notice.
