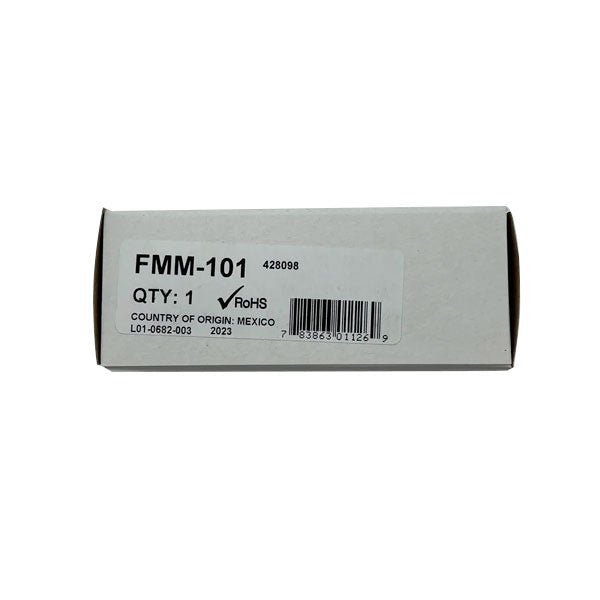

NOTIFIER FMM-101 — a miniature addressable monitor module that supervises a Style B (Class B) circuit of dry-contact input devices, small enough to mount inside a single-gang box behind the device it monitors.
At 1.3" high x 2.75" wide x 0.65" deep, its compact design and light weight allow it to be installed without rigid mounting, directly behind the monitored unit. The FMM-101 is intended for use in intelligent, two-wire systems where the individual address of each module is selected using rotary switches. It provides a two-wire initiating device circuit for normally-open-contact fire alarm and security devices, and can be used to replace MMX-101(A) modules in existing systems.
Use it to monitor a single device or a zone of four-wire smoke detectors, manual fire alarm pull stations, waterflow devices, or other normally-open dry-contact devices. It may also monitor normally-open supervisory devices with special supervisory indication at the control panel. The module is powered directly by the two-wire SLC loop — no additional power is required — and built-in type identification automatically identifies it as a monitor module to the panel. Tinned, stripped leads are provided for ease of wiring, and a 47K ohm end-of-line resistor is supplied.
Specifications
| Function |
Miniature monitor module, one Style B (Class B) initiating device circuit |
| Nominal operating voltage |
15 to 32 VDC |
| Average operating current |
350 µA, 1 communication every 5 seconds, 47k EOL |
| Maximum current |
600 µA (communicating, IDC shorted) |
| Power source |
Powered directly by two-wire SLC loop; no additional power required |
| Maximum IDC wiring resistance |
1500 ohms |
| Maximum IDC voltage |
11 volts |
| Maximum IDC current |
450 µA |
| EOL resistance |
47K ohms (resistor provided) |
| Addressing |
Direct-dial entry, 01–159 on FlashScan® loops; 01–99 on CLIP loops |
| Dimensions |
1.3" (3.302 cm) high x 2.75" (6.985 cm) wide x 0.65" (1.651 cm) deep |
| Wire length |
6" (15.24 cm) minimum |
| Temperature range |
32°F to 120°F (0°C to 49°C) |
| Humidity range |
10% to 93% non-condensing |
| UL listed |
S635 |
| ULC listed |
S635 |
| FM |
Approved |
| CSFM |
7300-0028:0219, 7165-0028:0224, 7165-0028:0243 |
| MEA |
457-99-E |
| FDNY |
COA #6121 (NFS2-640, NFS-320), COA #6114 (NFS2-3030) |
Installation notes
-
Class B only: the FMM-101 supervises a Style B (Class B) circuit. If the design calls for Style D (Class A), use the full-size FMM-1 instead.
-
Mounting: intended to be wired and mounted without rigid connections inside a standard electrical box — typically the single-gang box behind the monitored device.
-
End-of-line resistor: the supplied 47K ohm EOL resistor terminates the circuit. Do not substitute the 3.9K resistor used by two-wire detector interface modules.
-
IDC limits: maximum IDC wiring resistance is 1500 ohms; exceeding it will produce trouble conditions.
-
Address range depends on protocol: 01–159 on FlashScan, 01–99 on CLIP. Avoid duplicating addresses on the system.
-
Power-limited wiring only. All wiring must conform to applicable local codes, ordinances and regulations; refer to the SLC Wiring Manual, PN 51253.
Related models
-
FMM-101A — ULC-listed version of the same mini monitor module.
-
FMM-1 — standard-size monitor module supporting either Style D (Class A) or Style B (Class B) circuits; mounts to a 4" square box.
-
FDM-1 — dual monitor module providing two independent Class B circuits at two consecutive addresses.
-
FZM-1 — monitors and powers a circuit of compatible two-wire smoke detectors, using a 3.9K ohm EOL resistor.
Specifications taken from the NOTIFIER data sheet "FMM-1(A), FMM-101(A), FZM-1(A) & FDM-1(A) Monitor Modules with FlashScan," document DN-6720:E (07/30/2015). Manufacturer specifications are subject to change without notice.
