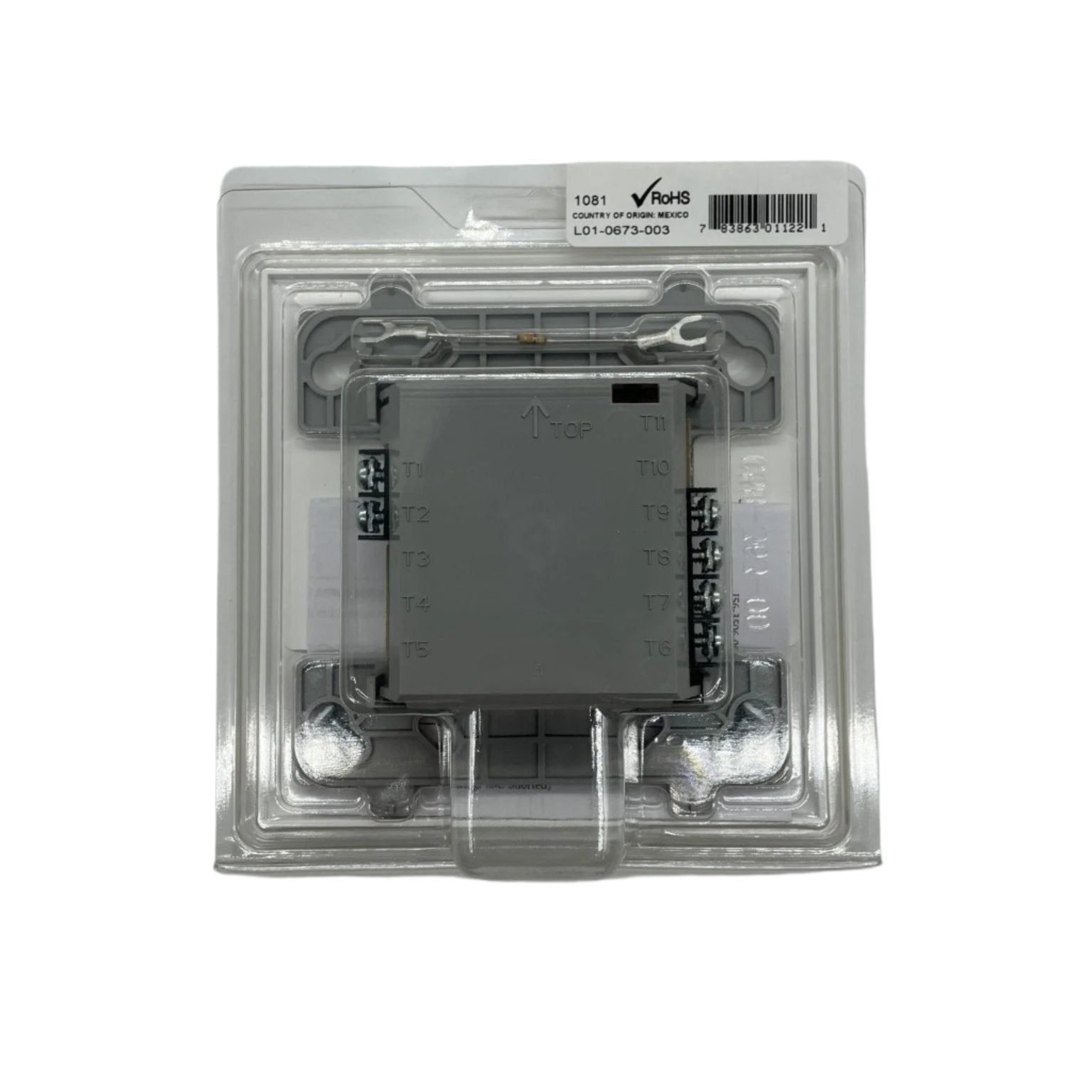

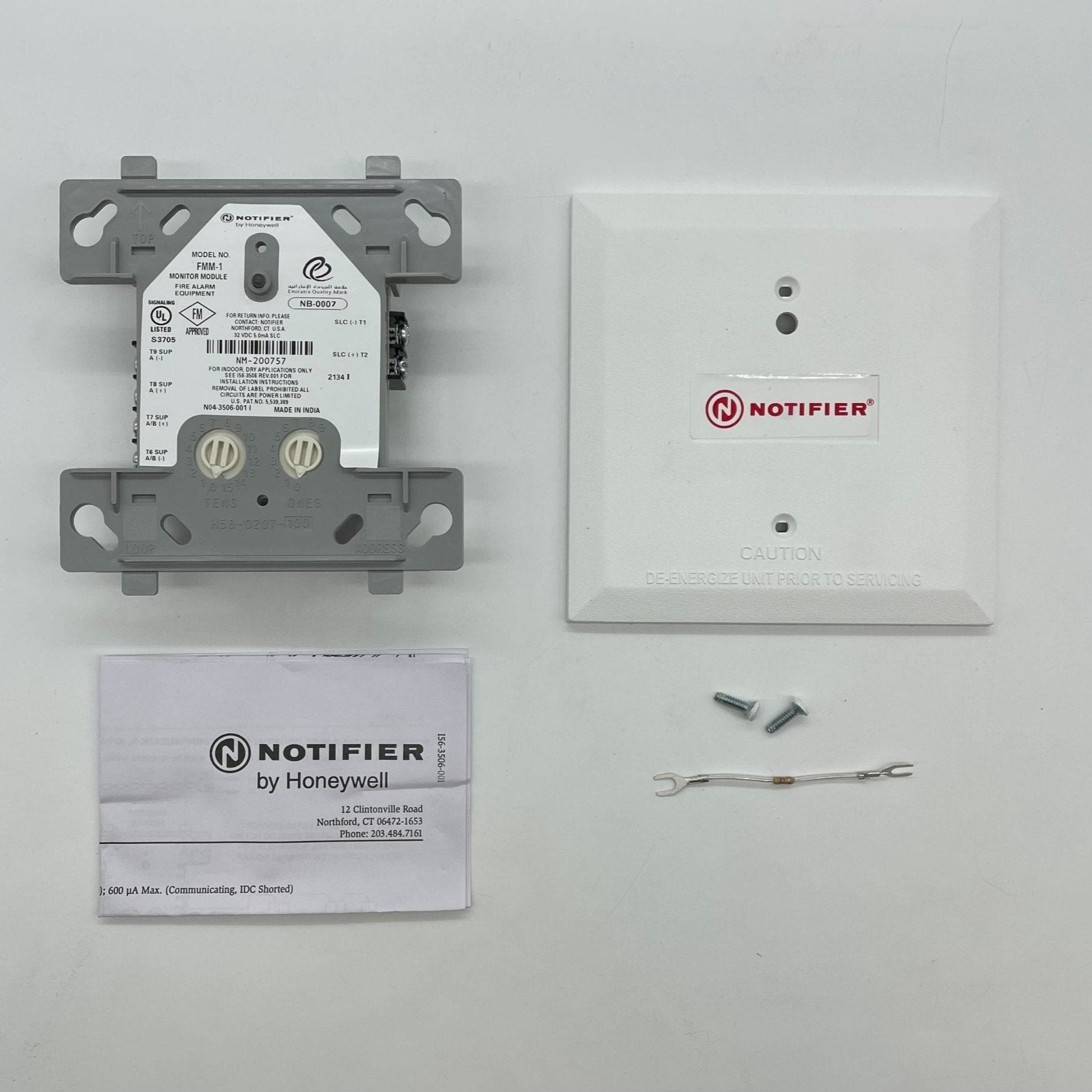

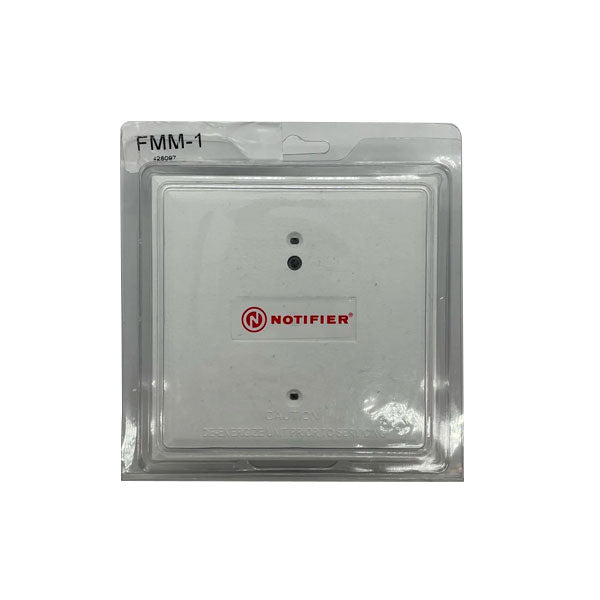

NOTIFIER FMM-1 — a standard-size addressable monitor module that supervises either a Style D (Class A) or Style B (Class B) circuit of dry-contact input devices.
The FMM-1 is intended for use in intelligent, two-wire systems, where the individual address of each module is selected using the built-in rotary switches. It provides either a two-wire or four-wire fault-tolerant Initiating Device Circuit (IDC) for normally-open-contact fire alarm and supervisory devices, and has a panel-controlled LED indicator. The FMM-1 can be used to replace MMX-1(A) modules in existing systems.
Use it to monitor a zone of four-wire smoke detectors, manual fire alarm pull stations, waterflow devices, or other normally-open dry-contact alarm activation devices. It may also be used to monitor normally-open supervisory devices with special supervisory indication at the control panel. The module is powered directly by the two-wire SLC loop — no additional power required — and built-in type identification automatically identifies it as a monitor module to the control panel. The LED flashes green during normal operation (a programmable option) and latches on steady red to indicate alarm. SEMS screws with clamping plates ease wiring.
Specifications
| Function |
Monitor module — Style D (Class A) or Style B (Class B) initiating device circuit |
| Nominal operating voltage |
15 to 32 VDC |
| Maximum current draw |
5.0 mA (LED on) |
| Average operating current |
375 µA (LED flashing), 1 communication every 5 seconds, 47k EOL |
| Power source |
Powered directly by two-wire SLC loop; no additional power required |
| Maximum IDC wiring resistance |
1500 ohms |
| Maximum IDC voltage |
11 volts |
| EOL resistance |
47K ohms (resistor provided) |
| Addressing |
Direct-dial entry, 01–159 on FlashScan® loops; 01–99 on CLIP loops |
| Dimensions |
4.5" (11.43 cm) high x 4" (10.16 cm) wide x 1.25" (3.175 cm) deep |
| Mounting |
Mounts to a 4" (10.16 cm) square x 2.125" (5.398 cm) deep box |
| Temperature range |
32°F to 120°F (0°C to 49°C) |
| Humidity range |
10% to 93% non-condensing |
| UL listed |
S635 |
| ULC listed |
S635 |
| FM |
Approved |
| CSFM |
7300-0028:0219, 7165-0028:0224, 7165-0028:0243 |
| MEA |
457-99-E |
| FDNY |
COA #6121 (NFS2-640, NFS-320), COA #6114 (NFS2-3030) |
Installation notes
-
End-of-line resistor depends on wiring class: a 47K ohm EOL resistor (provided) terminates the Style B circuit. No resistor is required for supervision of the Style D circuit.
-
Backbox: mounts directly to a standard 4" square, 2.125" deep electrical box, or to the optional SMB500 surface-mount box.
-
Power-limited wiring only. All wiring must conform to applicable local codes, ordinances and regulations.
-
Dry contacts, not two-wire detectors: the FMM-1 monitors normally-open dry contacts. To monitor and power a zone of conventional two-wire smoke detectors, the FZM-1 is the correct module.
-
IDC limits: maximum IDC wiring resistance is 1500 ohms and maximum IDC voltage is 11 volts.
-
Address range depends on protocol: 01–159 on FlashScan, 01–99 on CLIP. Avoid duplicating addresses on the system; refer to the SLC Wiring Manual, PN 51253.
Related models
-
FMM-1A — ULC-listed version of the same monitor module.
-
FMM-101 — miniature version at 1.3" x 2.75" x 0.65" that fits behind the monitored device, but supports Class B circuits only.
-
FDM-1 — dual monitor module providing two independent Class B circuits at two consecutive addresses.
-
FZM-1 — interface module that monitors and powers compatible two-wire smoke detectors, using a 3.9K ohm EOL resistor.
-
SMB500 — optional surface-mount backbox.
Specifications taken from the NOTIFIER data sheet "FMM-1(A), FMM-101(A), FZM-1(A) & FDM-1(A) Monitor Modules with FlashScan," document DN-6720:E (07/30/2015). Manufacturer specifications are subject to change without notice.
