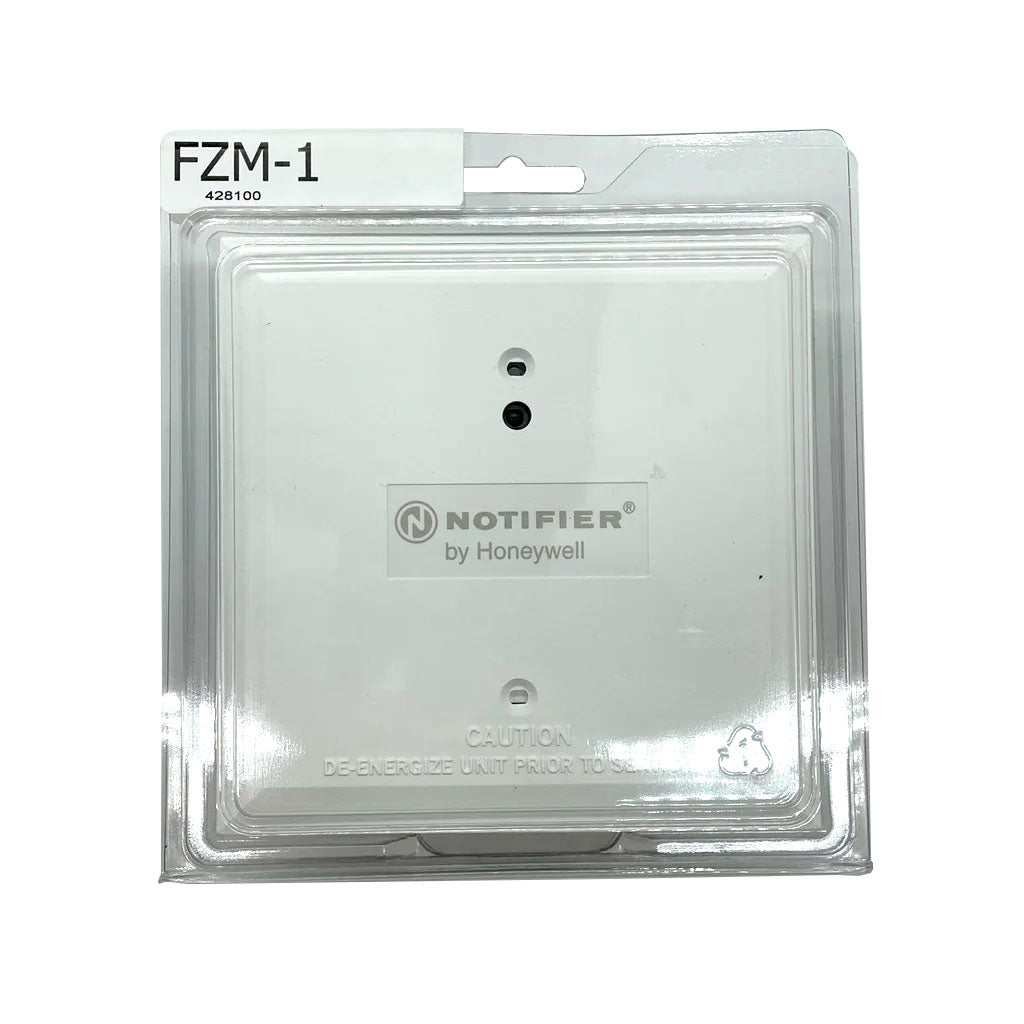

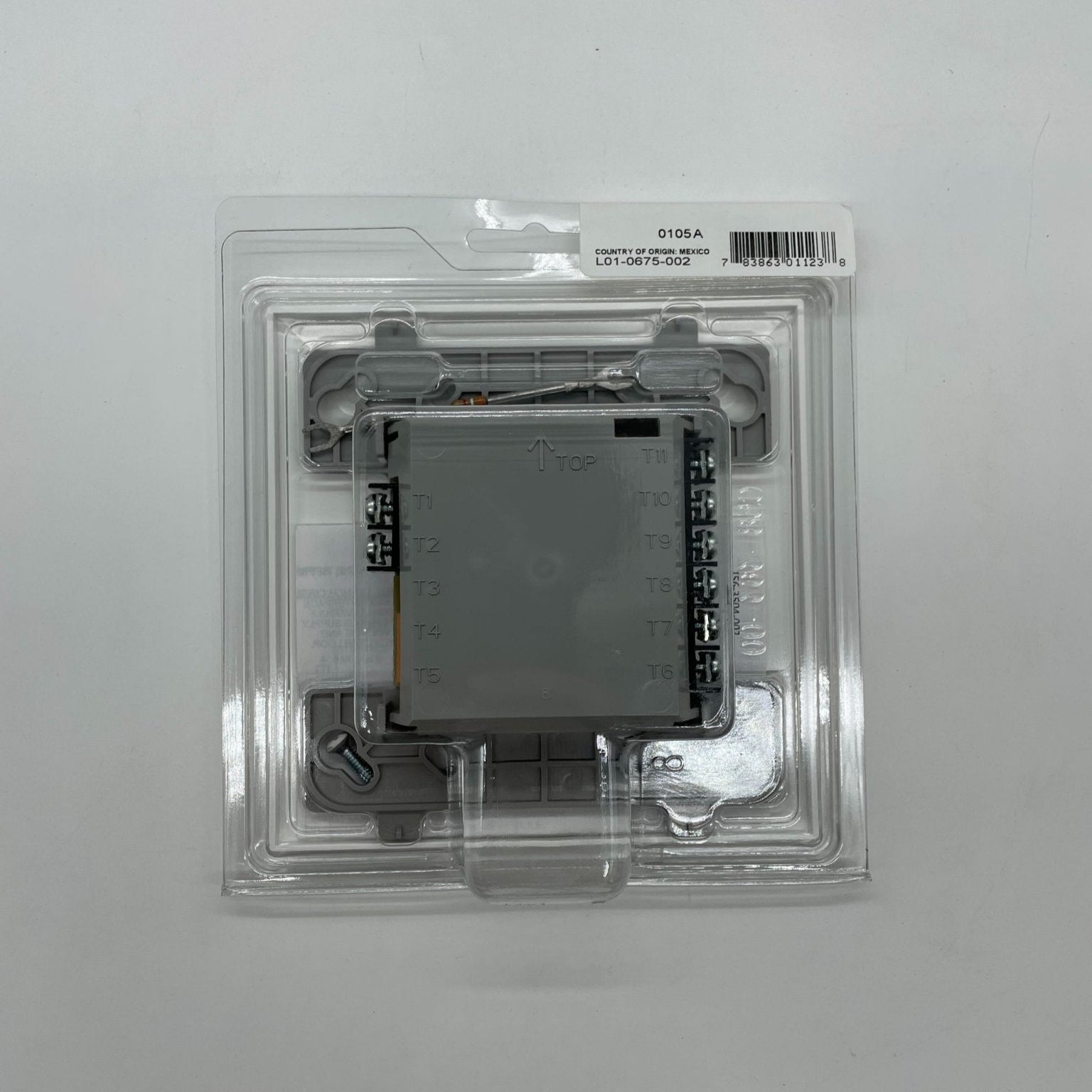

Notifier FZM-1 — addressable interface module that places a zone of conventional two-wire smoke detectors on an intelligent SLC loop.
A two-wire conventional detector cannot answer an addressable poll and needs its own 24 V supply. The FZM-1 bridges the two: it monitors and supervises one zone of compatible two-wire detectors and reports that zone to the panel at a single address as normal, open or alarm. It replaces MMX-2 in existing systems.
- Monitors a Style B (Class B) or Style D (Class A) initiating device circuit
- Nominal operating voltage 15 to 32 VDC; 5.1 mA maximum draw, LED on
- Rotary address switches, 01–159 on FlashScan loops, 01–99 on CLIP
- 3.9 kΩ end-of-line resistor supplied; maximum IDC wiring resistance 25 Ω
- External supply 24 VDC power limited, 90 mA per module maximum
- Mounts to a 4" square, 2.125" deep electrical box
Detectors monitored must be UL compatible with the module. Do not substitute FMM-1, which supervises dry contacts on a 47 kΩ EOL and cannot power two-wire detectors, or FDM-1, a dual Class B monitor using two addresses.
Documents
FAQ
What does the FZM-1 do?
It monitors and supervises compatible two-wire, 24 V smoke detectors on a Style D (Class A) or Style B (Class B) circuit, and reports that zone to the intelligent panel at one address.
Does it need external power?
Yes. The FZM-1 supervises the IDC wiring and the connection of an external power source for the two-wire detectors.
How is the address set?
With built-in rotary switches.
What box does it mount in?
It is a standard-sized module that mounts to a 4 in. square electrical box.
