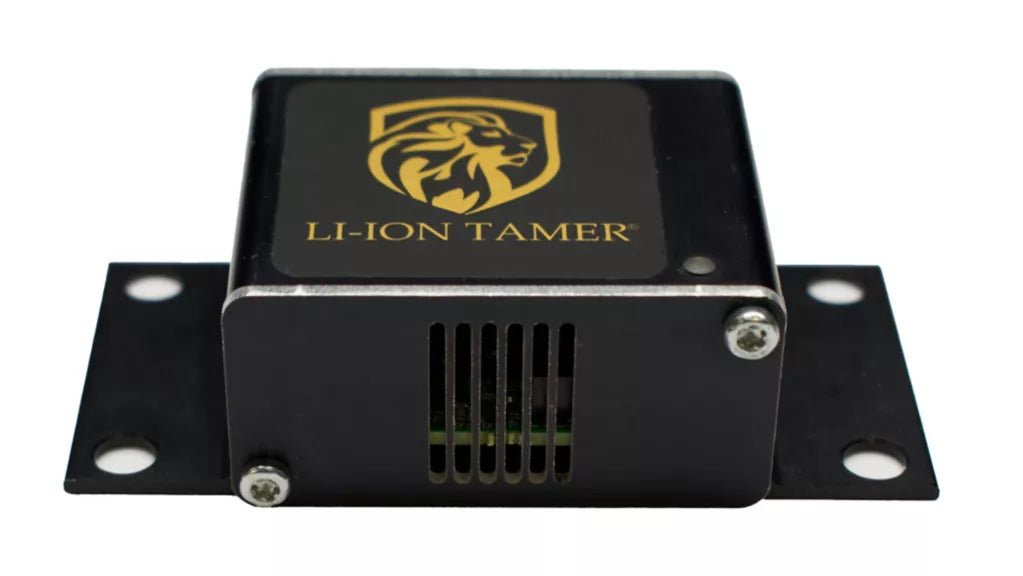

Li-ion Tamer LT-SEN-M3 Sensor Monitoring LT Gen 3 275mW: Dia 28.58mm
The LT-SEN-M3 is the monitoring sensor for the Honeywell Li-ion Tamer Gen 3 lithium-ion battery off-gas detection system. The sensor detects lithium-ion battery electrolyte solvent vapours (off-gas) and also measures temperature and humidity, sending its readings over CANbus to the Li-ion Tamer hub. It is used in battery energy storage, UPS and similar installations to give early warning ahead of thermal runaway.
Key Features
- Detects lithium-ion battery electrolyte solvent vapours (off-gas)
- Temperature and humidity monitoring of the space
- Transmits readings via CANbus to the Li-ion Tamer Gen 3 hub
- Response time: 5 seconds
- Lifetime: >10 years
- ETL Listed to UL 61010 and CSA 22.2 No. 61010; CE, UKCA, FCC
Specifications
| Gases detected |
Lithium-ion battery electrolyte solvent vapors |
| Minimum sensitivity |
10 ppm/sec |
| Minimum response time |
5 seconds |
| Operating ambient temperature |
-10 to 50 °C |
| Operating humidity |
20 to 90 % RH |
| Lifetime |
>10 years |
| Power |
275 mW |
| Diameter |
28.58 mm |
Compatible With
- Li-ion Tamer Gen 3 Hub
- Li-ion Tamer Gen 3 Controller
