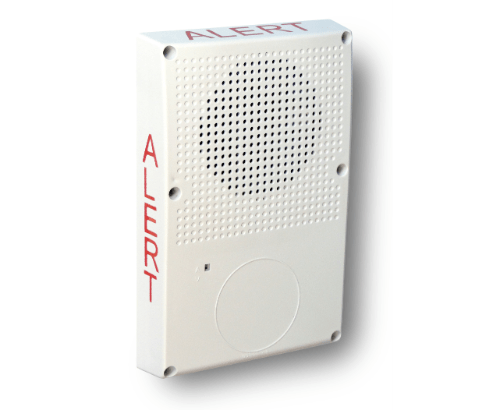

Kidde WG4WA-S — Genesis WG4 Series outdoor-rated speaker (speaker only) in a white housing with ALERT marking.
Kidde lists this model among its ECS/MNS appliances: the ALERT label separates mass notification signals from FIRE-marked life safety ones. It is rated for indoor or outdoor use in wet and harsh locations such as parking garages, mounts on a wall or ceiling, wires room-side and has no strobe. For surface mounting in outdoor or wet locations, Kidde requires the 74347U box.
- Switch-selectable 25 V or 70 V (factory default 70 V), with 1/4, 1/2, 1 or 2 W taps
- 80.8 to 90.0 dBA at 10 ft. per UL 1480 (reverberant room, 400–4,000 Hz pink noise)
- Speaker response 400 to 4,000 Hz; 30 V maximum supervisory voltage
- Operating range -31 to 151 °F, 0–95% RH non-condensing
- 12 to 18 AWG terminals; in dry locations, a 4 in. square box 1-1/2 in. deep, or 2-1/8 in. deep with the WG4WTS trim skirt
Do not confuse it with WG4WF-S (white, FIRE marking) or WG4WN-S (white, no marking). WG4WA-SVMC, -SVMA, -SVMHC and -SVMHA add a clear or amber strobe. WG4GSKT is the replacement gasket.
