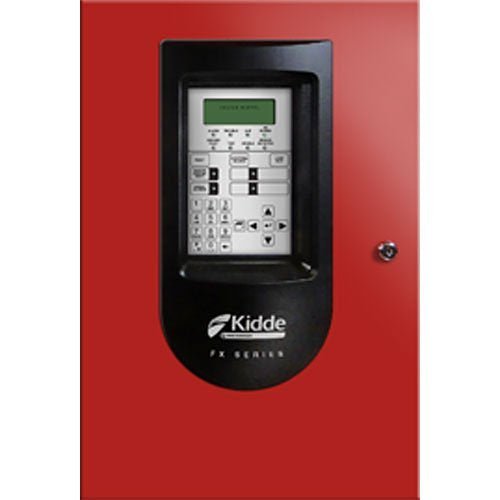

Small buildings get a complete addressable system with the Kidde FX-64R, a one-loop intelligent fire alarm control panel with 64-point capacity. It includes two notification appliance circuits and comes in a surface-mount enclosure with a red door. Auto-programming and support for existing wiring make it a good fit for both new work and retrofits.
Key Features
- One Class A or Class B intelligent loop that supports 64 devices of any type
- Two Class B NACs (Class A with the SA-CLA module). Horns can be silenced over two wires, and strobe sync meets UL 1971 with Genesis appliances
- Auto-programming, rotary addressing and a 4 x 20 backlit LCD
- Form C contacts for alarm and trouble, Form A for supervisory
- Optional SA-ETH Ethernet card for central station monitoring, programming and reports
- Supports up to eight serial annunciators
Specifications
-
Manufacturer: Kidde
-
Part Number: FX-64R
-
Loop Capacity: 1 loop, 64 device addresses
-
NACs: 2 Class B (2 Class A with SA-CLA)
-
NAC Output: 24 VFWR; 3.75 A total, 2.5 A max per circuit (120/230 VAC, 60 Hz)
-
Isolators: 64 maximum
-
Enclosure: Surface mount, red door
-
Dialer: Not included; order separately
Compatibility
Supports Kidde FX Series intelligent detectors and modules, and Genesis notification appliances for strobe synchronization. The RZI16-2RS module adds conventional circuits for retrofits.
