Designed for small buildings, the Kidde FX-278 is a double-action intelligent pull station with a Lexan housing and rotary address dials. It works as an addressable module on Kidde FX-64 and FX-1000 intelligent fire alarm systems. A factory-installed mini module supervises the station and reports an alarm to the panel when the handle is pulled.
Key Features

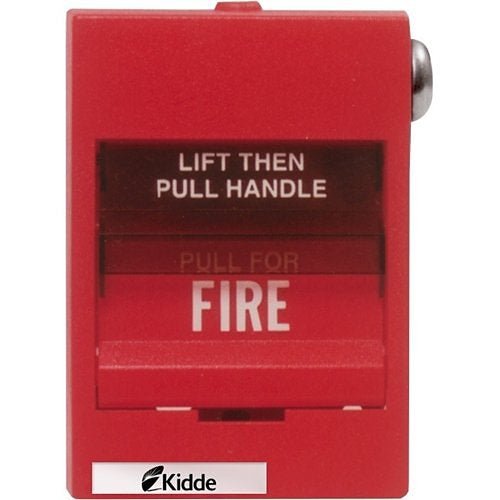

- Double action: lift the upper door marked "LIFT THEN PULL HANDLE", then pull the handle
- Rugged Lexan housing with keyed reset
- Familiar rotary dials (tens and ones) for addressing
- Onboard microprocessor; diagnostic LED flashes green for normal polling and red for alarm
- Alarm latches at the station until reset
- Meets ADA requirements for manual pull stations
Specifications
-
Manufacturer: Kidde
-
Part Number: FX-278
-
Type: Double-action addressable manual pull station
-
Housing: Lexan
-
Addressing: Rotary dials; 01–64 (64-point SLC) or 01–125 (250-point control panel)
-
Current: 350 µA standby; 500 µA activated
-
Communication Line Voltage: 20 V peak-to-peak max.
-
Operating Environment: 32°F to 120°F (0°C to 49°C); 0–93% RH non-condensing
-
Electrical Box: 2-1/2" deep 1-gang box, or 4" square box 1-1/2" deep with 1-gang cover
-
Wire Size: 12–18 AWG (16 and 18 AWG preferred)
Compatibility
For use with Kidde FX-64 and FX-1000 intelligent fire alarm control panels.
