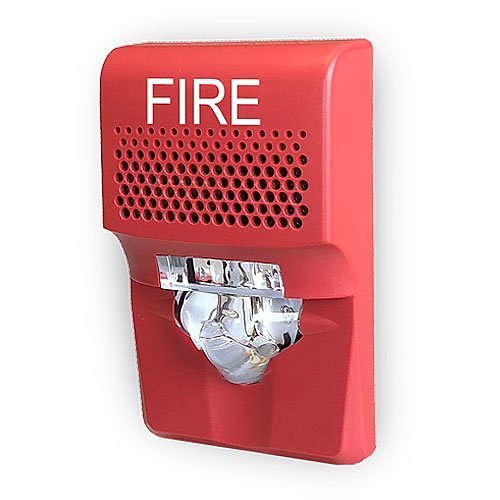

About the size of a single-gang box, the Kidde EG1AVRF is a Genesis LED EG1 Series compact wall horn/strobe in red with "FIRE" marking. It is made for indoor, dry locations where a low-profile notification appliance fits better than a full-size device. The EG1AVRF replaces the EG1F-HDVM.
Key Features
- Field-selectable strobe output of 15, 30 or 75 candela
- Horn can be set to constant or T3 temporal, at high or low dB
- Synchronization circuitry meets current UL 1638 and CAN/ULC-S526 requirements
- Input wiring test points on the front (with the cover removed) for quick circuit checks
- Mounts on 1-gang, 2-gang, 4 in octagon or 4 in square boxes. Use the EG1TR/EG1TW trim ring on boxes wider than 3 in
Specifications
-
Manufacturer: Kidde
-
Part Number: EG1AVRF
-
Replaces: EG1F-HDVM
-
Color / Marking: Red, "FIRE"
-
Mounting: Wall, indoor dry locations
-
Operating Voltage: 16 to 33 VDC or 16 to 33 VFWR
-
Candela: 15 / 30 / 75 cd
-
Flash Rate: About 1 flash per second
-
Dimensions (W x H x D): 3 x 4-5/8 x 1-1/8 in (7.62 x 11.75 x 2.86 cm)
-
Wire Size: 12–18 AWG
-
Operating Environment: 32°F to 122°F; 0–93% RH non-condensing
Compatibility
Synchronized operation needs a separately installed synchronization device. Check the control unit or booster compatibility list. Do not use this appliance where signal power is cycled on and off, such as coded or private-mode systems.
