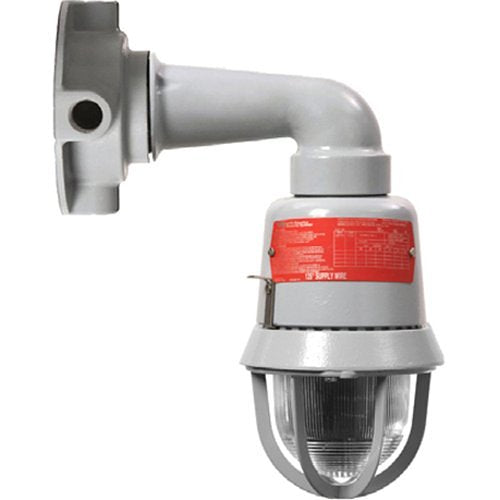

116EX-B is the wall bracket mounting elbow for the 116 Class hazardous location strobe (116DEGEX-FJ). It is one of the mounting options for the modular 116 Class strobe and is used to wall-mount the strobe housing and globe assembly. In the manufacturer's wall mount drawing, the elbow sits on a 116EX-C mounting module fixed to the wall.
Specifications
| Part number |
116EX-B |
| Description |
Wall bracket mounting elbow |
| For use with |
116DEGEX-FJ hazardous location strobe |
| Hub |
3 in. hub, secured with set screws |
| Strobe listing when assembled with a mounting option |
UL Listed for Class I Div. 1 Groups C and D; Class I Div. 2 Groups A, B, C and D; Class II Div. 1 Groups E, F and G; Class II Div. 2 Groups F and G; Class III Div. 1 and 2 |
| Strobe rated output, wall |
60 cd (UL 1971); 51 cd with guard installed |
Compatibility and installation notes
- The 116DEGEX-FJ strobe configures for pendant, ceiling or wall mounting by choosing a mounting module: 116EX-C (ceiling or wall), 116EX-P (pendant) or 116EX-B (wall elbow).
- For wall mounting, the drawing shows the 116EX-B elbow on a wall-mounted 116EX-C module with 3/4 in. conduit entries.
- The 116 Class strobe threads onto its mounting module and is locked with set screws.
Related models
-
Kidde 116EX-C ceiling/wall mounting module
- 116EX-P pendant mounting module, 3/4 in. NPT
- 116DEGEX-FJ explosionproof strobe
- 116-GRD lens guard and 116-GLOBE replacement globe
Documents
Specifications from data sheet E85001-0624 Issue 1.1 (Walter Kidde Portable Equipment, 2025). Manufacturer specifications are subject to change.
