Gamma Electronics PLN-AL-50-RED-CL-500 Armor-Clad, Aluminum-Shielded Coaxial Air-Core Cable, Red Jacket, 500 FT Drum

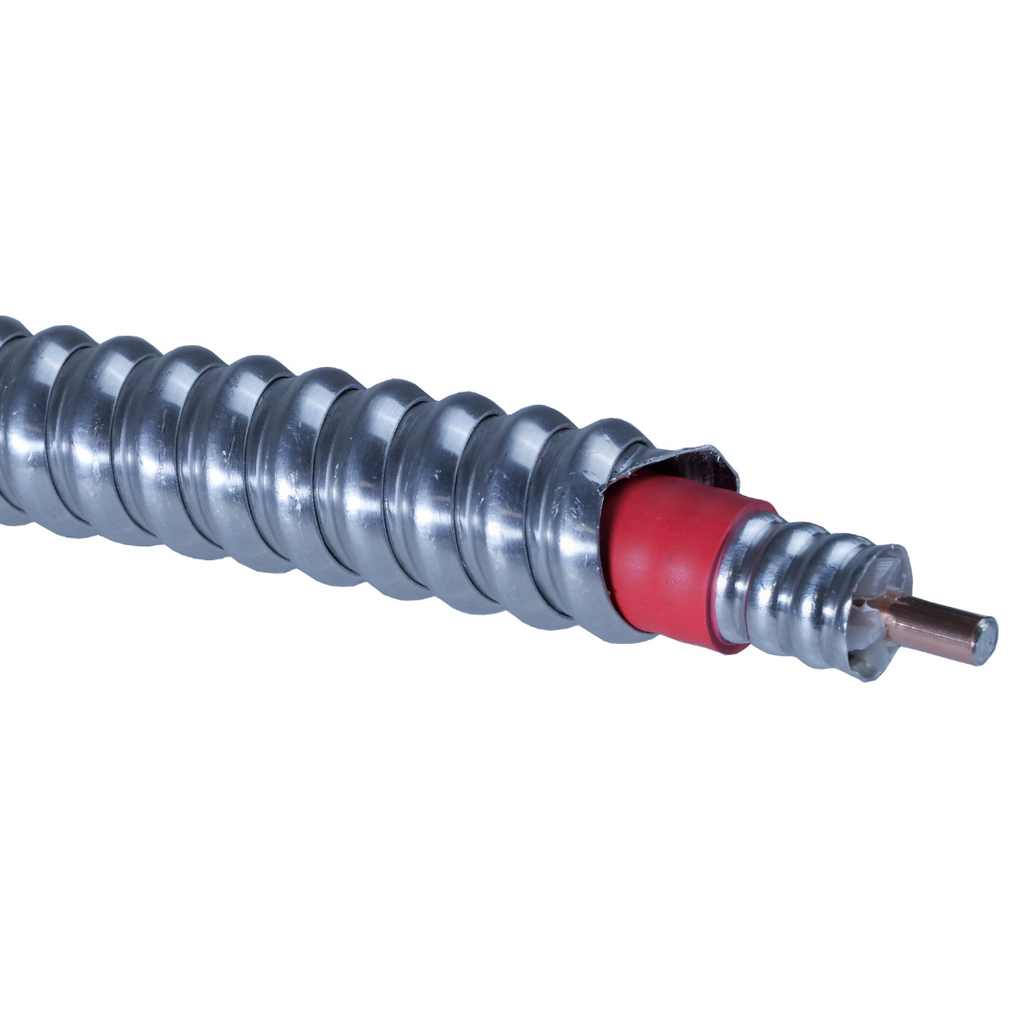

PLN-AL-50-RED-CL-500 is a 500 ft spool of Gamma ArmorFLEX cable: a red, plenum-rated 1/2" air-core coaxial cable with a ring-corrugated aluminum outer conductor and an added aluminum armor layer. It is intended for RF distribution such as in-building DAS, cellular and base-station runs. The datasheet lists a plenum (CMP/CATVP, NFPA 262) flame rating and references NFPA 72 pathway survivability level 1.
Key Features
- Armor-clad (aluminum armor) over a PVC-jacketed, aluminum-shielded air-core coax
- Flame retardant, plenum rated: CMP/CATVP/NFPA 262; ETL Listed to UL 444; CSA C22.2 FT6
- Datasheet references NFPA 72 section 12.4.2 pathway survivability level 1 and NEC 330.30(B), (C), (D.3)
- VSWR 1.25 (-20 dB return loss) in the 700-894, 806-960 and 1700-2200 MHz bands
- RoHS / California Proposition 65 and REACH-SVHC compliant
- Red jacket, 500 ft spool
Specifications
| Impedance |
50 +/- 2 ohms |
| Propagation velocity |
88 % |
| Peak power rating |
40 kW |
| Jacket spark-test voltage |
5000 Vrms |
| Insulation resistance |
10 MOhm-km |
| Inner conductor |
Copper-clad aluminum, 4.80 mm |
| Insulation |
Polyethylene spline, 11.80 mm |
| Outer conductor |
Ring-corrugated aluminum, 13.80 mm |
| Jacket |
PVC, 16.00 mm |
| Armor |
Aluminum, 24.0 +/- 0.5 mm |
| Weight (cable and shielding) |
0.345 kg/m |
| Minimum bending radius |
76 mm single / 127 mm repeated |
| Tensile strength |
549 N |
| Recommended maximum clamp spacing |
1.8 m |
Compatible With
- In-building DAS / public-safety BDA coaxial runs
