MMF-300 — addressable monitor module for one zone of normally-open dry-contact initiating devices, for use on the SLC of Fire•Lite intelligent addressable fire alarm control panels.

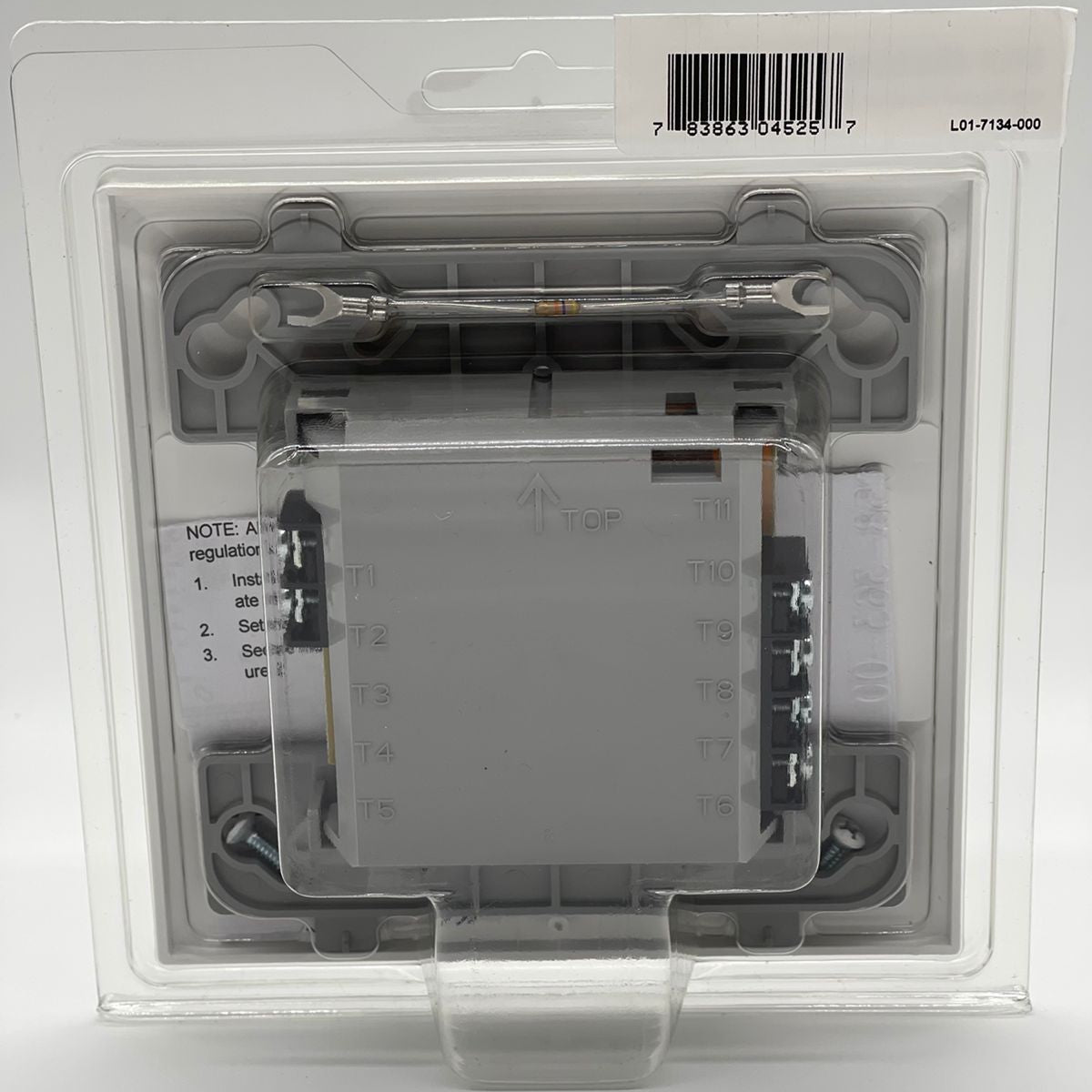

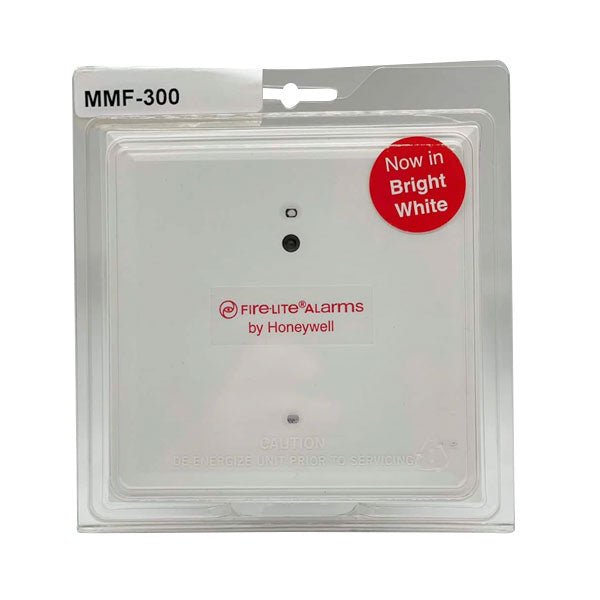

The MMF-300 is the full-size monitor module in the Fire•Lite addressable range. It mounts in a standard 4.0" (10.16 cm) box and ships with a plastic cover plate and an end-of-line resistor. Unlike the miniature MMF-301, the MMF-300 includes an LED and can be configured for either a Class B or a Class A initiating device circuit, which is what makes it the module of choice where the IDC wiring must be Class A or where a local polling indication is wanted at the module. It supervises a circuit of normally-open dry-contact devices such as conventional heat detectors, pull stations, waterflow switches and tamper switches, and reports that circuit’s status to the panel under its own address.
Specifications
| Function |
Addressable monitor module for one zone of normally-open dry-contact initiating devices |
| IDC configuration |
May be configured for either a Class B or a Class A IDC |
| Indication |
Includes an LED (the miniature MMF-301 excludes it) |
| Addressing |
Rotary switches for addressing; device capacity is panel dependent |
| Mounting |
Mounts in a standard 4.0" (10.16 cm) box; surface mount using the SMB500 |
| Supplied with |
Plastic cover plate and end-of-line resistor |
| End-of-line resistor |
47k ohm assembly (R-47K), included with the module |
| Wiring |
Connects with screw terminals (the MMF-301 connects with wire pigtails instead) |
Installation notes
-
Do not substitute the MMF-301: the miniature MMF-301 excludes the LED and the Class A option and connects with wire pigtails. If the drawings call for a Class A IDC or a module LED, only the full-size MMF-300 will do.
-
Surface mounting: the SMB500 is used to mount all modules except the MMF-301 and M301, so it is the correct surface backbox for the MMF-300.
-
End-of-line resistor: the 47k ohm assembly supervises the MMF-300 module circuit and is included with each module — do not fit the 3.9k ohm assembly, which belongs to the MMF-302.
-
Dry contacts only: this module monitors normally-open dry-contact devices. To monitor a zone of conventional two-wire smoke detectors, use the MMF-302, which requires resettable 24 VDC power.
-
Box depth: plan for a standard 4.0" square box; confirm depth against the module installation sheet before rough-in.
Related models
-
MMF-301 — miniature version of the MMF-300. Excludes the LED and the Class A option, connects with wire pigtails, and may mount inside a device backbox.
-
MDF-300 — dual monitor module; the same as the MMF-300 except that it provides two Class B-only IDCs.
-
MMF-302 — similar to the MMF-300 but monitors one zone of conventional two-wire detectors; requires resettable 24 VDC power and is supervised by a 3.9k ohm end-of-line assembly.
-
MMF-300-10 — ten-input monitor module; mounts one or two modules in a BB-2F cabinet, or up to six on a CHS-6 chassis in a BB-6F cabinet.
-
MMF-300A — Canadian version of the module.
Specifications taken from the Fire•Lite Alarms data sheet "ES-200X Series Intelligent Addressable Fire Alarm Control Panels," document DF-60957:F (5/28/2025), which lists the MMF-300(A) module and its accessories. Detailed electrical ratings are published in the MMF-300 Series data sheet DF-52121, which was not retrievable from the manufacturer at the time of writing and has therefore been omitted here rather than reproduced from a secondary source. Manufacturer specifications are subject to change without notice.
