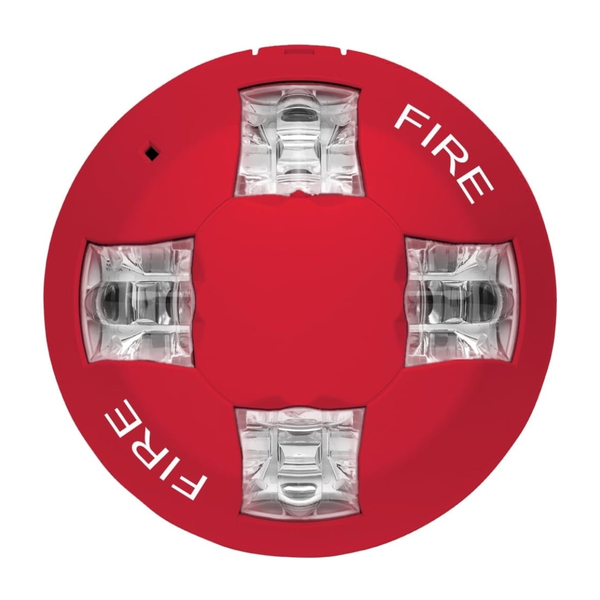

Edwards GCFR-VM — Genesis Series ceiling strobe, red housing with FIRE marking and a clear lens, field-selectable to 15, 30, 75 or 95 candela.
Genesis ceiling strobes are low-profile visible appliances for indoor life safety use. The candela switch is reached by unlatching and twisting the cover open, so output can be changed without taking the device down, and the setting stays readable through a window once the cover is closed.
- Listed to UL 1971, UL 1638 and ULC S526; selectable 15, 30, 75 or 95 cd
- Regulated 16 to 33 Vdc or 16 to 33 Vfwr
- Typical current at 24 Vdc: 63, 90, 168 and 194 mA across the four settings
- One flash per second, synchronized within 10 milliseconds by SIGA-CC1S, SIGA-MCC1S, SIGA-CC2A, SIGA-MCC2A or G1M-RM
- 6.8" (173 mm) diameter; fits a 4" square box 2-1/8" deep, no extension ring
- Indoor use, 32 to 120°F, 0 to 93% RH; #18 to #12 AWG terminals
Check the suffix. GCF-VM is the same strobe in white, GC-VM white without marking, and GC-VMH and GCF-VMH are the high-output 95/115/150/177 cd models. GCFR-HDVM is the red FIRE ceiling horn-strobe, not a strobe alone.
