| Rated Strobe Output (cd) |
964/965-5A-8RW 964/965-7A-8RW 964/965-3A-8RW 964/965-4A-8RW 964/965-8A-8RW |
| UL 1638/ULC S526 Rated Strobe |
15cd 15/75cd 30cd 75cd 110cd |
| UL 1971 Rated Strobe Output (cd) |
15cd 15cd 30cd (wall) 75cd (wall) 110cd (wall) (wall only) (wall or ceiling) 15cd (ceiling) 60cd (ceiling) 60cd (ceiling) |
| Output: Input/Operating Volts |
Speaker: 25 VRMS (964 Series) or 70 VRMS (965 Series) - see ordering table Strobe: 16-33 Vdc Continuous |
| Speaker Taps/Output (note 1) |
Measured at 10 ft (3.05 m): 4W = 88 dBA, 2W = 85 dBA, 1W = 82 dBA, 1/2W = 79 dBA |
| Output: Strobe Flash Synchronization |
Synchronized at one flash per second. External control module necessary to meet UL 1971 synchronization requirements of 10 milliseconds over a two-hour period. |
| Output: Synchronization Sources |
G1M-RM, SIGA-CC1S, SIGA-MCC1S, BPS6A, BPS10A |
| Output: Strobe Lens Markings |
Supplied with LKC-1 “FIRE” red letters, horizontal both sides (Ceiling Mount) - see LKW and LKC series for wall mount style and optional markings |
| Output: Flash Tube Enclosure |
Clear LEXAN with snap-on white markings sleeve |
| Output: Speaker Cone |

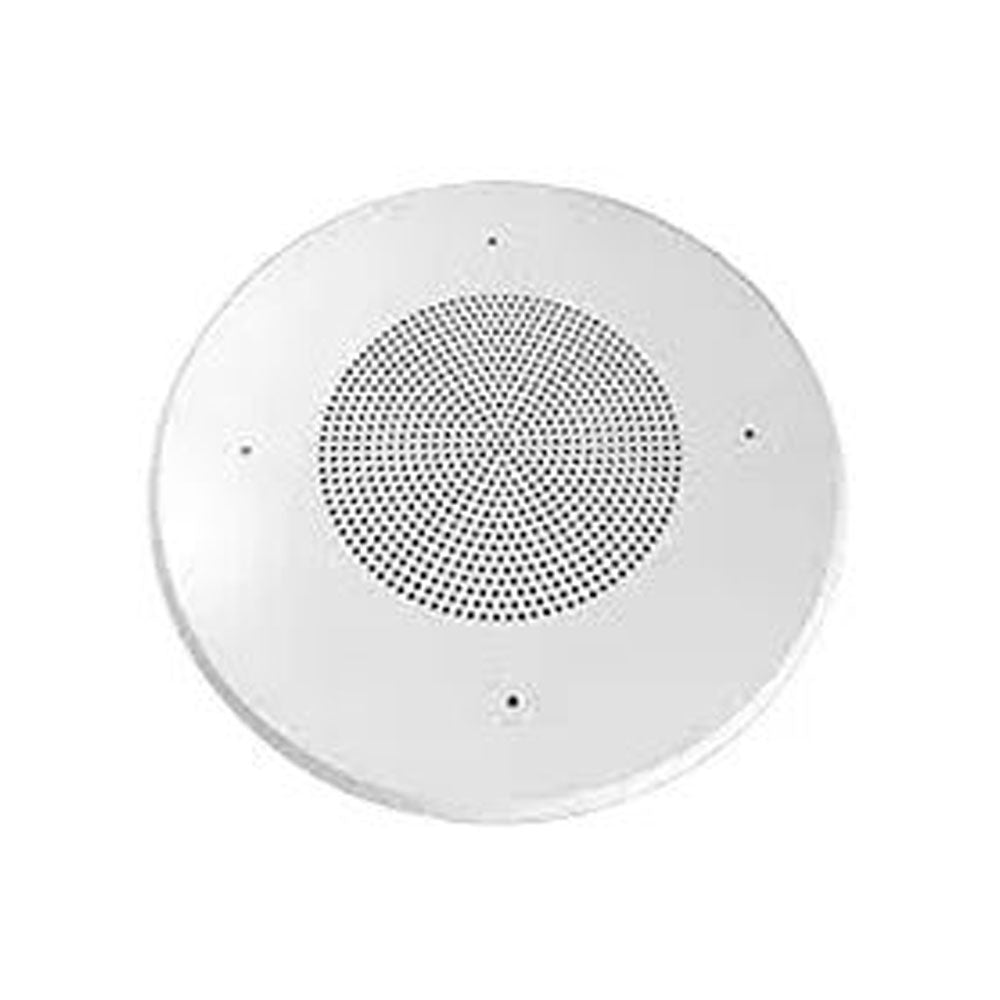

8” (200 mm) cone rated for 5 watts, 8 ohm voice coil, 152 gram (5.36 oz) ceramic magnet |
| Output: Response |
100 Hz - 8 KHz +/- 5 dB |
| Output: Baffle |
Steel, baked epoxy polyester powder-coat finish - WHITE |
| Output: Wire Connections |
Terminals (polarized) for Speaker - #14 AWG (1.95 mm²) maximum. Color-coded polarized wire leads for strobe (2-INs/2-OUTs). |
| Output: INDOOR Operating Environment |
32-120° F (0-49° C) ambient temperature. 85% relative humidity @ 30° C. |
