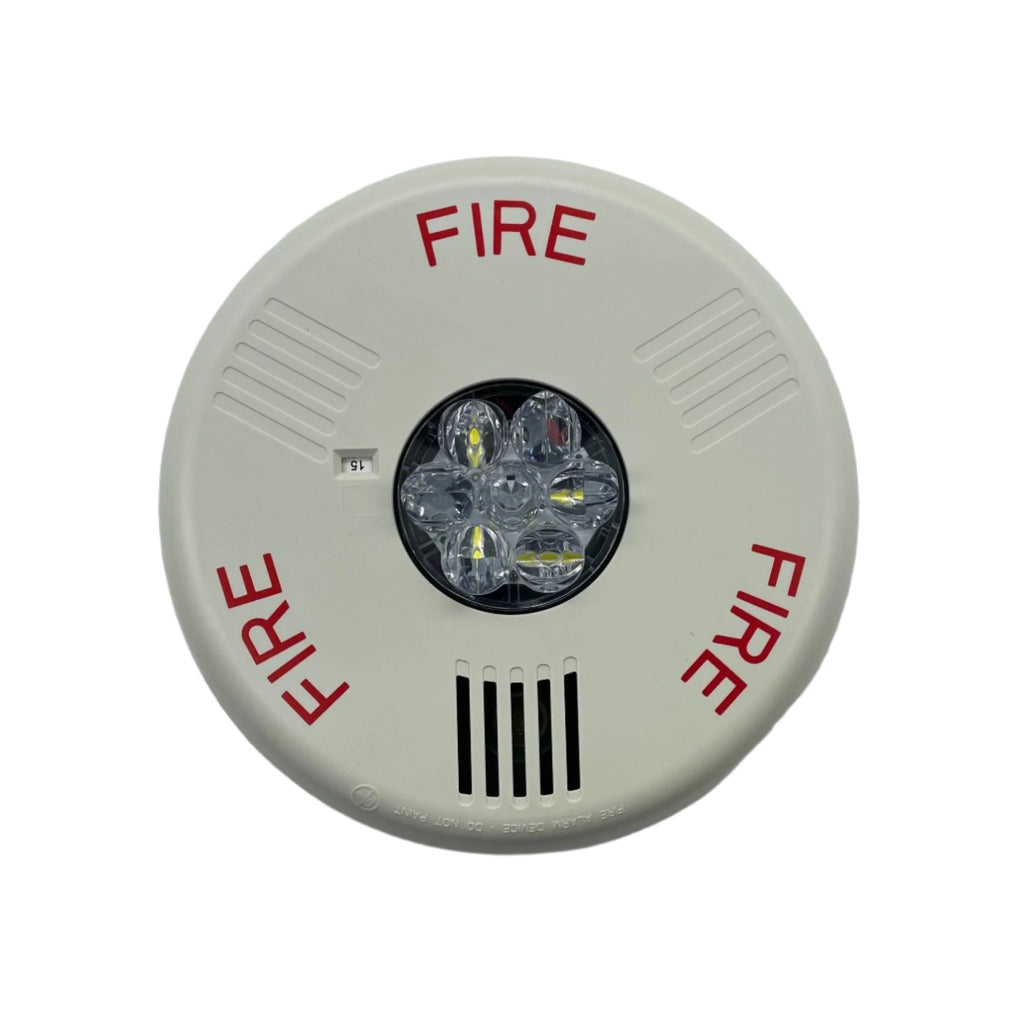

Eaton Wheelock ELHSWC is an Eluxa LED ceiling-mount horn strobe: white housing, clear lens, FIRE lettering, six field-selectable candela settings, 24 V indoor.
The trailing C is the ceiling marker in the Eluxa ordering table. Ceiling units carry a different candela ladder from wall units: they end at 150 and 177 cd where wall models run to 135 and 185 cd, so the two are not interchangeable on a layout drawn for either. Strobes synchronize with Wheelock DSM sync modules, PS power supplies or SAFEPATH products.
Features
- Ceiling mount only; 15, 30, 75, 110, 150 and 177 cd field-selectable
- Horn patterns Continuous, T3 and T3/T4, each at high or low volume
- 80 dBA high and 78 low, reverberant at 10 ft per UL 464; 91 and 86 anechoic per ULC-S525, at 24 V
- 0.035 A at 15 cd to 0.177 A at 177 cd on 24 VDC with the horn on high; 0.064 to 0.310 A on FWR
- 16 to 33 VDC or VFWR; indoor use, 32 to 122 °F; 20 ms flash duration per NFPA 72 2016

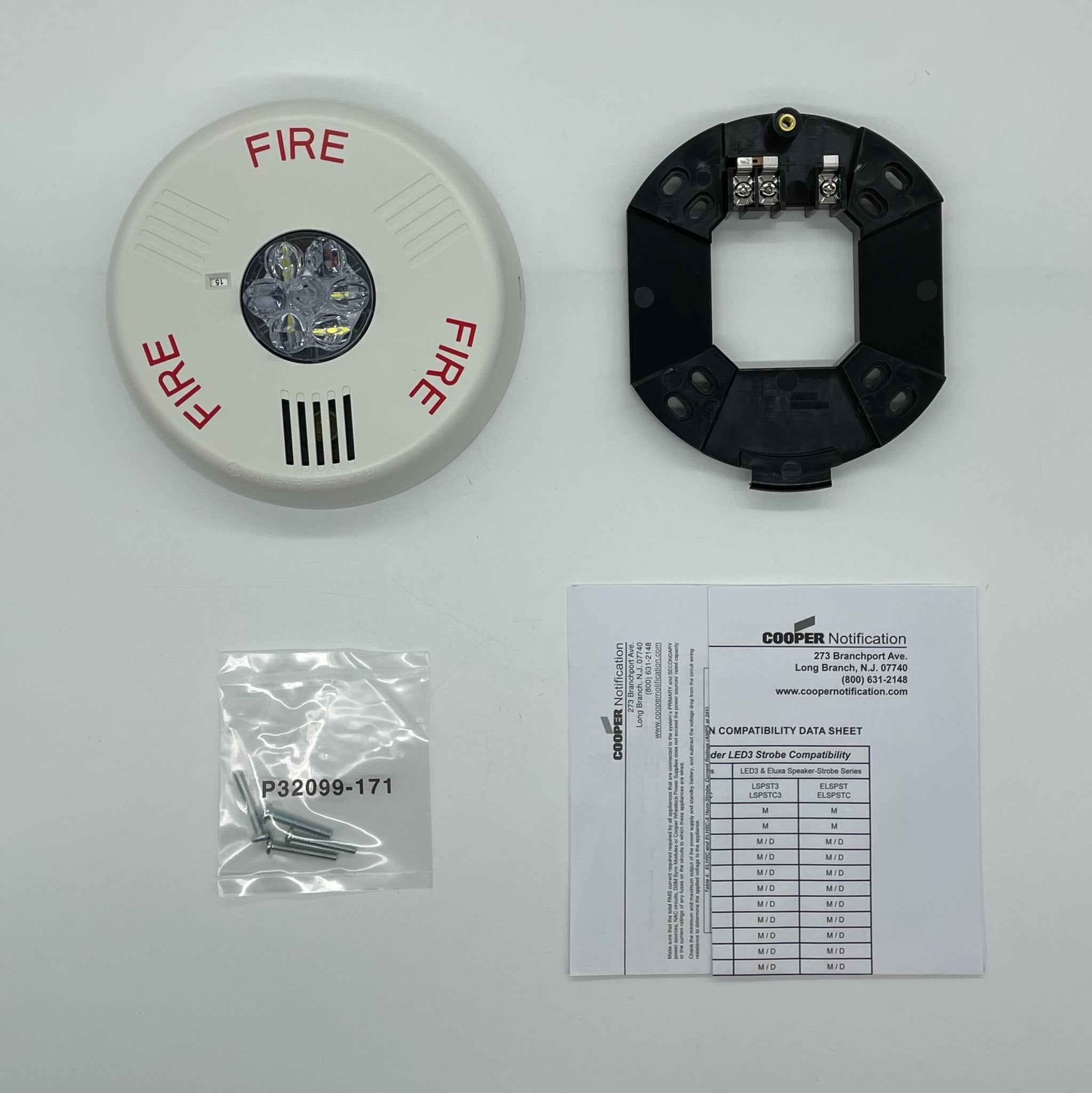

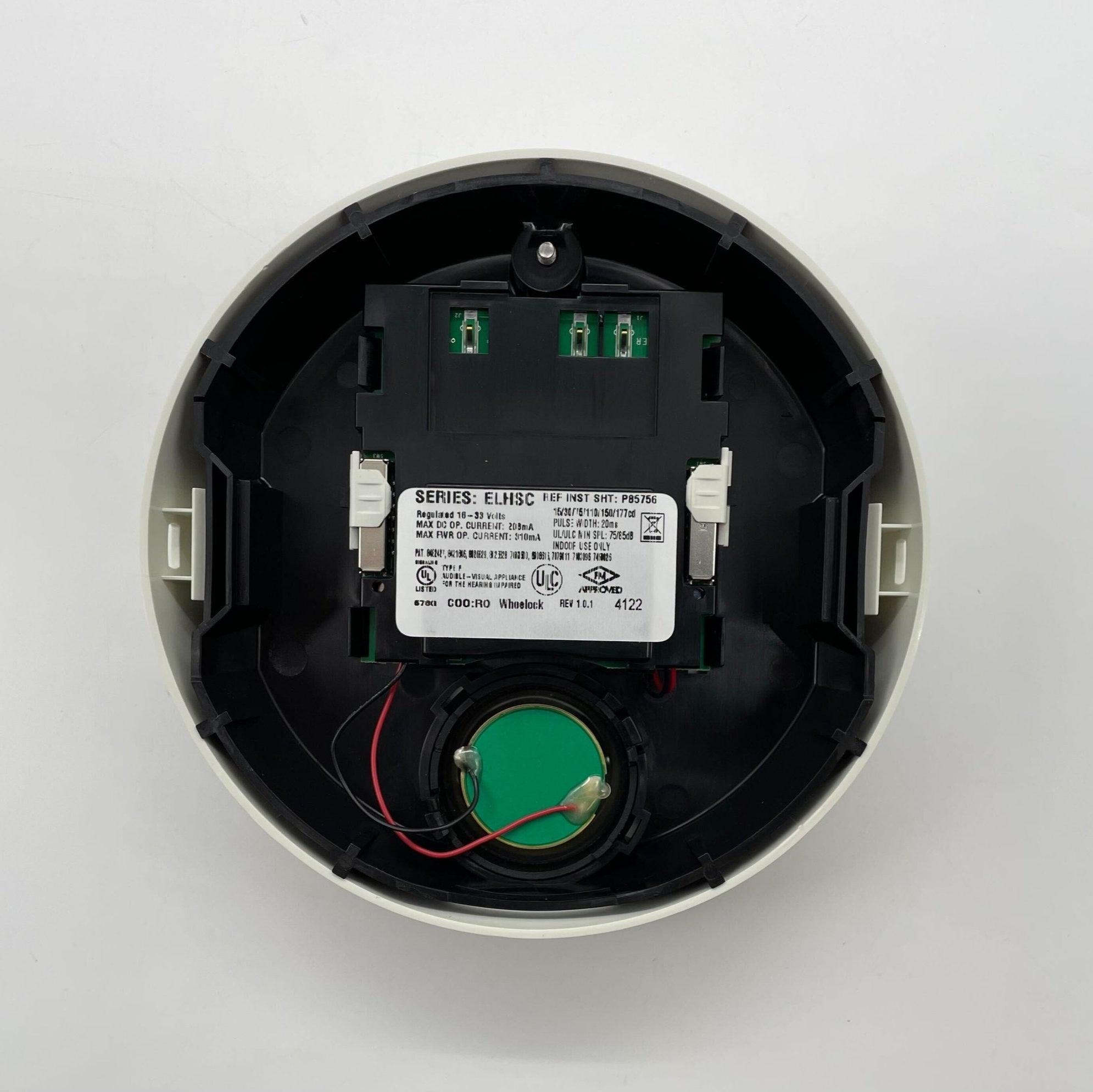

- Mounting plate included; wire connections #12 to #18 AWG
Specifications
| Model |
ELHSWC |
| Mounting |
Ceiling |
| Housing / lens |
White / clear, FIRE lettering |
| Dimensions |
6.27 in. diameter x 1.69 in. deep |
| Weight |
0.55 lb |
| Standards |
UL 1971, UL 1638, UL 464, ULC-S525, ULC-S526 |
Compatibility
Mount to an LSPKBB-CW ceiling backbox or a 4 in. square or 4 in. octagonal box, 1-1/2 or 2-1/8 in. deep. Eaton certifies the Eluxa line as compatible with panels and accessories determined compatible with Wheelock RSS strobe products, and Eluxa strobes can share a notification zone and field of view with RSS strobes.
Related Eluxa models
-
ELHSRC is the identical ceiling horn strobe in red.
-
ELHSW is the wall model, ending at 135 and 185 cd.
-
ELSTWC is the strobe without the horn.
-
ELHNWC is the horn without the strobe.
-
ELSPSTWC is the ceiling speaker strobe for voice evacuation systems.
- ELHSWC-NA is the amber-lens version with no lettering.
More models: horn strobes and Eaton Wheelock.
FAQ
Can the ELHSWC be mounted on a wall?
No. Eaton specifies the ELHSC ceiling horn strobes for ceiling mount only; use the ELHSW for walls.
Does it work on 12 V?
No. The ELHS horn strobe is for 24 V operation, 16 to 33 VDC or VFWR.
