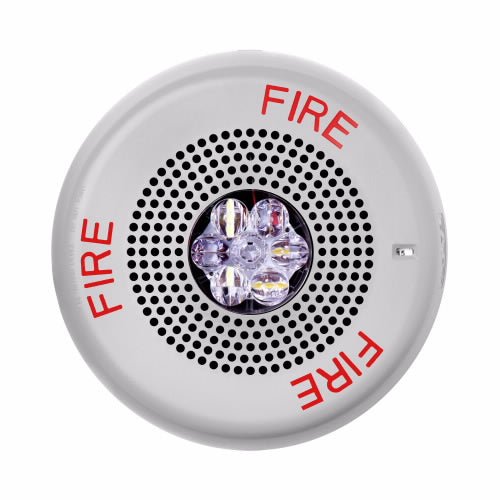

Eaton Wheelock ELSPSTWC is an Eluxa high fidelity LED speaker strobe for ceiling mounting, with a white housing, clear lens and FIRE lettering.
The trailing C is the ceiling marker: Eaton specifies the ELSPSTC series for ceiling mount only, with its own candela ladder and dBA figures, where ELSPSTW is the wall model. The LED strobe flashes on a 20 ms pulse meeting NFPA 72 2016, so it may share a field of view with xenon strobes, and it synchronizes with Wheelock DSM sync modules, PS power supplies or SAFEPATH products.
Features
- Six field-selectable ceiling candela settings: 15, 30, 75, 110, 150, 177 cd
- Strobe current at 24 VDC in that order: 0.017, 0.023, 0.053, 0.079, 0.110, 0.161 A
- Speaker taps 1/8 to 8 W at 70.7 VRMS, 1/8 to 2 W at 25 VRMS; 300 to 8000 Hz
- Reverberant per UL 1480 at 10 ft on 70.7 VRMS, 1/8 to 8 W: 75, 78, 81, 83, 86, 88, 90 dBA
- Mounting plate included; wire connections #12 to #18 AWG
Specifications
| Model |
ELSPSTWC |
| Mounting |
Ceiling only, indoor |
| Housing / lens |
White / clear, FIRE lettering |
| Strobe voltage |
16 to 33 VDC regulated (24 V nominal) |
| Speaker input |
25 or 70.7 VRMS |
| Dimensions |
6.27 in. diameter x 2.29 in. deep |
| Weight |
1.54 lb |
| Temperature |
32 °F to 122 °F, up to 93% humidity |
| Standards |
Speaker UL 1480 and ULC-S541; strobe UL 1638, UL 1971, ULC-S526 |
Compatibility
Eaton certifies the Eluxa line as compatible with fire alarm control panels and accessories determined compatible with Wheelock RSS strobe products, including the RSS, CH, E, EH, ET, ST, HS, MT, S8, SA, STH and Z series. Ceiling mounting is to an LSPKBB-CW ceiling backbox or a 4 in. square or 4 in. octagonal box, 1-1/2 or 2-1/8 in. deep.
Related models
-
ELSPSTW: wall version, 15/30/75/110/135/185 cd
-
ELSPSTRC: red ceiling model
-
ELSPSTWC-AL: ALERT lettering, clear lens
-
ELSPSTWC-ALA: ALERT lettering, amber lens
-
ELSPKWC: the ceiling speaker without the strobe
-
ELHSWC: Eluxa ceiling horn strobe for horn-based systems
More models: speaker strobes and Eaton Wheelock.
FAQ
Is the ELSPSTWC a ceiling or wall model? Ceiling. The trailing C marks the ceiling version; ELSPSTW is the wall model with a different candela ladder.
Can it be used outdoors? No. It is rated for indoor use only, 32 °F to 122 °F.
