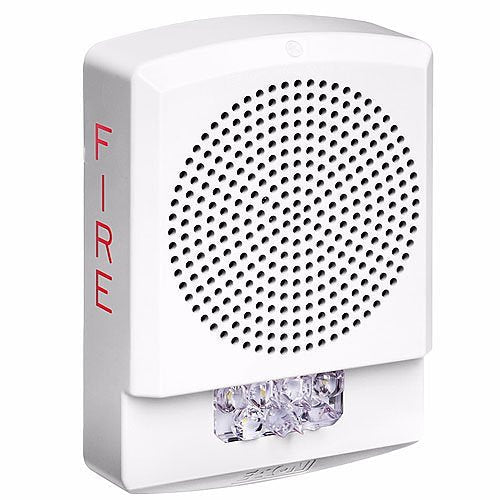

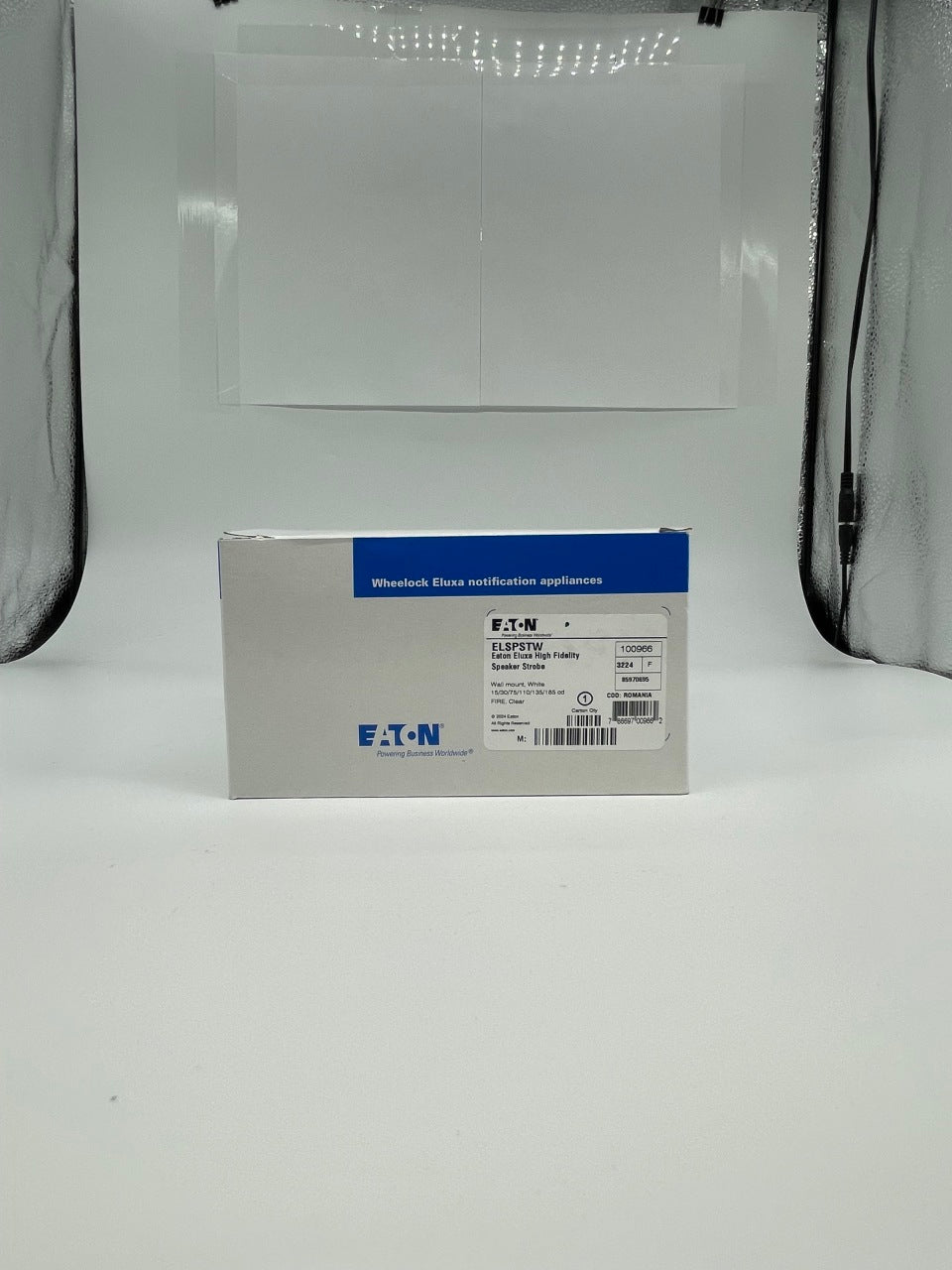

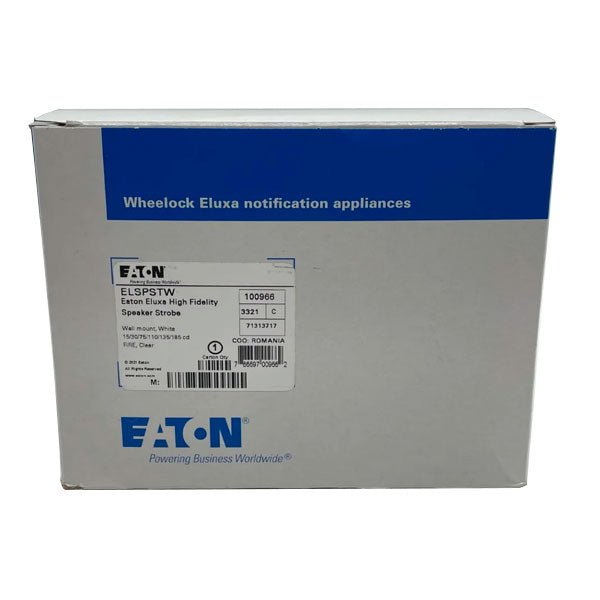

Eaton Wheelock ELSPSTW is an Eluxa LED high fidelity speaker strobe for wall mounting: white, FIRE lettering, clear lens, 24 VDC strobe, with field-selectable candela of 15, 30, 75, 110, 135 and 185 cd. It replaces the E60-24MCW-FW and the LSPSTW3.
The Eluxa speaker strobes combine high fidelity sound with LED strobe technology. A frequency response of 300 to 8000 Hz gives clear voice messages and tone signaling for emergency communications, mass notification, voice evacuation and fire alarm. The low-profile housing has a small footprint, and the LED strobe has low current draw, which can mean fewer power supplies, smaller wire gauge and shorter wire runs.
Features
- Six field-selectable wall candela settings: 15, 30, 75, 110, 135, 185 cd
- Strobe current at 24 VDC in that order: 0.017, 0.022, 0.053, 0.079, 0.106, 0.161 A
- Speaker taps 1/8 to 8 W at 70.7 VRMS, 1/8 to 2 W at 25 VRMS
- Reverberant per UL 1480 at 10 ft on 70.7 VRMS, 1/8 to 8 W: 74, 77, 80, 83, 85, 88, 90 dBA

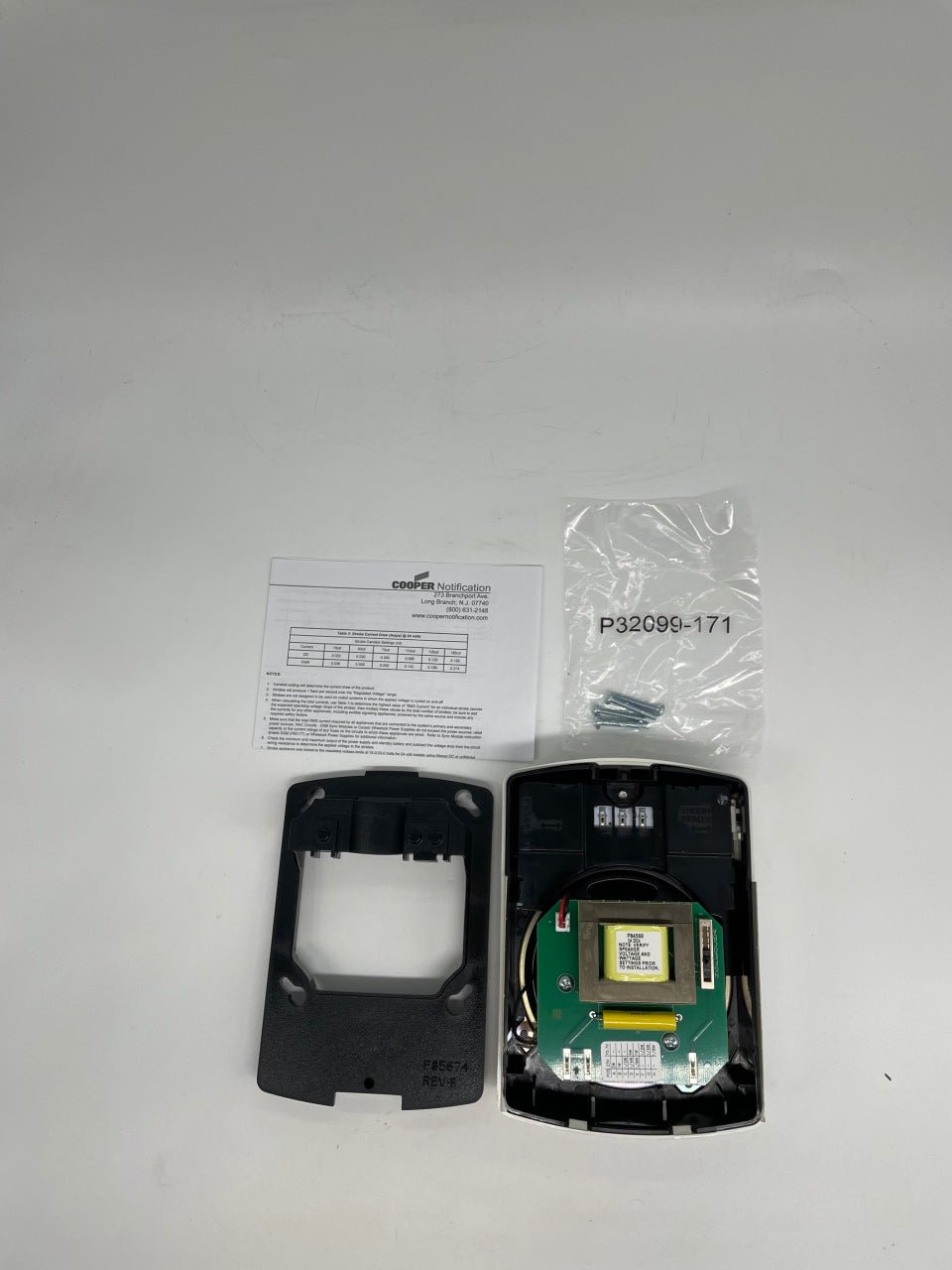

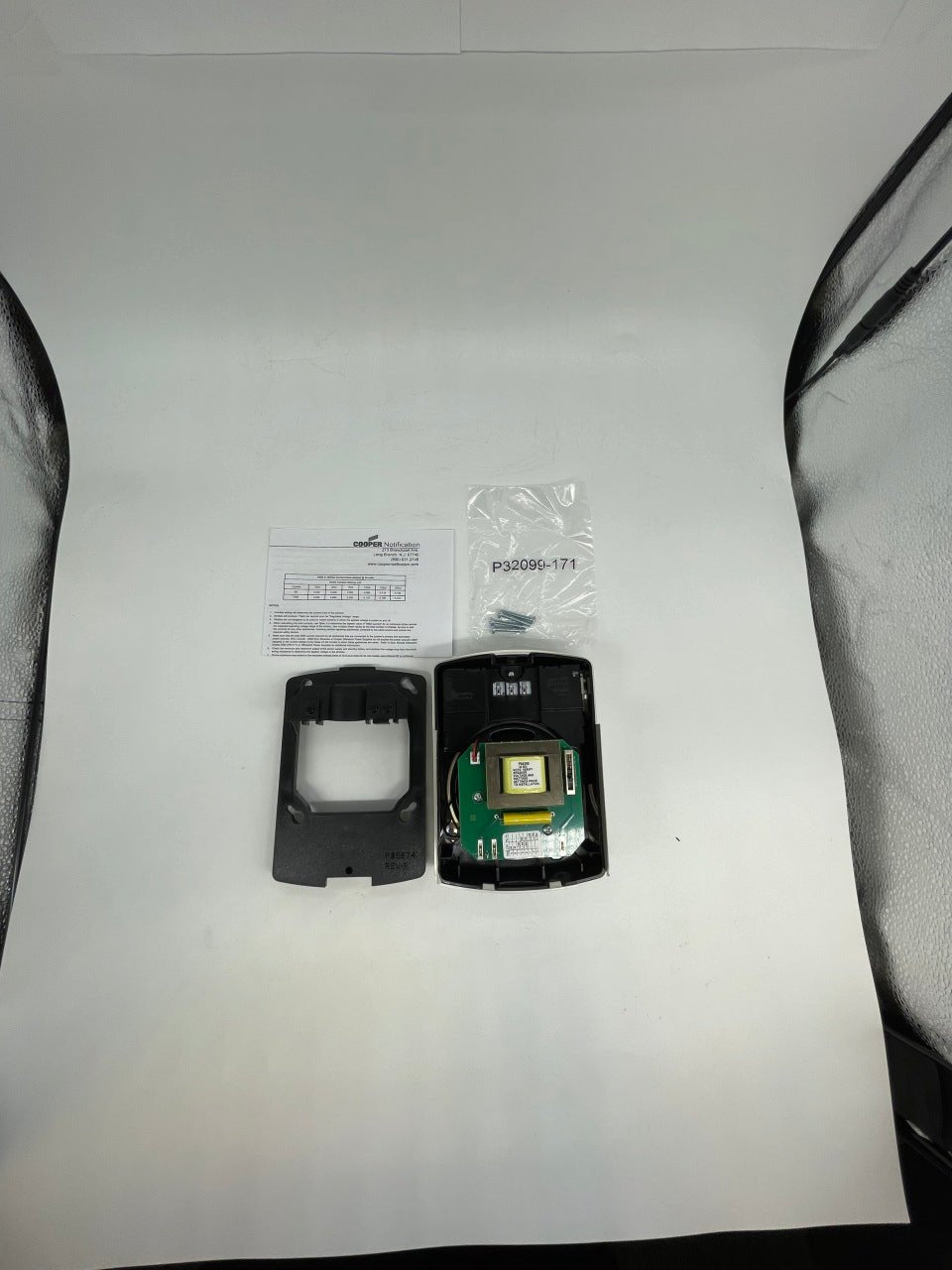

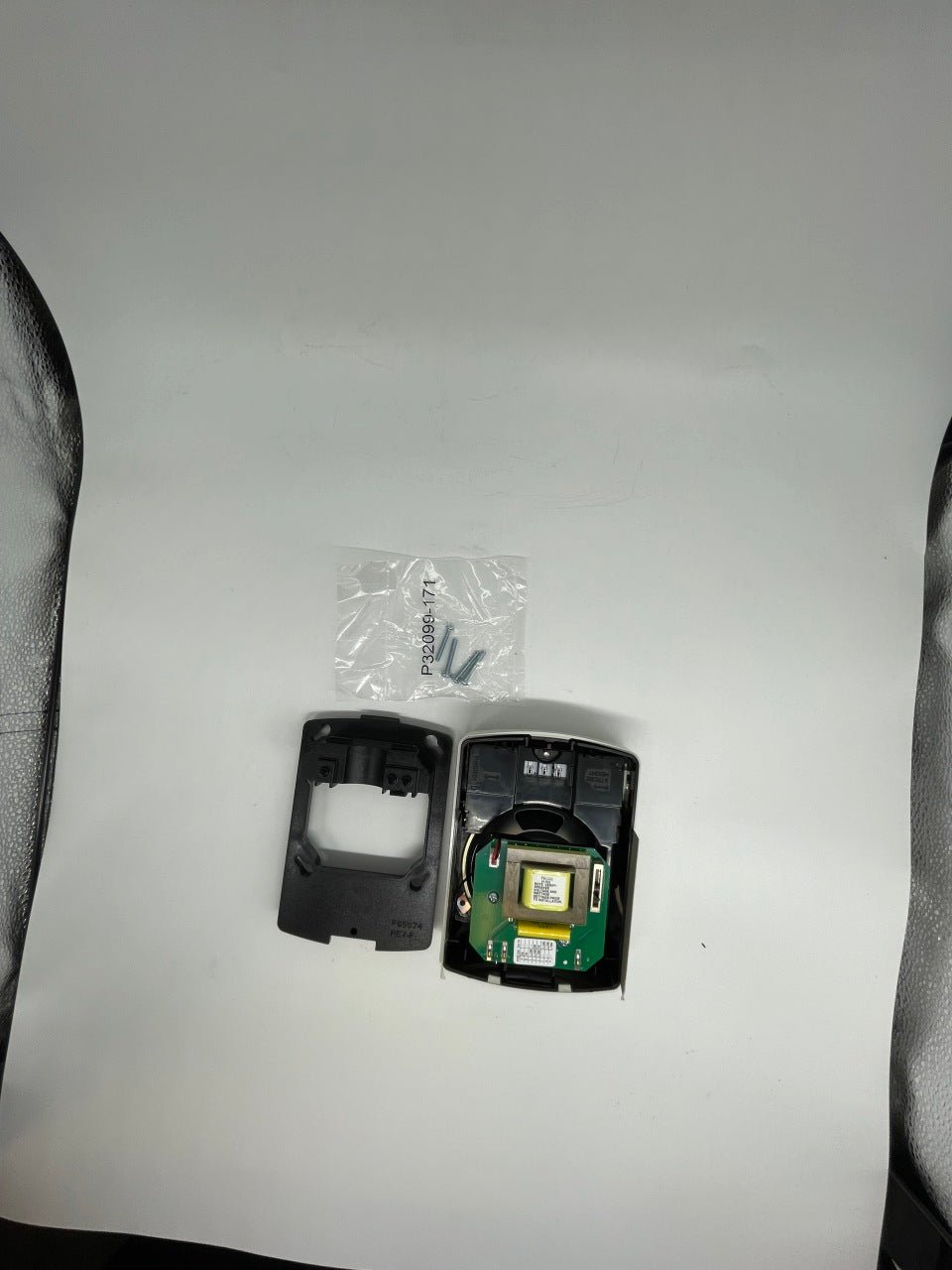

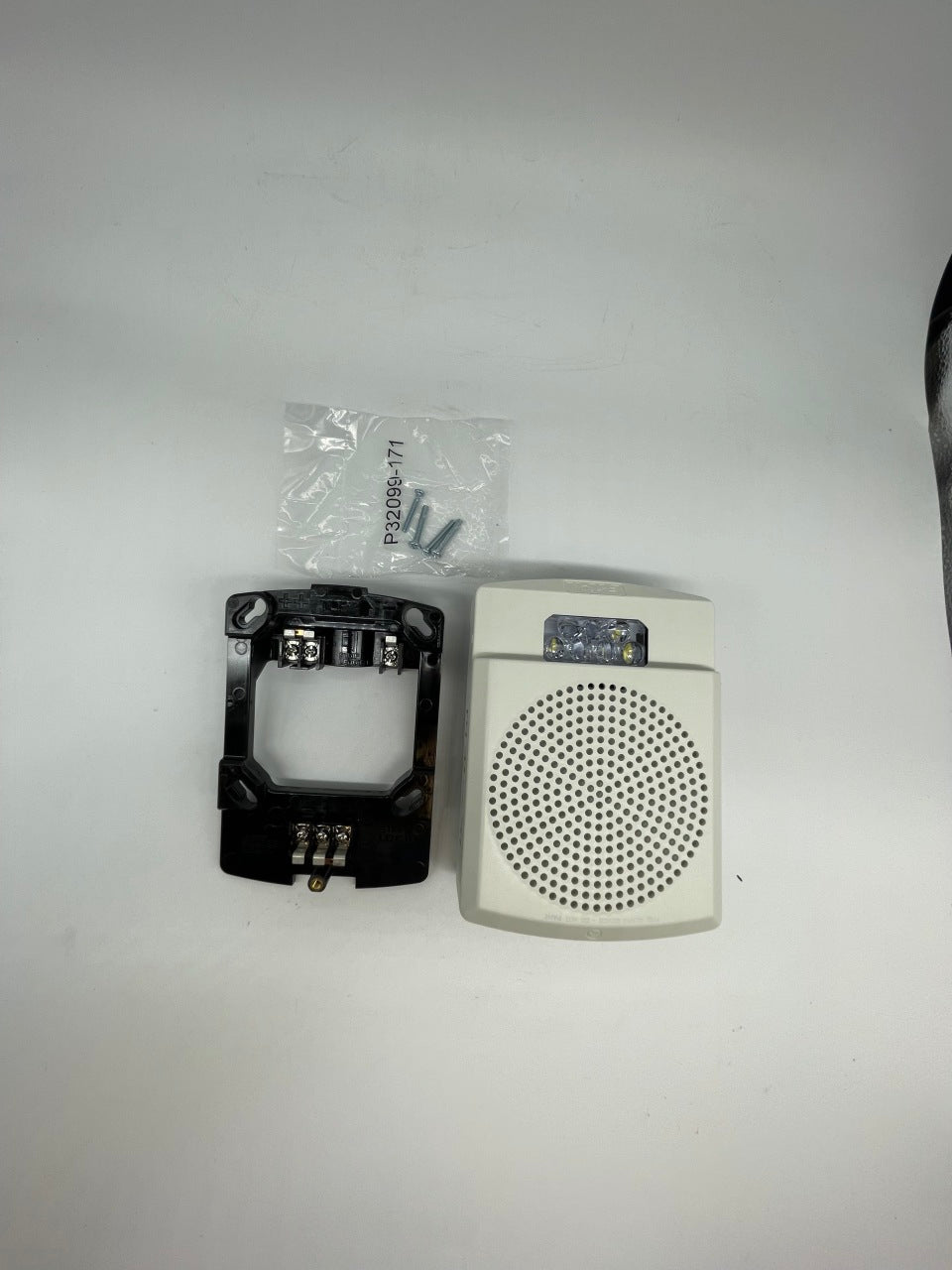

- Pre-wire and pre-test using the hinged mounting plate; settings change without tools
- 20 ms strobe pulse per NFPA 72 2016, so xenon and LED devices can share a field of view
- RoHS compliant, no mercury
Specifications
| Model |
ELSPSTW |
| Replaces |
E60-24MCW-FW, LSPSTW3 |
| Mounting |
Wall only, indoor |
| Color / lettering |
White, FIRE, clear lens |
| Strobe voltage |
24 VDC (16 to 33 VDC regulated) |
| Candela (wall) |
15, 30, 75, 110, 135, 185 |
| Audio |
25 or 70.7 VRMS, 1/8 to 8 W taps (2 W max at 25 V), 300-8000 Hz |
| Dimensions |
6.35 in. H x 4.56 in. W x 1.54 in. D |
| Weight |
1.54 lb |
| Approvals |
UL 1971, UL 1638, UL 1480, CAN/ULC-S526, CAN/ULC-S541 |
Compatibility
The Eluxa line is UL/ULC certified as compatible with fire alarm control panels and accessories determined compatible with Exceder LED3 and Wheelock RSS strobe products, including the RSS, CH, E, EH, ET, ST, HS, MT, S8, SA, STH and Z series. Eluxa strobes can be installed in the same notification zone and field of view as Wheelock RSS strobe models. Wall mounting is to an ELSPKBB-W backbox or a 4 in. square, 2-1/8 in. deep box.
Related models
More models: speaker strobes and Eaton Wheelock.
FAQ
Which panels is the Eluxa ELSPSTW compatible with?
Eluxa is UL/ULC certified as compatible with fire alarm control panels and accessories determined compatible with Wheelock RSS strobe products, including the RSS, CH, E, EH, ET, ST, HS, MT, S8, SA, STH and Z Series.
What back box does it mount to?

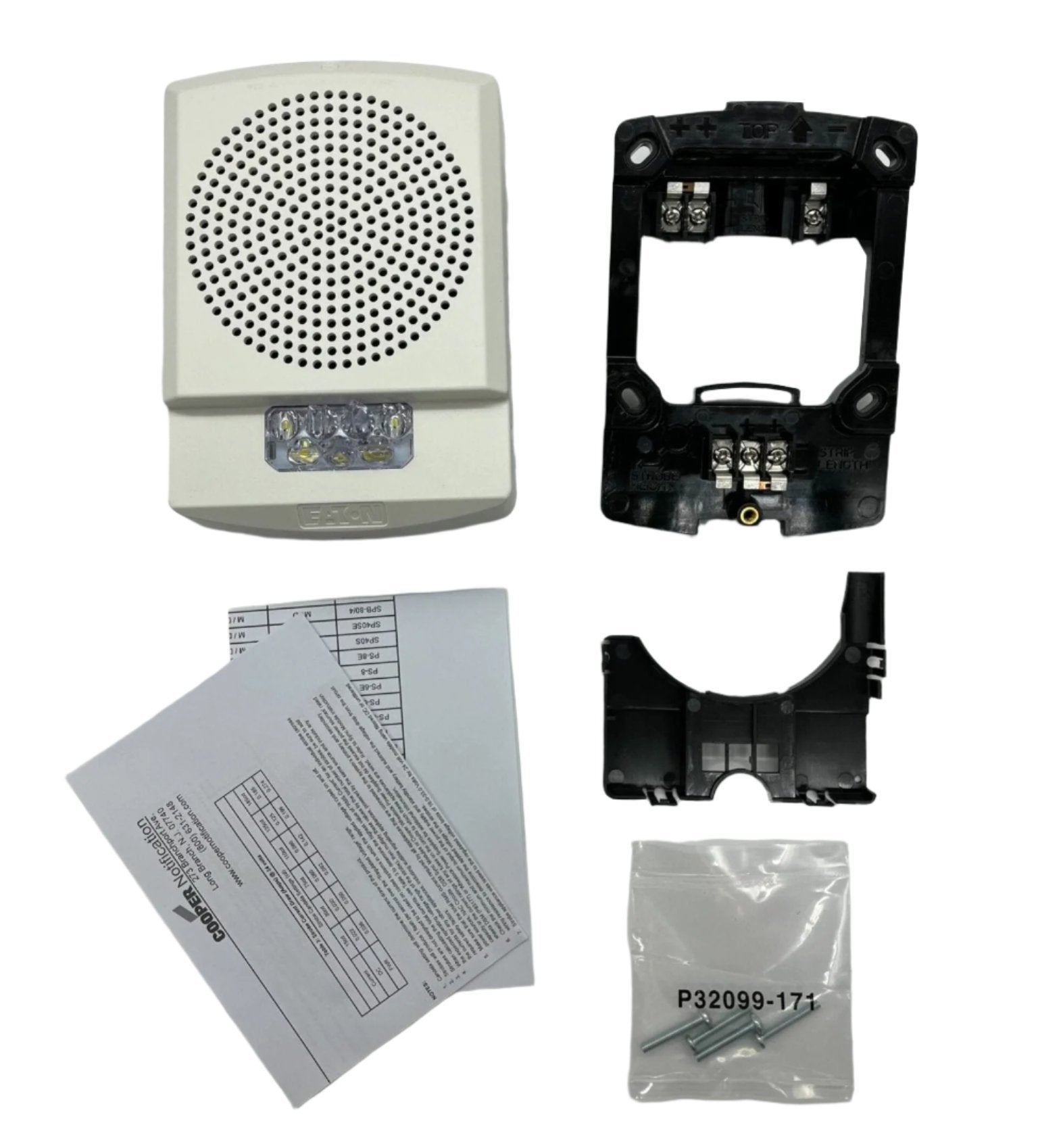

An ELSPKBB wall back box or a 4 in. square, 2-1/8 in. deep box. The mounting plate is included.
Can it be mixed with xenon strobes?
Yes. Eluxa strobes meet the 20 ms pulse duration of NFPA 72 (2016), so they can share a field of view with Wheelock RSS xenon strobes.
How are the strobes synchronized?
With Wheelock DSM sync modules, PS power supplies or SAFEPATH products using the Wheelock sync protocol.
