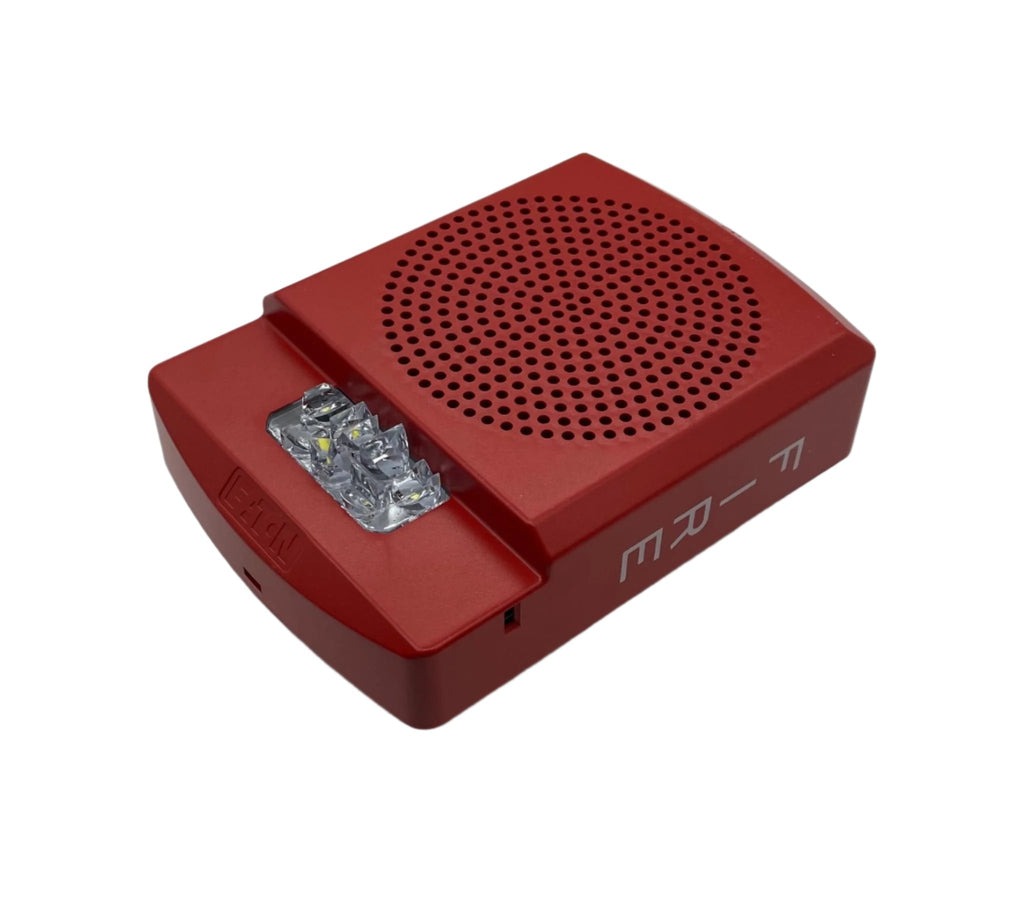

Eaton Wheelock ELSPSTR — Eluxa high fidelity LED speaker strobe, wall mount, red with clear lens and FIRE lettering.
Voice evacuation depends on intelligible speech, not raw volume, so the Eluxa speaker is specified over a 300 Hz to 8000 Hz range. The strobe beside it uses an LED behind a Lexan lens rather than a xenon tube, which lowers current draw. Both halves are set in the field with finger slide switches.
- Six wall candela settings: 15, 30, 75, 110, 135 and 185

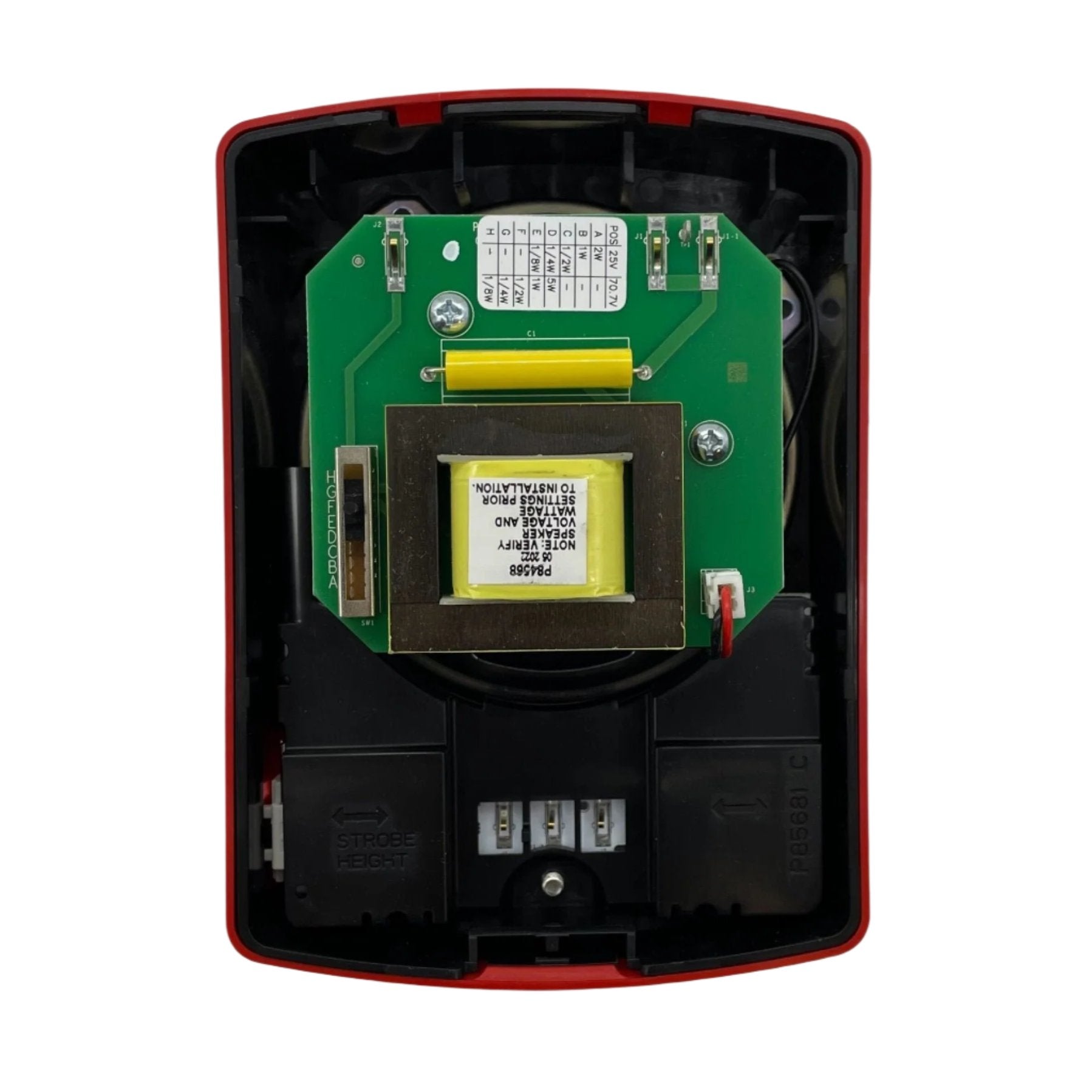

- Field-selectable 25 or 70 Vrms input, with taps from 1/8 W to 8 W at 70.7 Vrms
- Strobe operates from 16 to 33 VDC at 1 flash per second, with the 20 ms flash duration of NFPA 72 2016
- 6.35" high × 4.56" wide × 1.54" deep, in UV-stabilized plastic exceeding UL 94V-0
- UL 1971, UL 1480, ULC-S526 and ULC-S541 certified; the speaker meets the 520 Hz requirement of UL 464
ELSPSTW is the white wall model. ELSPSTRC is the ceiling version and carries a different candela set of 15, 30, 75, 110, 150 and 177. ELSPKR is the speaker with no strobe; ELSPSTR-N and ELSPSTR-AL differ only in lettering.
FAQ
What does the ELSPSTR mount to?

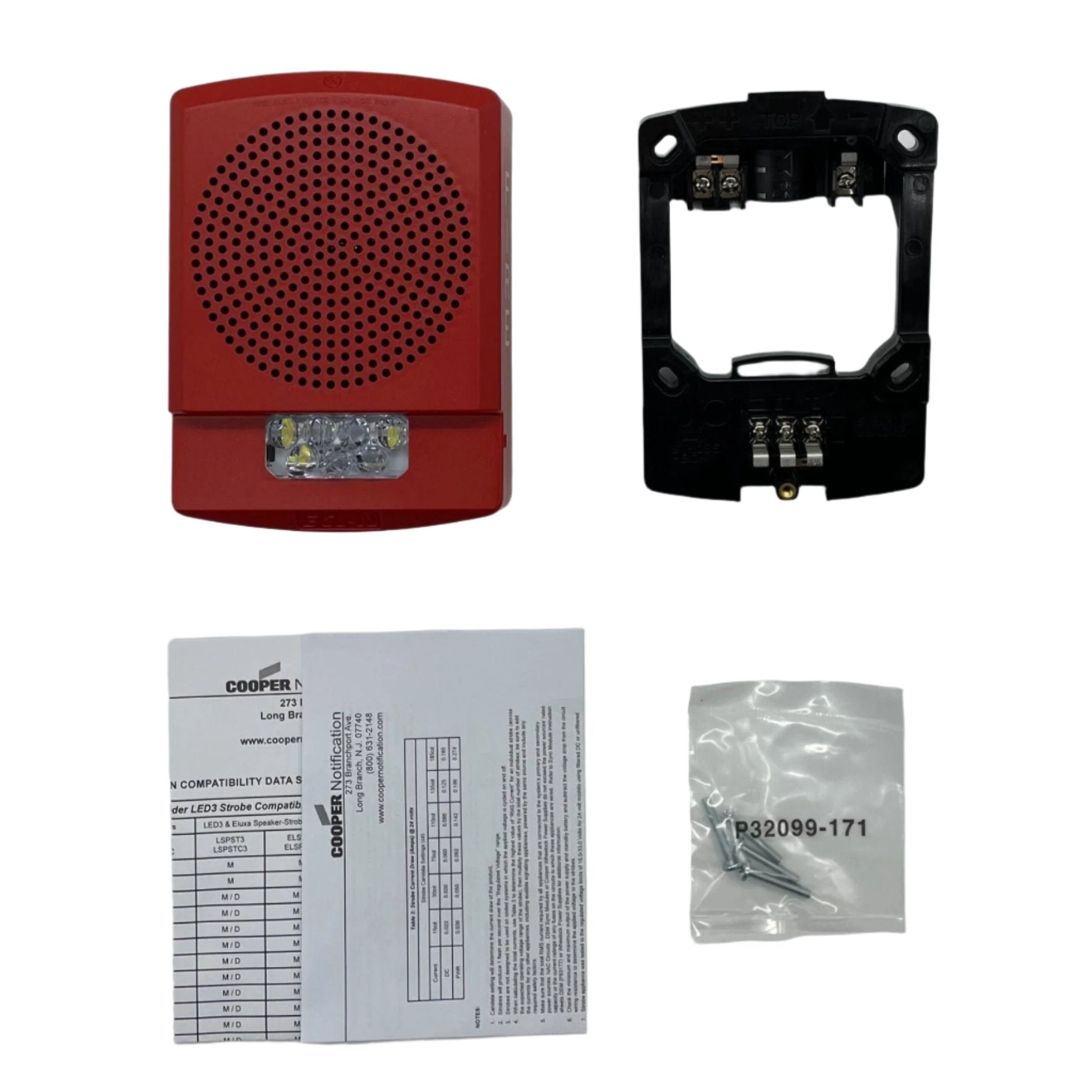

It is wall mount only, on the ELSPKBB backbox or a 4 in. square, 2-1/8 in. deep backbox; a mounting plate is included.
Which speaker taps are available?
Five field selectable taps: 1/8 W up to 8 W at 70.7 V, and 1/8 W up to 2 W at 25 V.
Can it be synchronized with other strobes?
Yes, with Wheelock DSM sync modules, PS power supplies, SAFEPATH products or panels with the Wheelock sync protocol.
Is it suitable for sleeping areas?
The speaker meets the UL 464 low frequency (520 Hz) requirements for NFPA 520 Hz tone signaling in sleeping areas.
