Eaton Wheelock ELSPKW — Eluxa high fidelity wall speaker, white with FIRE lettering, audible only with no strobe.

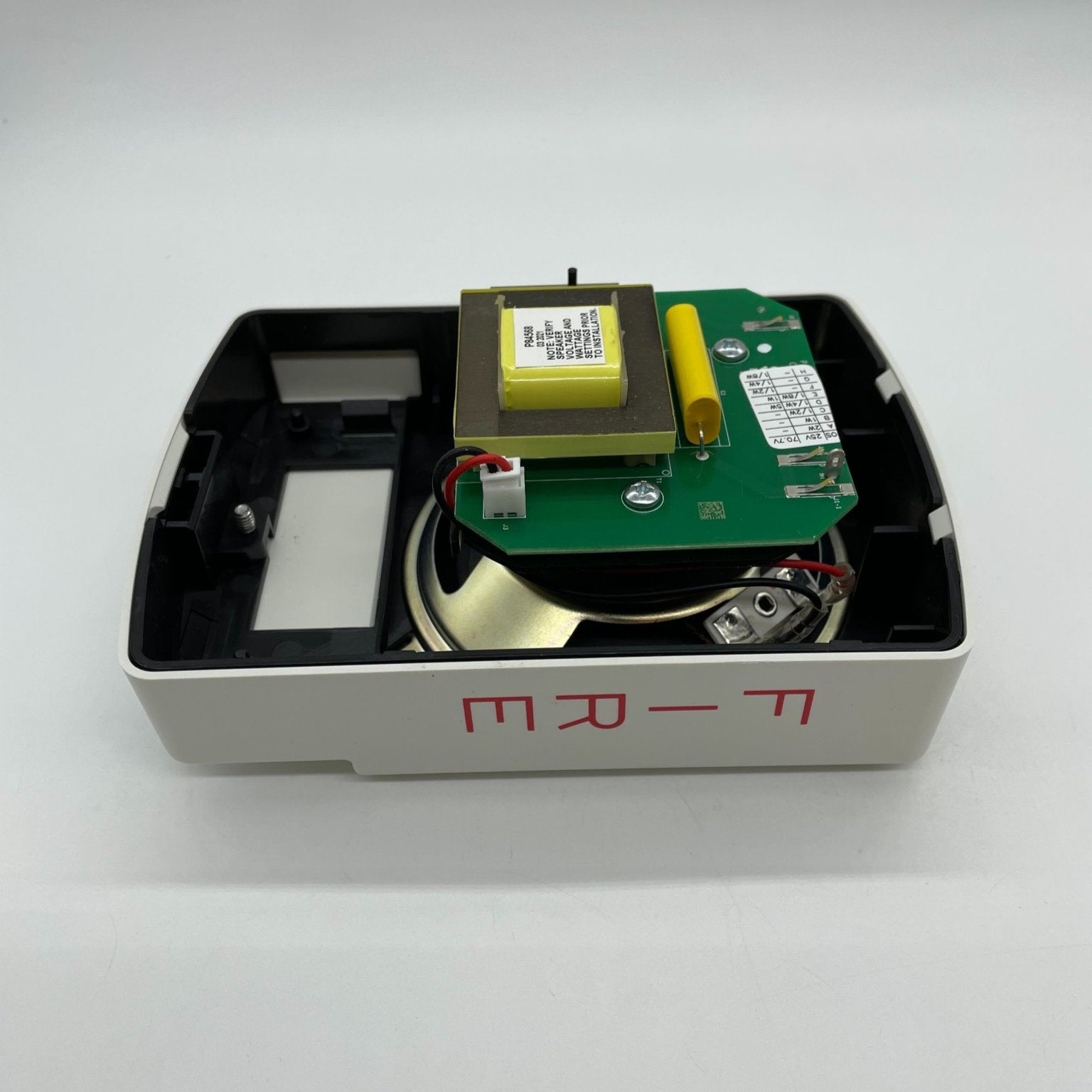

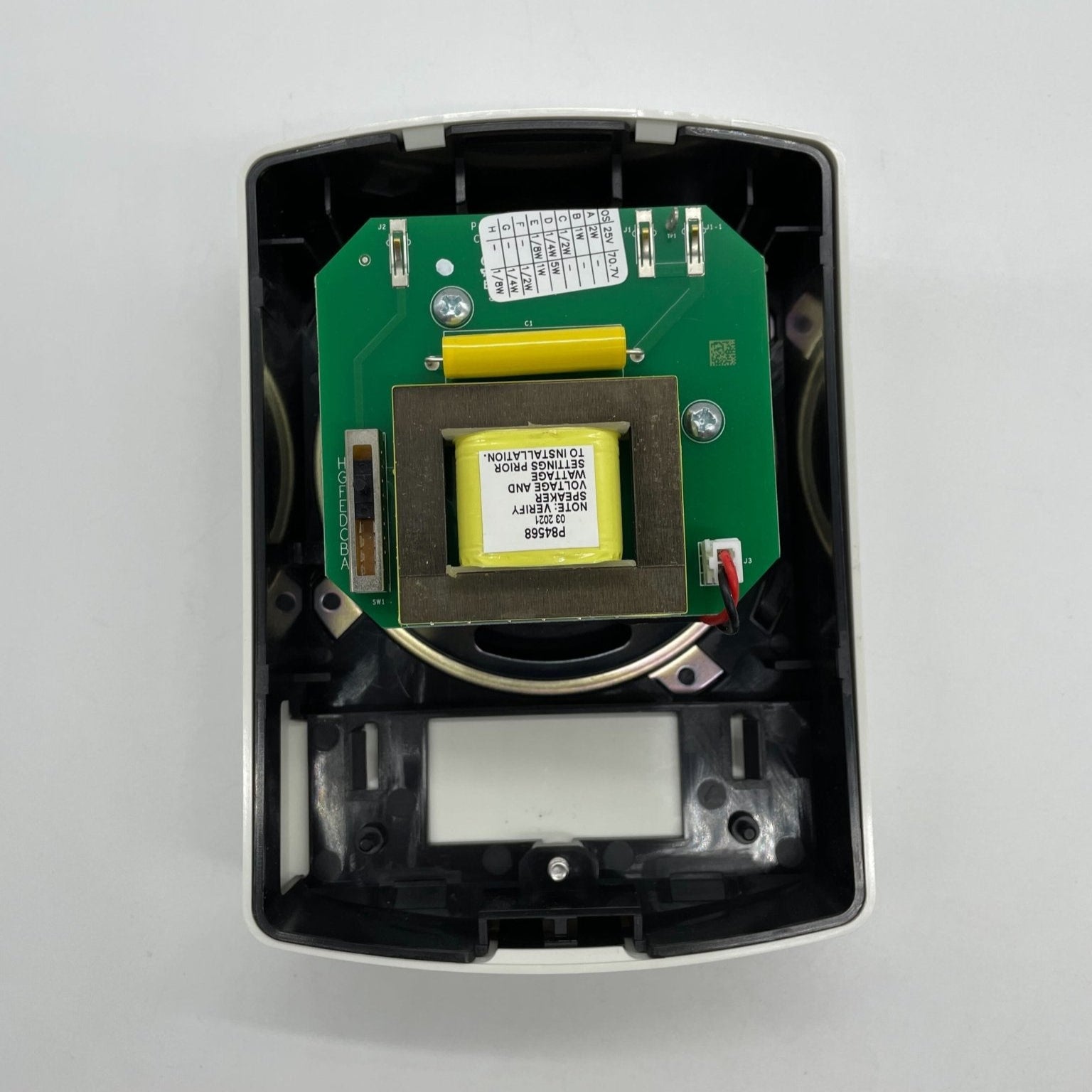

The Eluxa speaker carries voice evacuation, mass notification and tone signalling from a 25 or 70.7 VRMS audio circuit. One slide switch with eight lettered positions sets voltage and wattage together, leaving the factory at 70.7 V and 1/2 W in position F; a 1.5 µF blocking capacitor is wired in series so the panel can supervise the line.
- Field-selectable taps: 1/8, 1/4, 1/2, 1 and 2 W at 25 VRMS; 1/8 to 8 W at 70.7 VRMS
- Reverberant output at 10 ft per UL 1480, wall row at 70.7 VRMS: 74 dBA at 1/8 W rising to 90 dBA at 8 W
- Frequency response 300 to 8000 Hz
- Certified to UL 1480, CAN/ULC-S541 and the 520 Hz requirements of UL 464
- 6.35 × 4.56 × 1.54 in.; indoor 32°F to 122°F at up to 93% humidity

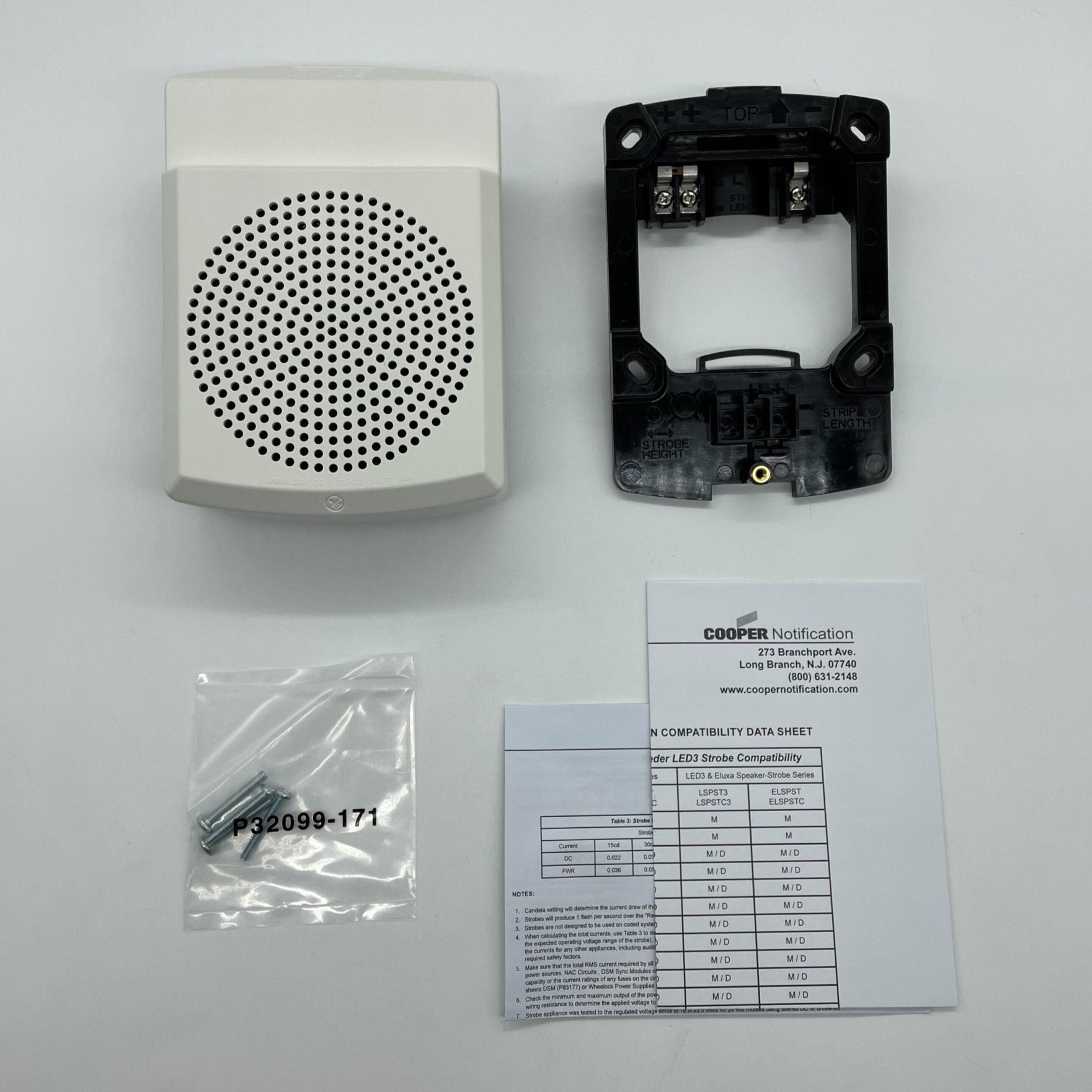

- Screw terminals for #12 to #18 AWG; hinged mounting plate included
ELSPKR is this speaker in red, ELSPKW-N drops the lettering and ELSPKW-AL reads ALERT; ELSPKWC is the white ceiling housing, ELSPSTW the wall speaker strobe and ELSPKBB-W the white wall back box.
