Eaton Wheelock ELSPSTRC — Eluxa high fidelity ceiling speaker strobe in red, marked FIRE, with a clear lens and a six-setting LED strobe.

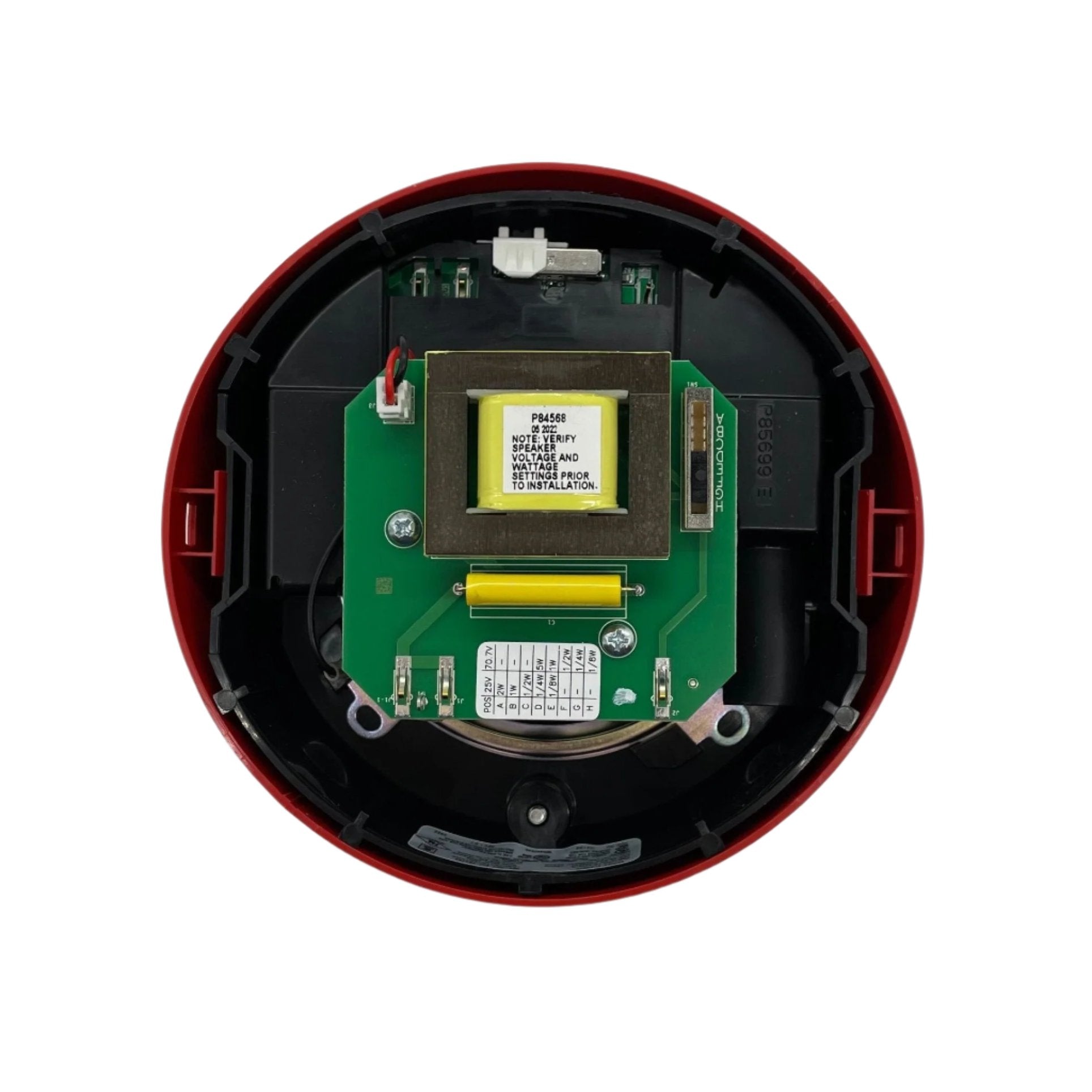

Voice evacuation works only if the message is intelligible, and intelligibility depends on frequency response as much as loudness. The Eluxa speaker covers 300 to 8000 Hz, wider than a typical fire alarm speaker, and takes 25 or 70.7 VRMS with taps set by slide switches. The strobe is an LED meeting the 20 ms flash duration of NFPA 72 2016.
- Ceiling candela 15, 30, 75, 110, 150 and 177, field selectable
- Taps 1/8 to 2 W at 25 V, 1/8 to 8 W at 70.7 V
- Anechoic output at 10 ft on the 25 V taps: 75, 79, 82, 85, 87 dBA

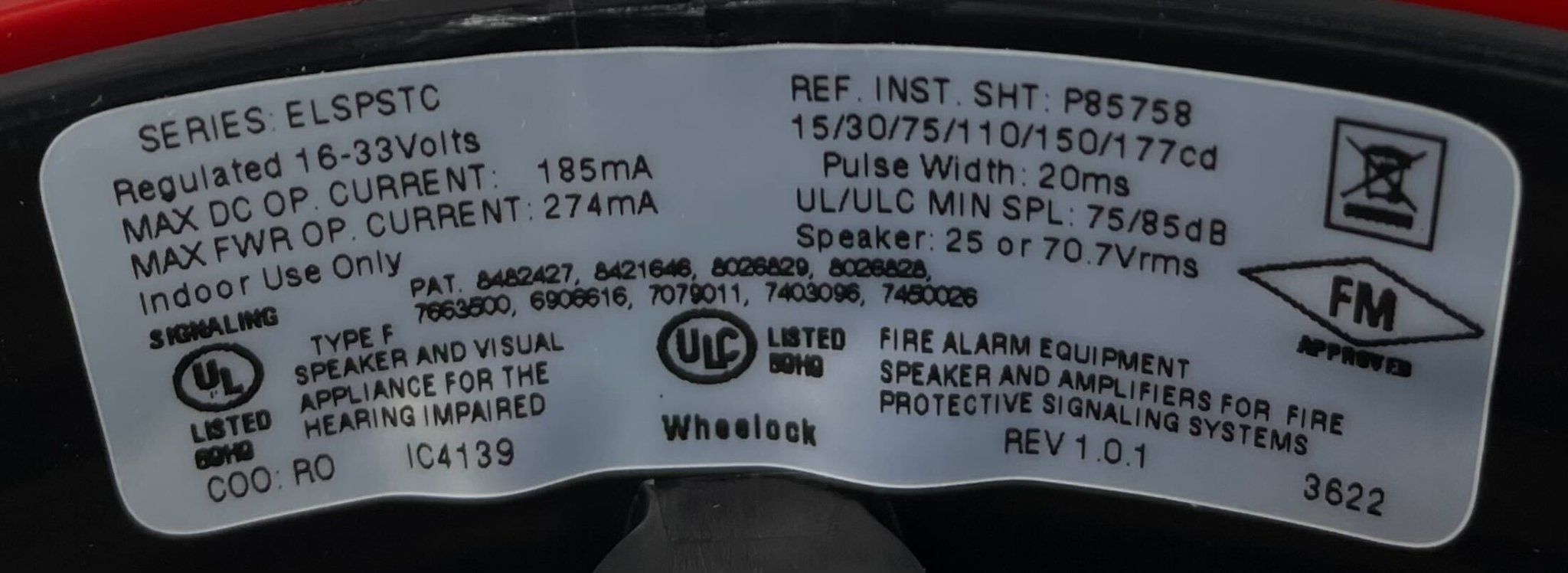

- Strobe range 16.0 to 33.0 VDC, 0.017 A at 15 cd to 0.161 A at 177 cd
- 6.27 in. diameter × 2.29 in. deep; indoor, 32 to 122 °F
- UL 1971 and UL 1480, CAN/ULC-S526 and S541, CSFM, FCC
ELSPSTWC is the same appliance in white, and ELSPSTRC-AL carries ALERT lettering instead of FIRE. ELSPSTR is the red wall model, on a different candela set — 15, 30, 75, 110, 135, 185 — so it will not substitute in a ceiling layout. ELSPKRC is the speaker without a strobe.
