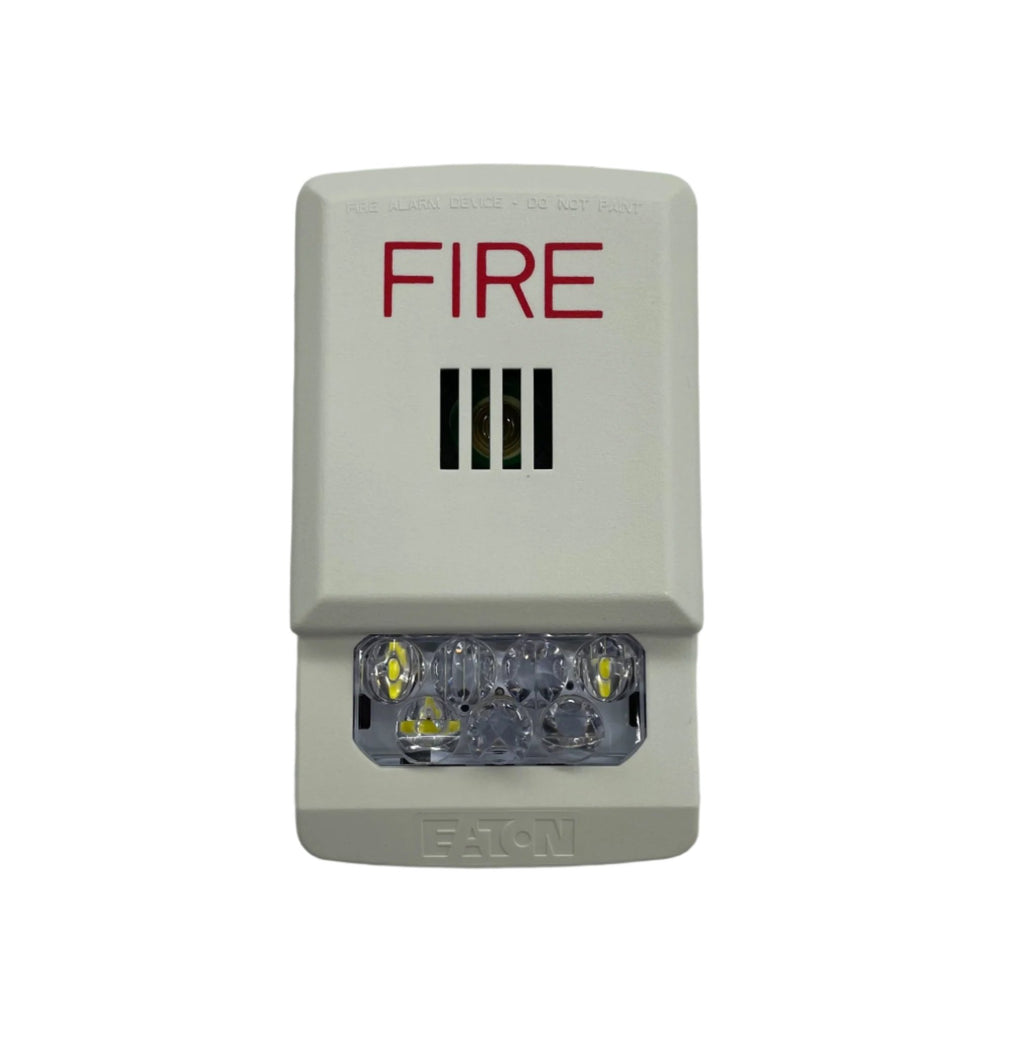

Eaton Wheelock ELHSW — Eluxa LED horn strobe for indoor wall mounting, white housing with FIRE lettering and a clear lens.
Table 4 of data sheet TD450157EN gives this exact number as the wall, clear lens, white, FIRE, synchronisable horn strobe. An LED source rather than a xenon flashtube keeps the current low, and Eaton states the 20 ms flash meets the 2016 edition of NFPA 72.
- Six field-selectable wall settings: 15, 30, 75, 110, 135 and 185 cd
- 24 VDC/VFWR over a regulated range of 16 to 33 V, one flash per second
- Current at 24 V, horn on high: 0.035 A at 15 cd, 0.069 A at 75 cd, 0.177 A at 185 cd
- Horn patterns continuous, T3 and T3/T4, rated 78 dBA low and 91 dBA high anechoic
- Certified to UL 1971, UL 1638, UL 464, CAN/ULC-S525 and CAN/ULC-S526

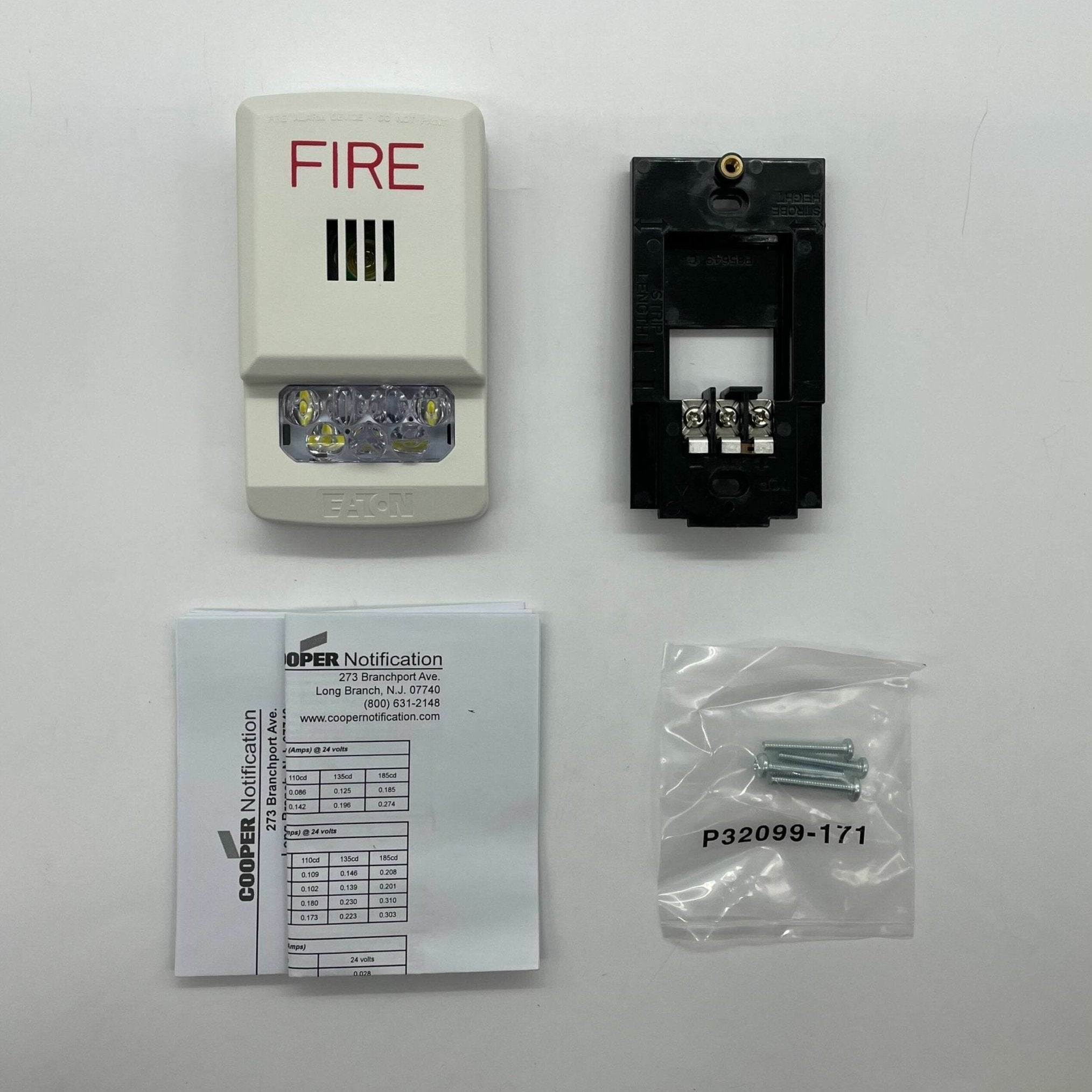

- 4.79 in. H × 2.76 in. W × 1.18 in. D, mounting plate included
- Indoor only, 32 to 122 °F; terminals 12 to 18 AWG
ELSTW is the closest neighbour and the horn is the separator: the same wall strobe without the audible, drawing 0.017 A at 15 cd. ELHSWC is the white ceiling model, whose ladder changes to 15/30/75/110/150/177 cd.
