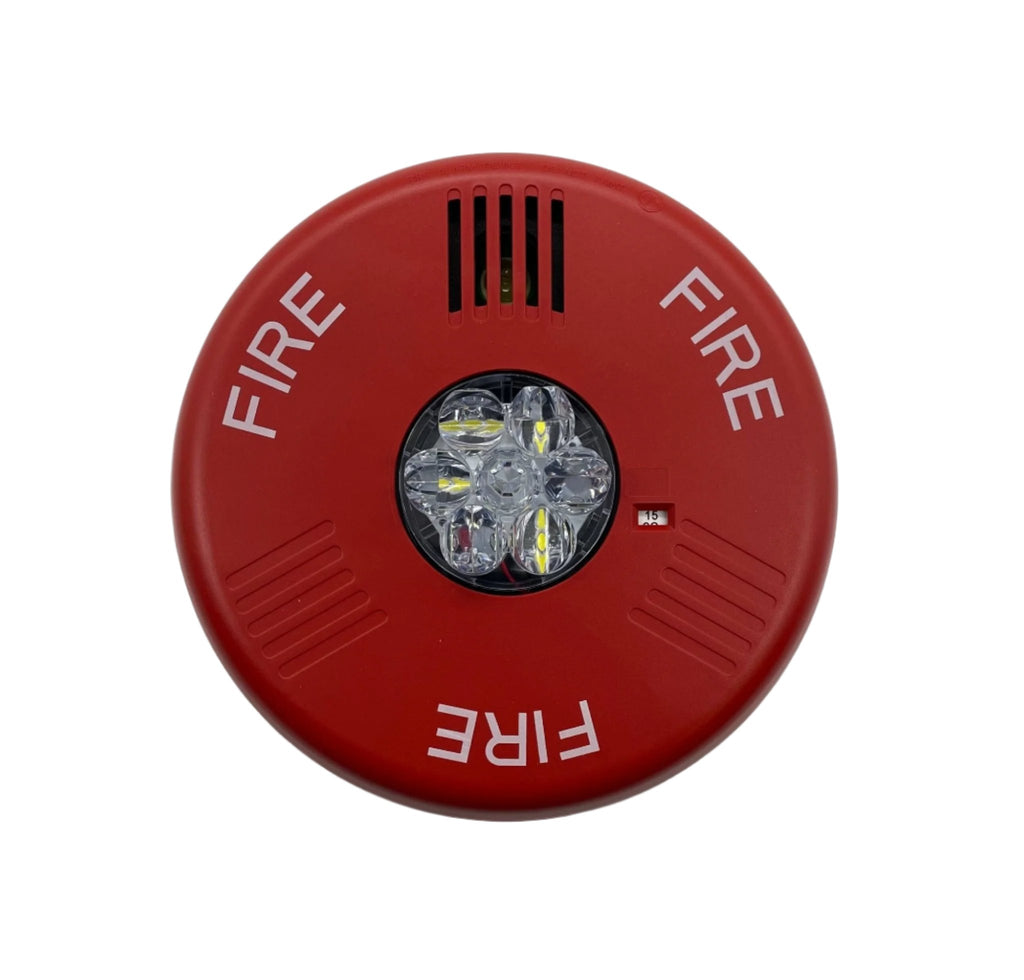

Eaton Wheelock ELHSRC — Eluxa LED ceiling-mount horn strobe, red, clear lens, FIRE lettering, six field-selectable candela settings, 24 V indoor.
This is the red member of the Eluxa ceiling pair and differs from the white ELHSWC in housing colour alone: mounting, lens, lettering, candela ladder, currents, sound output and dimensions are identical rows in the same tables. Ceiling units end at 150 and 177 cd where wall units run to 135 and 185 cd.
- Ceiling only; 15, 30, 75, 110, 150 and 177 cd field-selectable
- Horn patterns Continuous, T3 and T3/T4, each at high or low volume
- 80 dBA high and 78 low, reverberant at 10 ft per UL 464; 91 and 86 anechoic per ULC-S525, at 24 V
- 0.035 A at 15 cd to 0.177 A at 177 cd, 24 VDC horn high; 0.064 to 0.310 A on FWR
- 16 to 33 VDC or VFWR; indoor, 32 to 122 °F; 20 ms flash duration per NFPA 72 2016
- 6.27 in. diameter × 1.69 in. deep, 0.55 lb; UL 1971, UL 1638, UL 464, ULC-S525, ULC-S526
ELHSWC is the same appliance in white and ELHSR the red wall model, ending at 135 and 185 cd. ELSTRC is the ceiling strobe with no horn, ELHNRC the ceiling horn with no strobe.
FAQ
What does the ELHSRC mount to?
It is ceiling mount only. Eaton lists LSPKBB-C ceiling backboxes, 4 in. square boxes 1-1/2 in. or 2-1/8 in. deep, and 4 in. octagonal boxes 1-1/2 in. or 2-1/8 in. deep.
Can it be synchronized?
Yes. The strobe synchronizes with Wheelock DSM sync modules, PS power supplies, SAFEPATH products, or panels with the Wheelock sync protocol, and the horn can be silenced while the strobe keeps flashing.
Can it be mixed with xenon strobes?
Yes. Eluxa strobes meet the 20 ms flash duration of NFPA 72 2016, so they can share a field of view with xenon strobes, including Wheelock RSS and Exceder LED3 models.
Can the horn signal CO alarms?
Yes. The horn offers Continuous, T3 and T3/T4 patterns, covering fire (T3) and CO (T4) signaling in one device.
