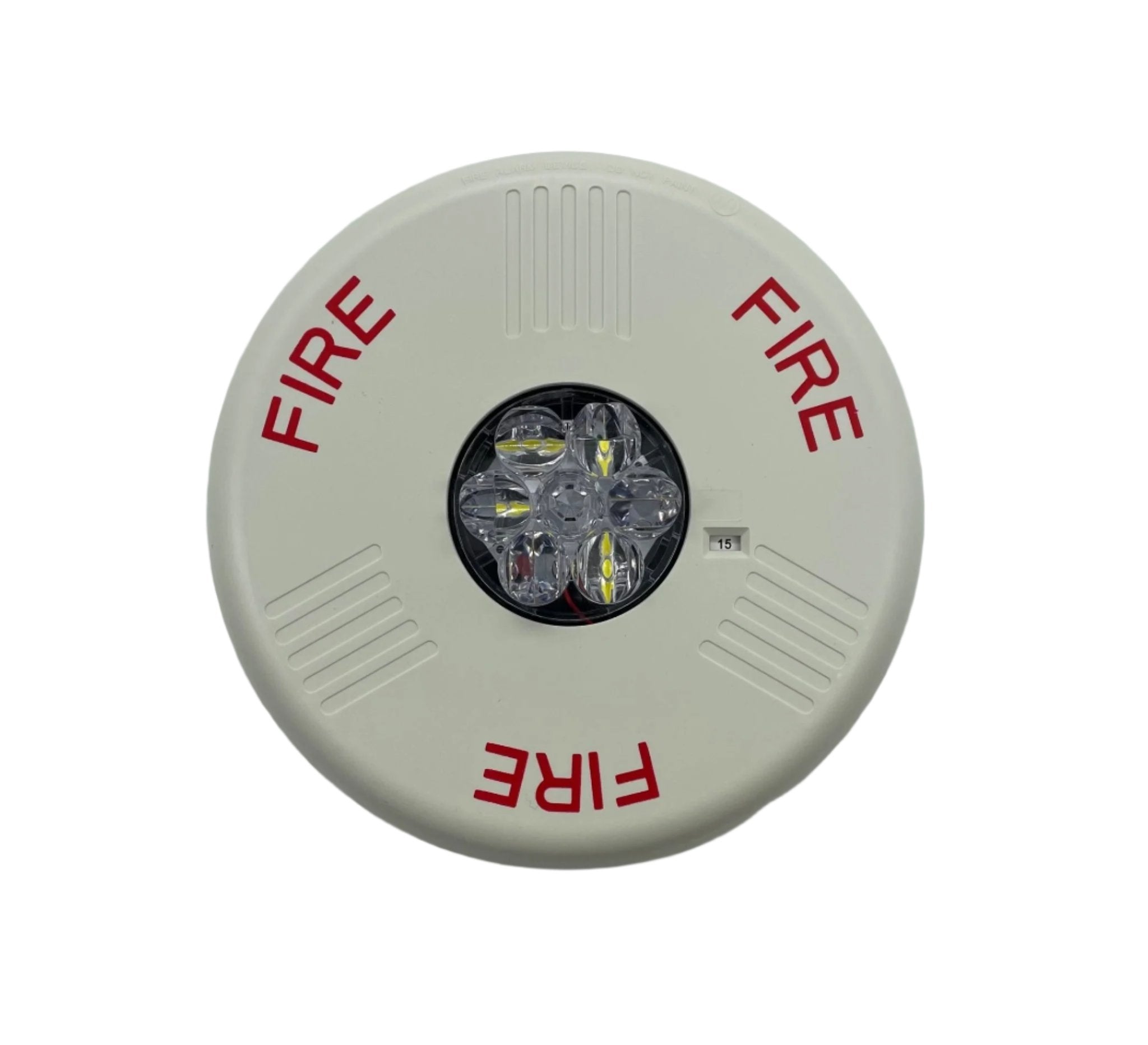

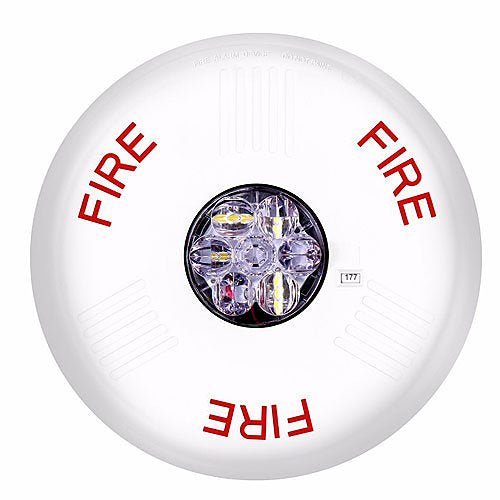

Eaton ELSTWC is a Wheelock Eluxa LED strobe for ceiling mounting, with white housing, FIRE lettering and a clear lens, rated 24V with six candela settings from 15 to 177 cd.
The Eluxa strobes by Eaton use power-saving LED technology with a full range of low and high candela settings. The low-profile, modern enclosure is designed to blend with a building's interior, and the strobe models are built for low current draw across the full candela range, which helps reduce installation and operating costs in fire alarm systems. The mounting plate hinges for pre-wiring and pre-testing, and candela settings change without tools.

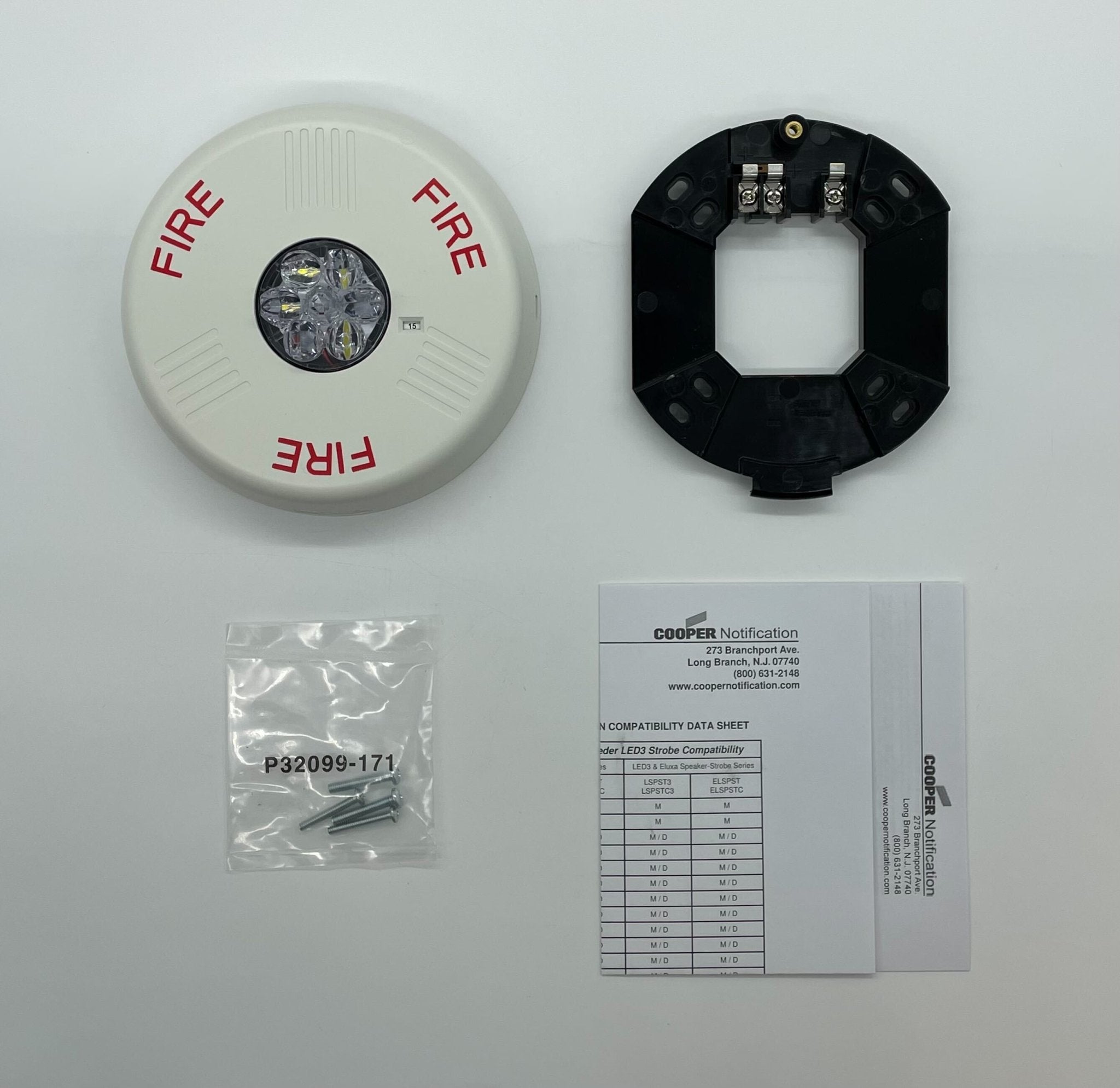

What's included
- Eluxa ELSTWC strobe
- Mounting plate
Main features
- Energy efficient LED technology: fewer power supplies, smaller wire gauge and shorter wire runs
- Low-profile design with no visible mounting screws
- Six field-selectable candela settings in one device. Ceiling models: 15, 30, 75, 110, 150 and 177 cd

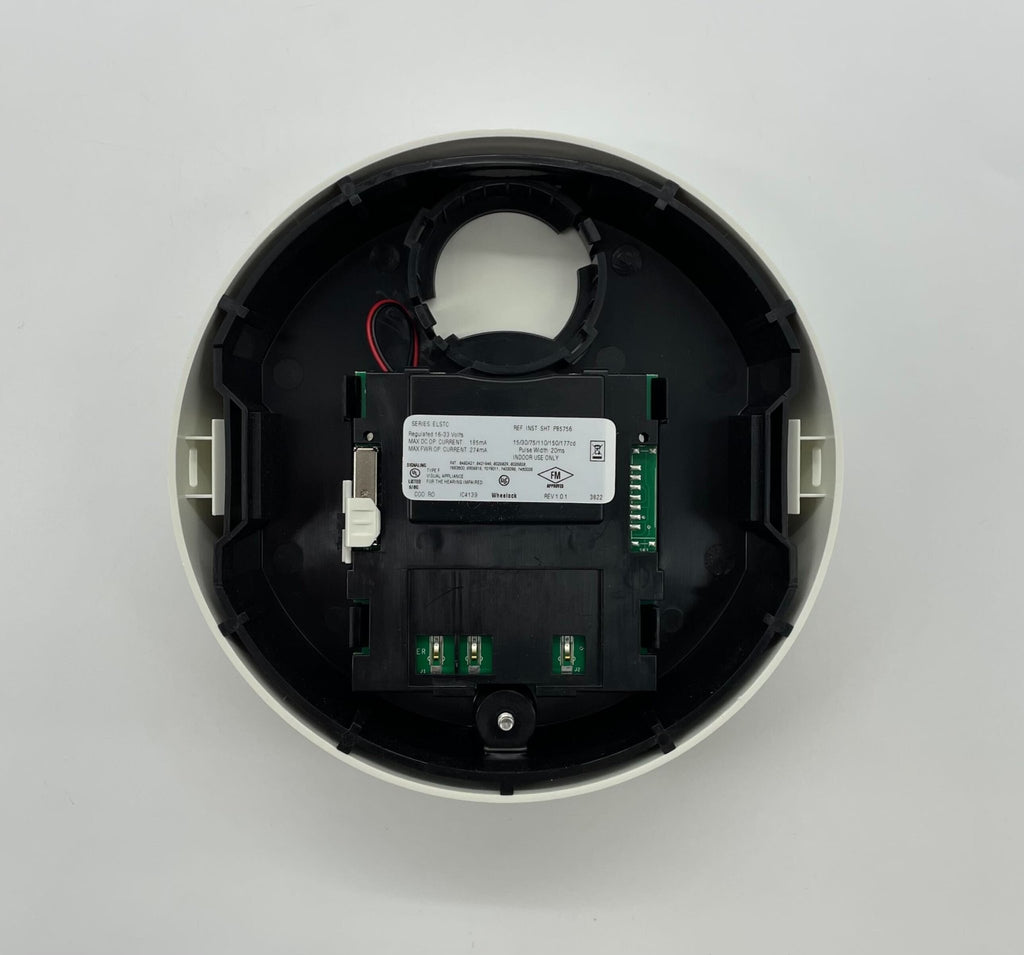

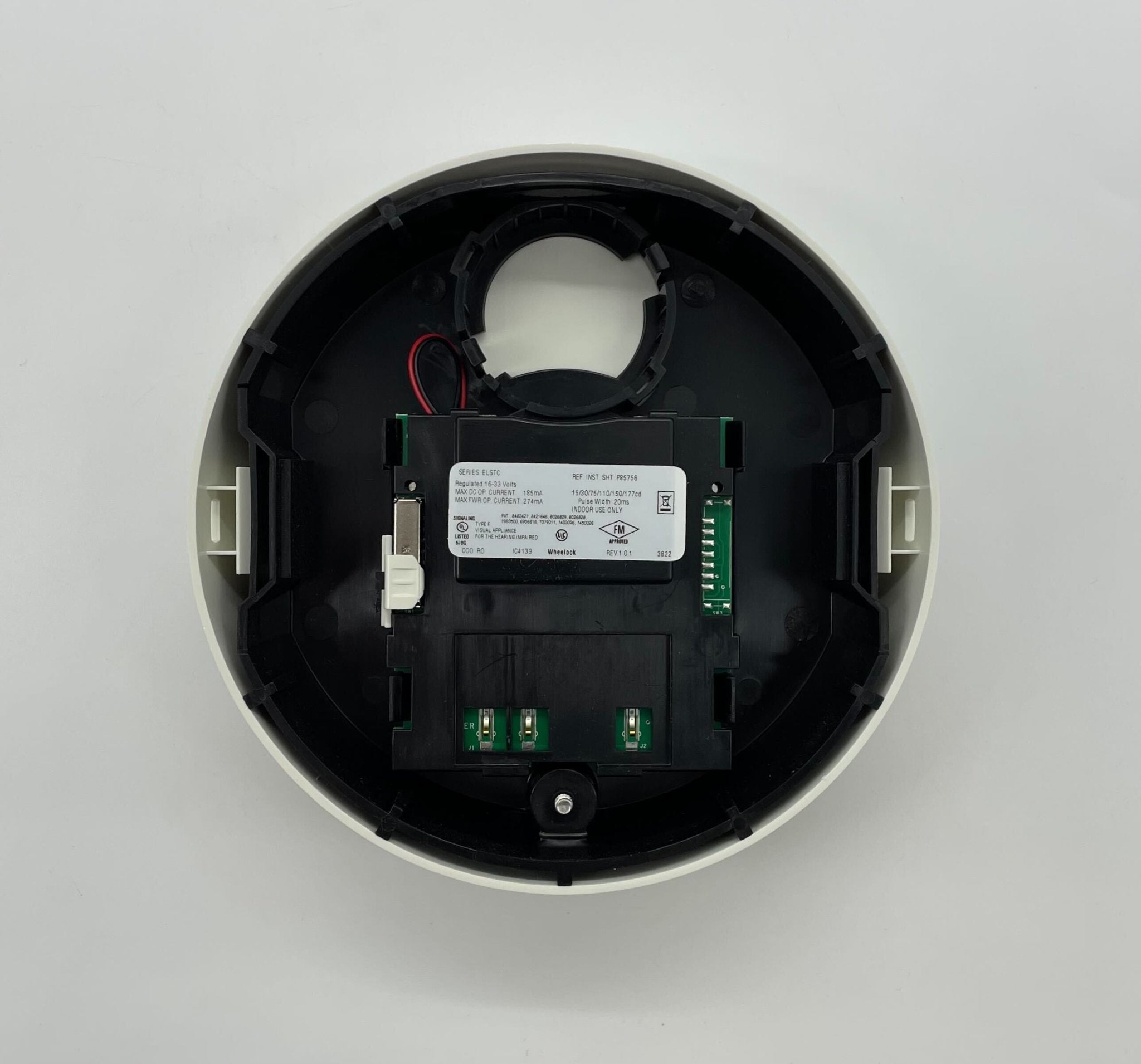

- Pre-wire and pre-test through the hinged mounting plate
- No tools needed for setting changes
- Special lettering and colored lens models are available in the Eluxa line
Specifications
| Model |
ELSTWC |
| Type |
LED strobe, indoor |
| Mounting |
Ceiling |
| Housing color |
White |
| Lens |
Clear (Lexan), FIRE lettering |

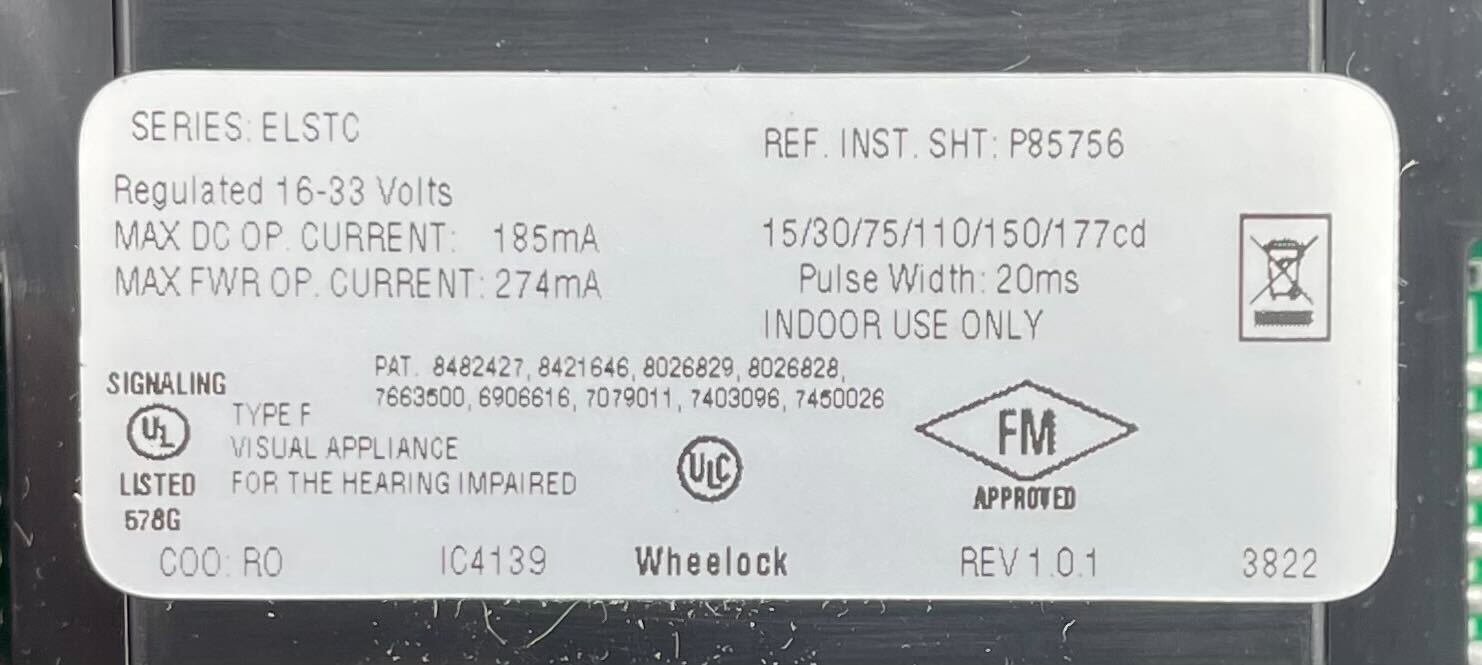

| Candela settings |
15 / 30 / 75 / 110 / 150 / 177 cd |
| Voltage |
24V |
| Size |
6.25 in diameter; 0.542 lb |
| Operating temperature |
32°F to 122°F (0°C to 50°C) |
| Standards |
UL and ULC |
| UPC |
786697009716 |
Related models
Specifications are taken from the Eaton product page for the ELSTWC. Manufacturer specifications are subject to change without notice.
