Westell CV04-501-629 3-Way Wilkinson Power Splitter, 136-960MHz, 50 Watts, N Connectors
The CV04-501-629 is a 3-way Wilkinson power splitter that divides an RF signal equally among three outputs. It covers 138-960 MHz, which spans the VHF, UHF, 700 and 800 MHz public safety and private mobile bands, handles 50 W total input power and has N female connectors.
Key Features
- Covers public safety bands: VHF, UHF, 700 and 800 MHz
- Low insertion loss and low VSWR
- High port isolation (>=18 dB)
- 1 input, 3 outputs
Specifications
| Frequency |
138-960 MHz |
| Input ports |
1 |
| Output ports |
3 |
| Split loss |
4.8 dB |
| Insertion loss |
<=1.6 dB |
| VSWR |
<=1.3 |
| Port isolation |
>=18 dB |
| Total input power |
50 W |
| Impedance |
50 ohms |
| Connectors |
N female |

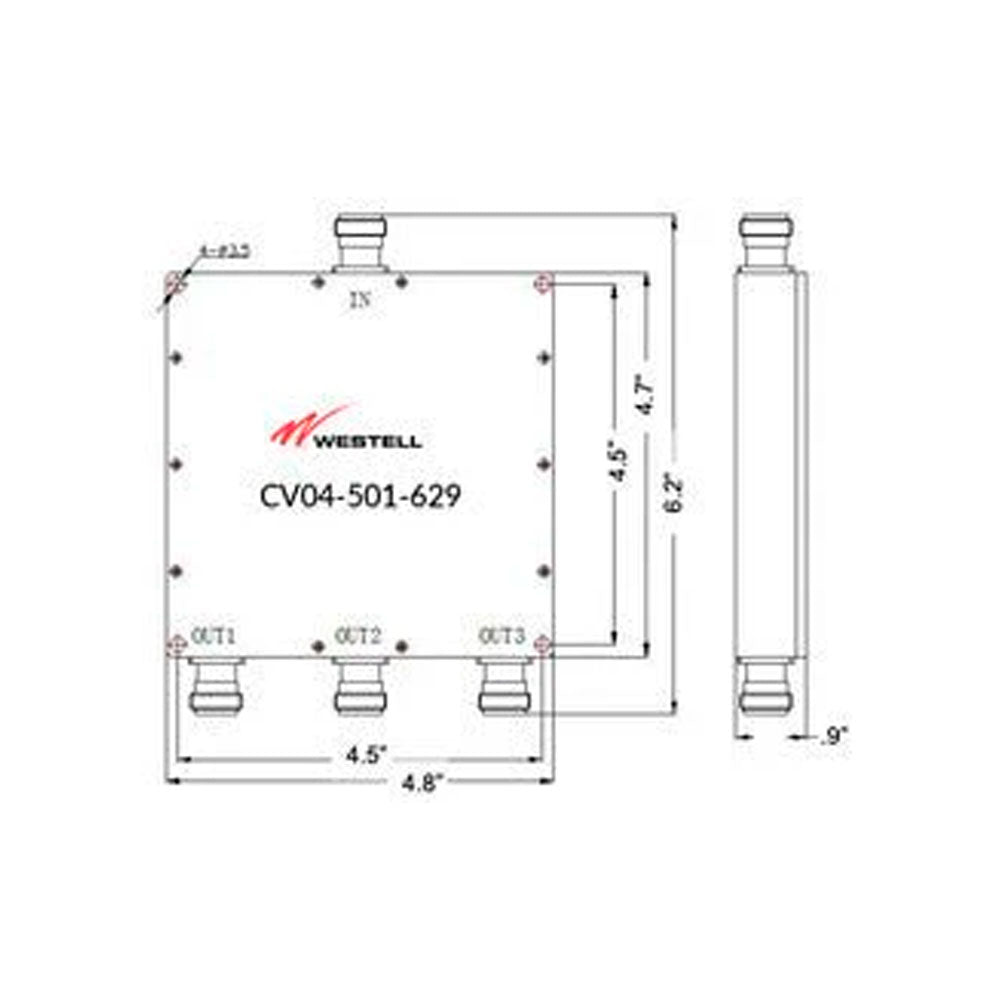

| Dimensions (W x L x D) |
4.8 x 4.7 x 0.9 in (connectors excluded) |
Compatible With
- Public safety VHF/UHF/700/800 MHz DAS / BDA (ERCES) systems
