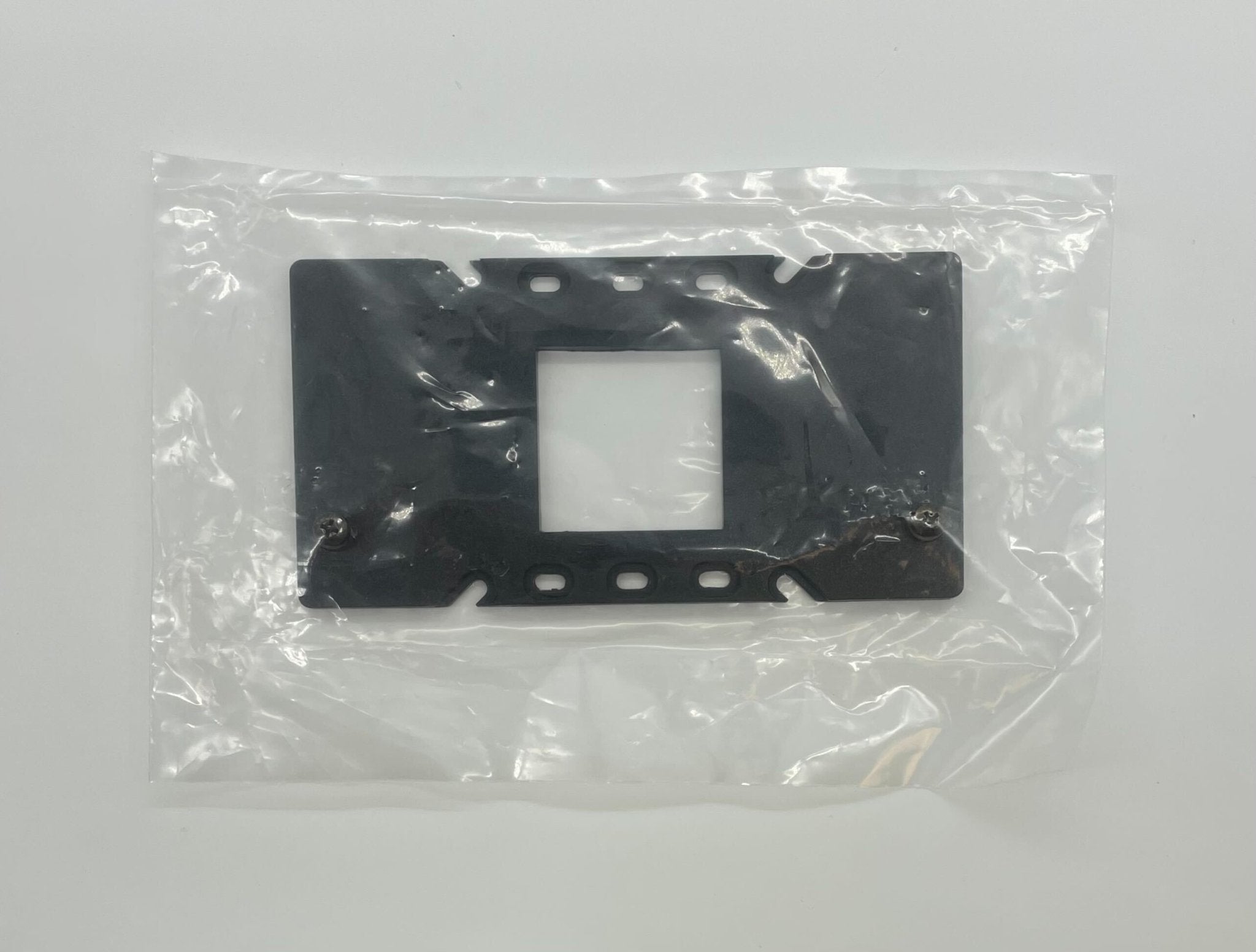

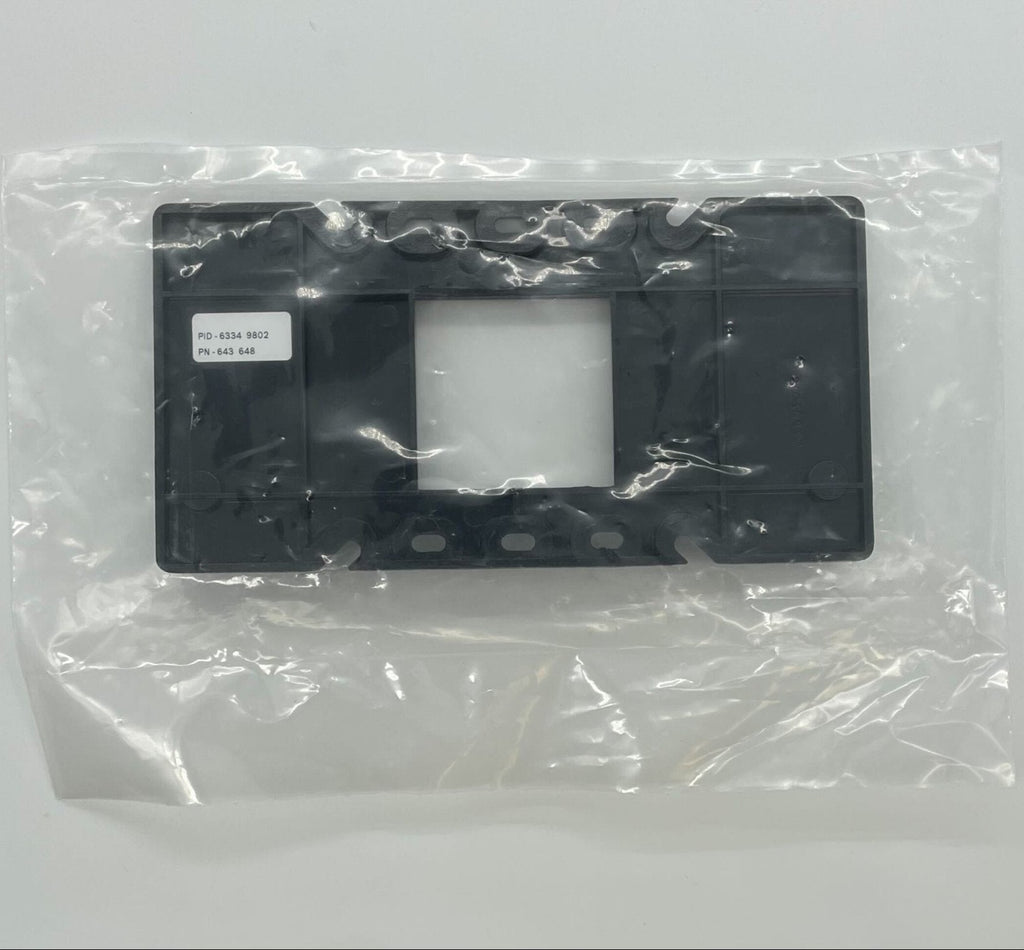

Simplex 6334-9802 — wall mounting plate for Celestra 2000 series digital clocks.
The 6334 series is Celestra 2000, a line of LED digital clocks for synchronized time systems rather than a fire alarm notification family. Each clock is ordered with its mounting plate and harness as separate line items, and the 6334-9802 is the plate used for surface wall mounting over a standard electrical box furnished by others.
- Surface wall mounting of 6334-9125 through 6334-9152 Celestra 2000 clocks (2.5" and 4.0" LED displays)
- Standard correction: 4" square, 2-1/8" deep box with 2-gang plaster adapter ring
- Power line carrier correction: 2-1/8" deep box with 3-gang plaster adapter ring
- Clocks with electronic correction receiver assemblies instead use the 5001-9907 box and 5001-9906 ring
- Ordered separately for every clock, with a 6334-9803 (120 VAC) or 6334-9804 (230 VAC) harness assembly
Check the number: 6334-9806 is the ceiling mounting plate and interface box, 6334-9808 is the filler plate, and Simplex 4090-9802 is an unrelated appliance trim plate.
