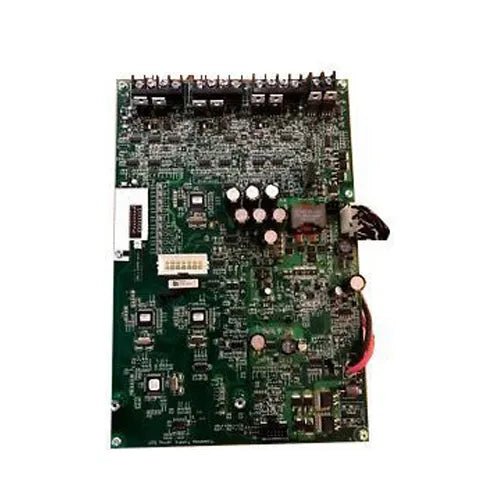

The Simplex 4100-5311 Enhanced Power Supply with IDNet 2 Module is a powerful system expansion module designed for Simplex 4100ES fire alarm control panels.
This enhanced power supply provides additional system power, addressable device communication, and notification appliance circuit control, making it ideal for large and expandable fire alarm installations.
The 4100-5311 includes an integrated IDNet 2 communication module, allowing support for addressable initiating devices and improved system monitoring. With advanced power management and scalable system integration, this module ensures reliable performance in demanding fire protection environments.
Key Features
• Enhanced power supply for Simplex 4100ES systems
• Built in IDNet 2 addressable communication module
• Supports up to 250 addressable devices
• Three Class B IDNAC signaling line circuits
• 9 amp total system power output
• Built in battery charger with monitoring
• 2 amp programmable auxiliary output
• Expansion slot for additional modules
• Power limited outputs for system safety
• Low battery cutout feature
Advanced Power and Communication
The Simplex 4100-5311 combines power expansion with intelligent addressable communication. The integrated IDNet 2 module supports up to 250 addressable devices on a single signaling line circuit, allowing efficient system expansion while maintaining full device monitoring and control.
The module also provides three Class B IDNAC signaling line circuits, allowing control of addressable notification appliances and improving system flexibility.
Battery Charging and Power Management
The enhanced power supply includes a dual rate battery charger with monitoring capabilities for system voltage, battery status, and charger performance. This ensures dependable operation and improved system reliability.
Additional features include:
• Low battery cutout protection
• Power limited outputs
• Programmable auxiliary output
• System monitoring and diagnostics
Specifications
• Model: 4100-5311
• Brand: Simplex
• Type: Enhanced Power Supply with IDNet 2 Module
• Input Voltage: 120 VAC
• Output Rating: 9 Amps
• Device Capacity: Up to 250 addressable devices
• Notification Circuits: Three Class B IDNAC SLCs
• Auxiliary Output: 2 Amp programmable
Applications
Ideal for:
• Large commercial buildings
• Hospitals
• Universities
• Industrial facilities
• Campus environments
• High rise buildings
Why Choose the Simplex 4100-5311?
The Simplex 4100-5311 Enhanced Power Supply with IDNet 2 Module provides scalable power expansion and advanced addressable communication. Designed for Simplex 4100ES systems, it delivers reliable performance and flexibility for complex fire alarm installations.
Brand: Simplex
Model: 4100-5311
Type: Enhanced Power Supply with IDNet 2 Module
Input Voltage: 120V
Compatibility: Simplex 4100ES Fire Alarm Systems
