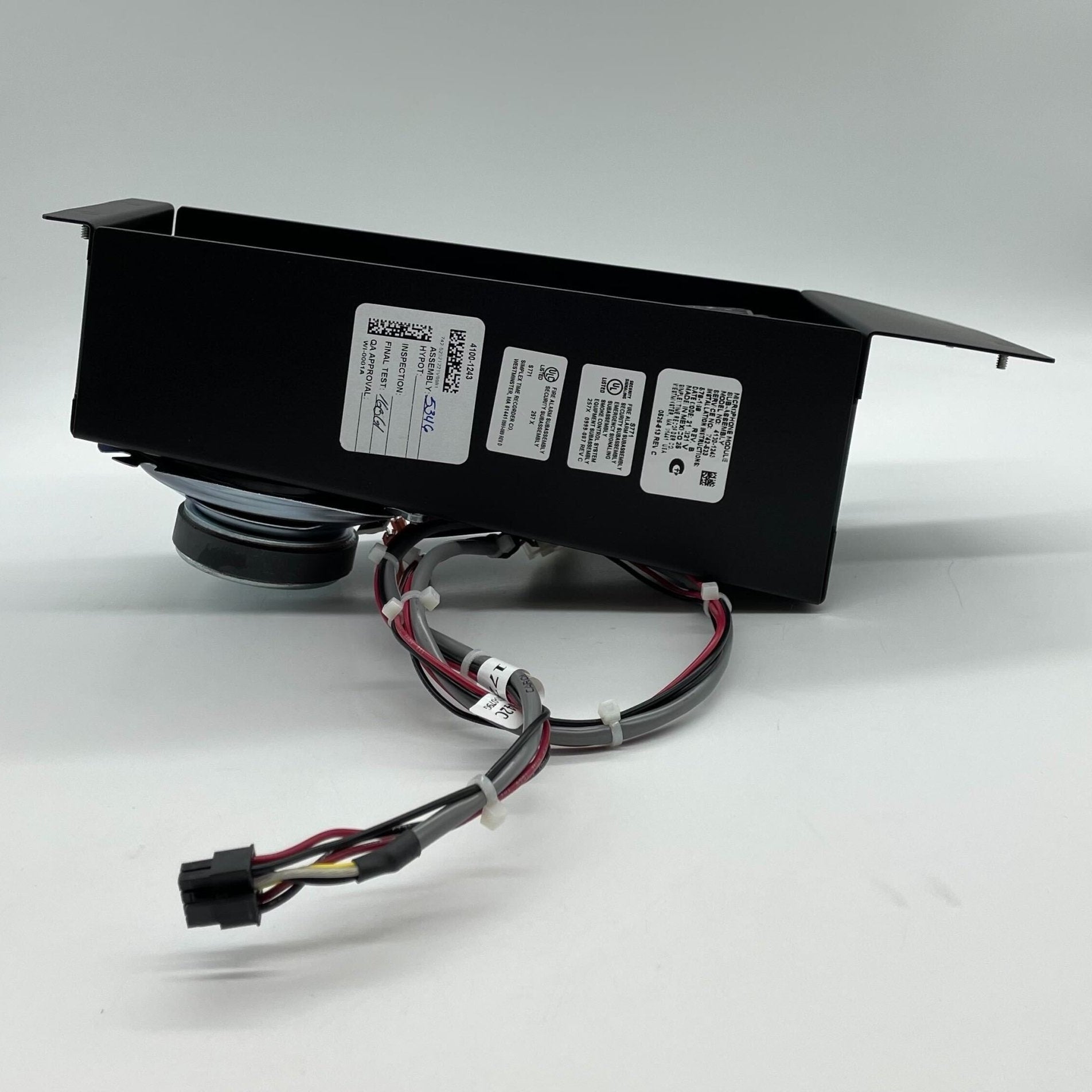

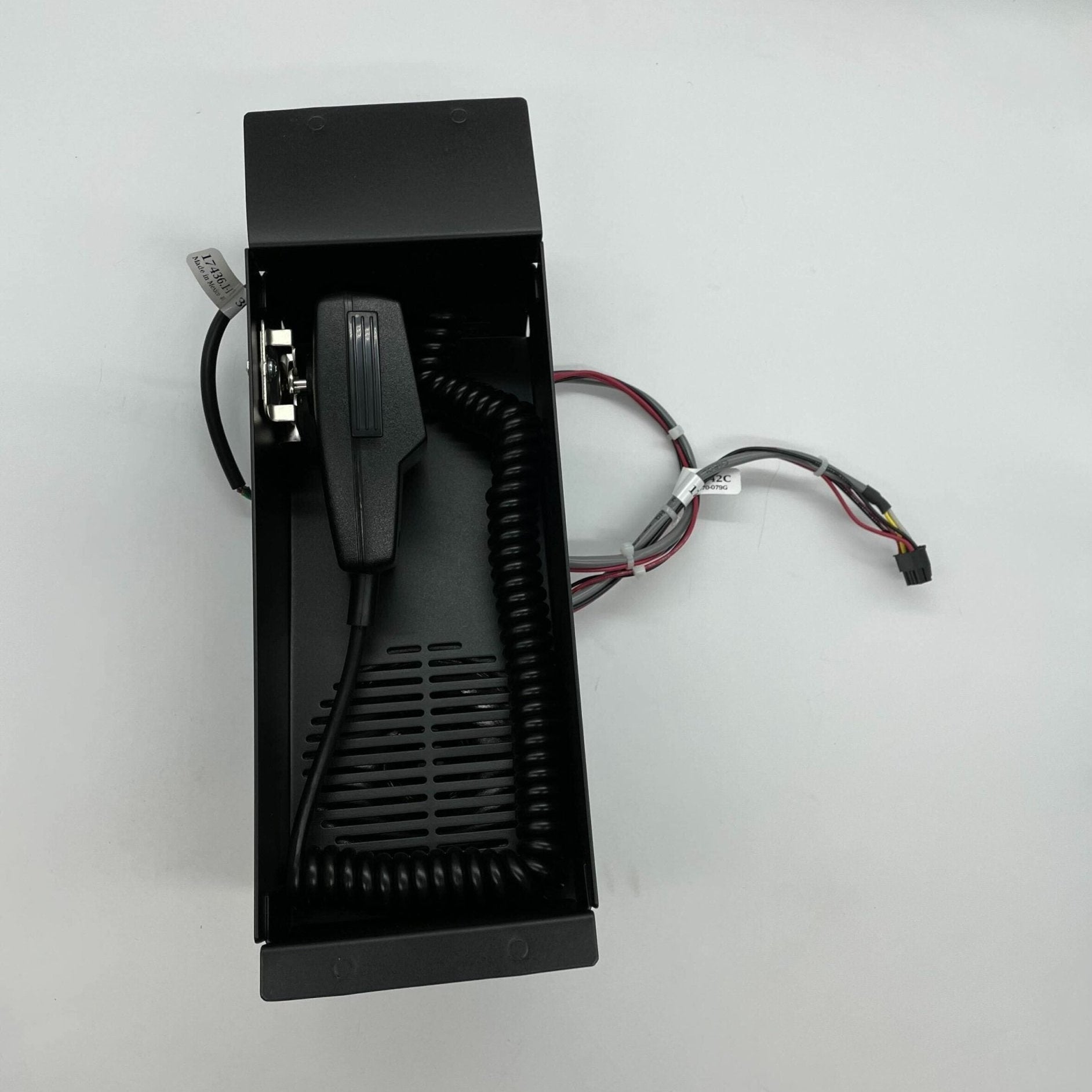

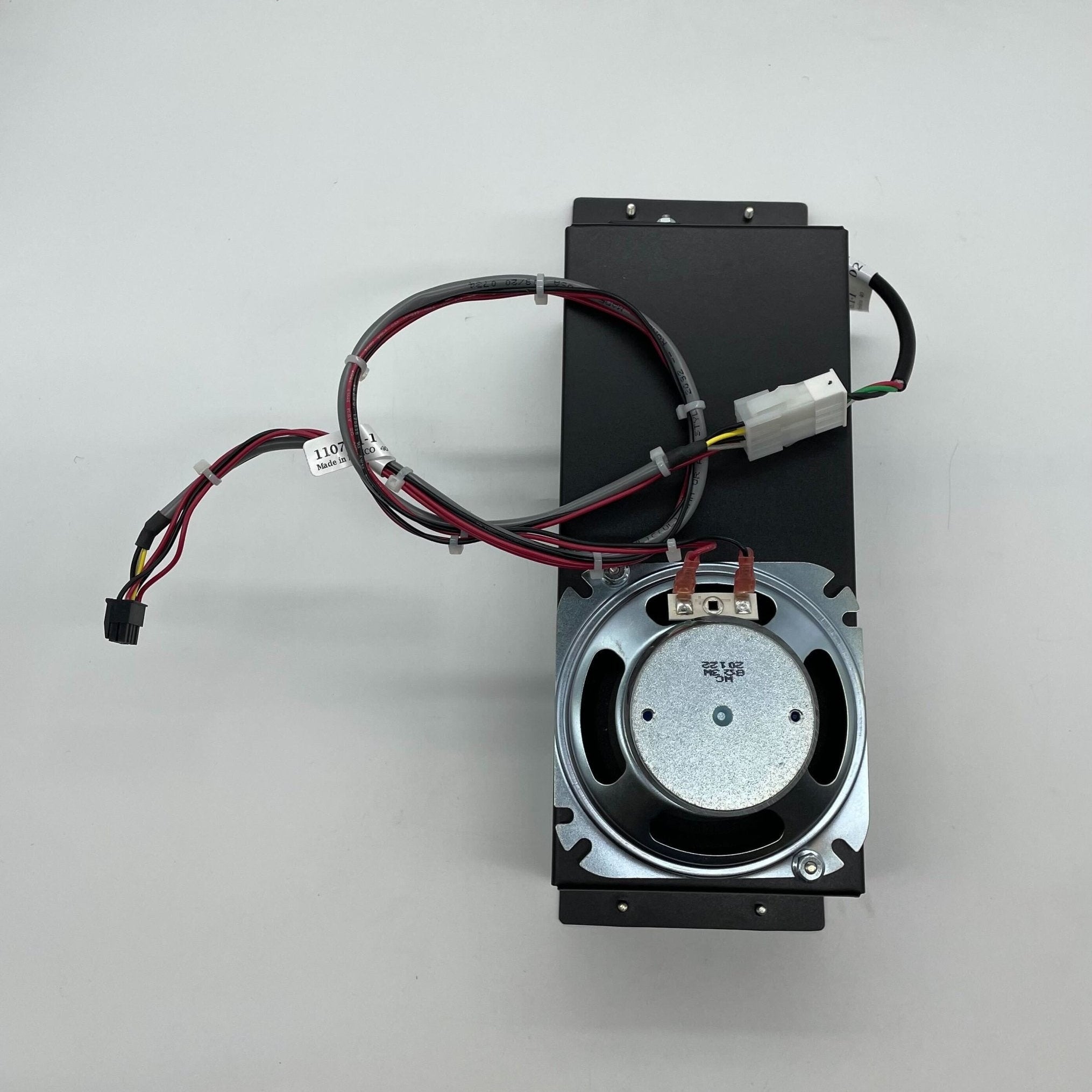

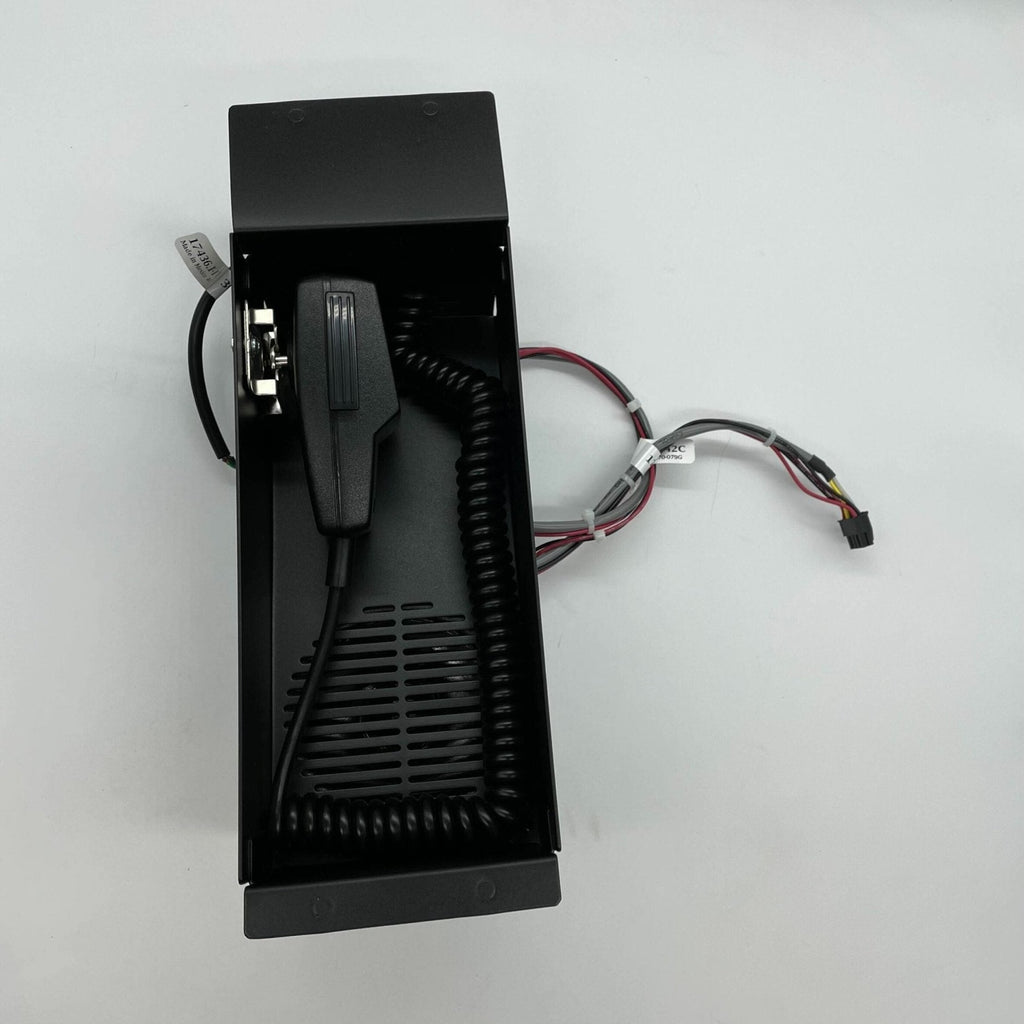

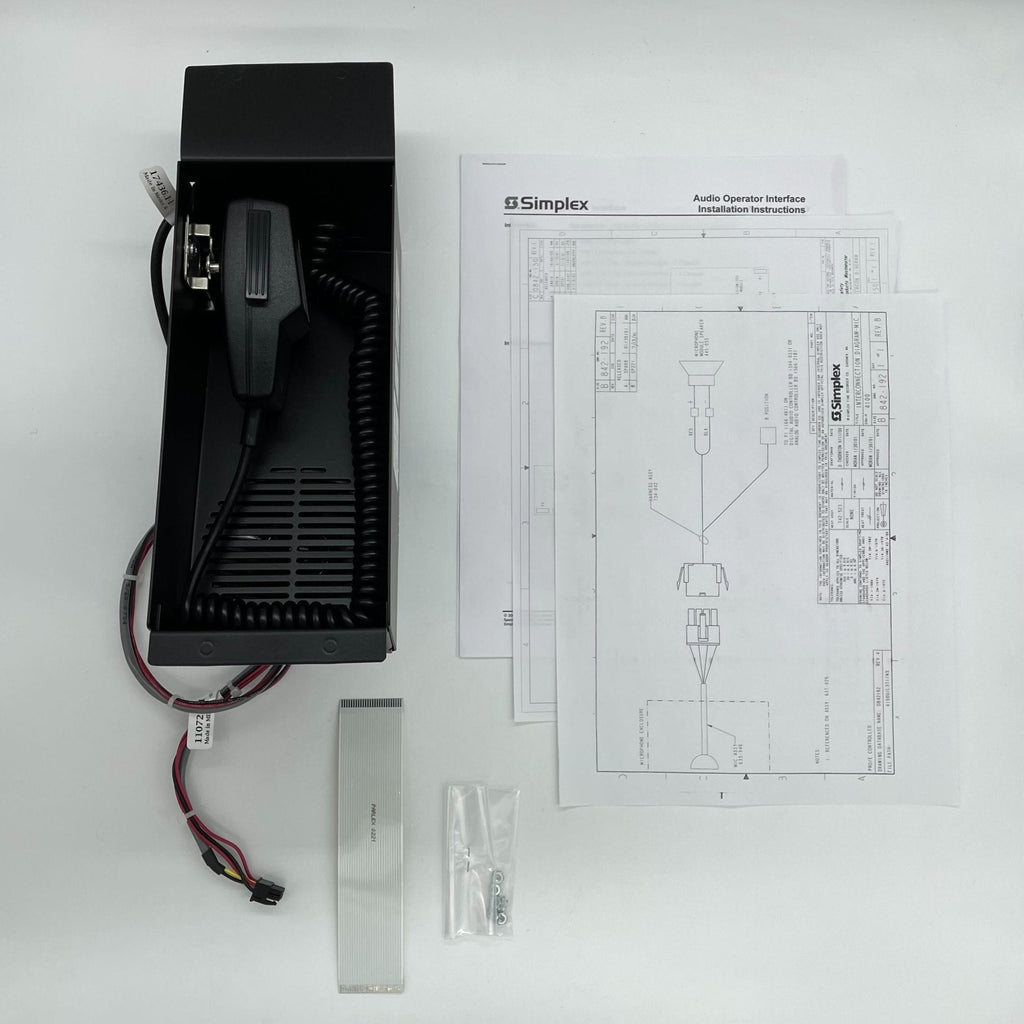

Live voice paging on a Simplex 4100ES emergency voice/alarm communication system goes through the 4100-1243, the master microphone module (mike) for fire alarm control units. It mounts on the front of the panel's audio expansion bay and gives operators a push-to-talk microphone for live announcements.
Key Features
- Master microphone for live voice announcements from the fire alarm control unit
- Front panel module that takes up 2 slots (4 in)
- Must go in the expansion bay; the space behind it is for 4100ES flat modules only
- One per audio system
Specifications
-
Manufacturer: Simplex
-
Part Number: 4100-1243
-
Type: Microphone module for fire alarm control units
-
Mounting: Front panel, 2 slots (4 in), expansion bay only
-
Supervisory Current: 2.4 mA
-
Active Current: 6 mA
-
Quantity Limit: One per audio system
Compatibility
For Simplex 4100ES audio systems. For a microphone at a remote annunciator panel, use the 4100-1244 remote microphone module instead.
