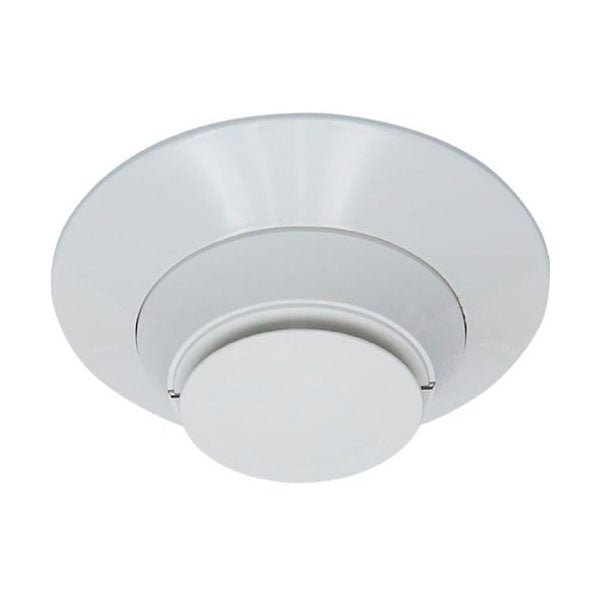

SK-PHOTO-W — white, low-profile intelligent plug-in photoelectric smoke detector that occupies one address on a Silent Knight signaling line circuit.
The SK-PHOTO-W Series are direct replacements for the SK-PHOTO Series detectors, with a contemporary low-profile design and an enhanced optical sensing chamber engineered to sense smoke produced by a wide range of combustion sources in accordance with more stringent code standards. Detector sensitivity is programmed in the control panel software, then continuously monitored and reported back to the panel. Point ID capability lets each detector address be set with rotary decimal address switches, giving an exact detector location for selective maintenance when chamber contamination reaches an unacceptable level. Two bi-color LEDs give a 360° field viewing angle — blinking green in normal condition and steady red in alarm. The detector plugs into a separate base, which is ordered separately and determines the installed diameter.
Specifications
| Type |
Intelligent plug-in addressable photoelectric smoke detector |
| Addressing |
Rotary decimal address switches; one panel address per detector (total limit is panel dependent) |
| SLC connection |
Two-wire |
| Sensitivity (UL applications) |
0.5% to 4.0% per foot obscuration |
| Sensitivity (ULC applications) |
0.5% to 3.5% per foot obscuration |
| Voltage range |
15 to 32 volts DC peak |
| Standby current (max. avg.) |
200 µA @ 24 VDC (one communication every 5 seconds with LED enabled) |
| Maximum current |
4.5 mA @ 24 VDC ("ON") |
| Height |
2.0" (51 mm); base determines diameter |
| Diameter in B300-6 base |
6.1" (15.6 cm) |
| Diameter in B501 base |
4" (10.2 cm) |
| Shipping weight |
3.4 oz. (95 g) |
| Operating temperature range |
32°F to 122°F (0°C to 50°C) |
| Relative humidity |
10% to 93% non-condensing |
| UL/ULC listed velocity range |
0 to 4000 ft/min. (1219.2 m/min.), suitable for installation in ducts |
| Standard |
Designed to meet UL 268 7th Edition |
| Agency listings |
UL Listed S6173; FM Approved; CSFM 7272-0559:0512 |
| Country of origin |
Mexico |
Installation notes
-

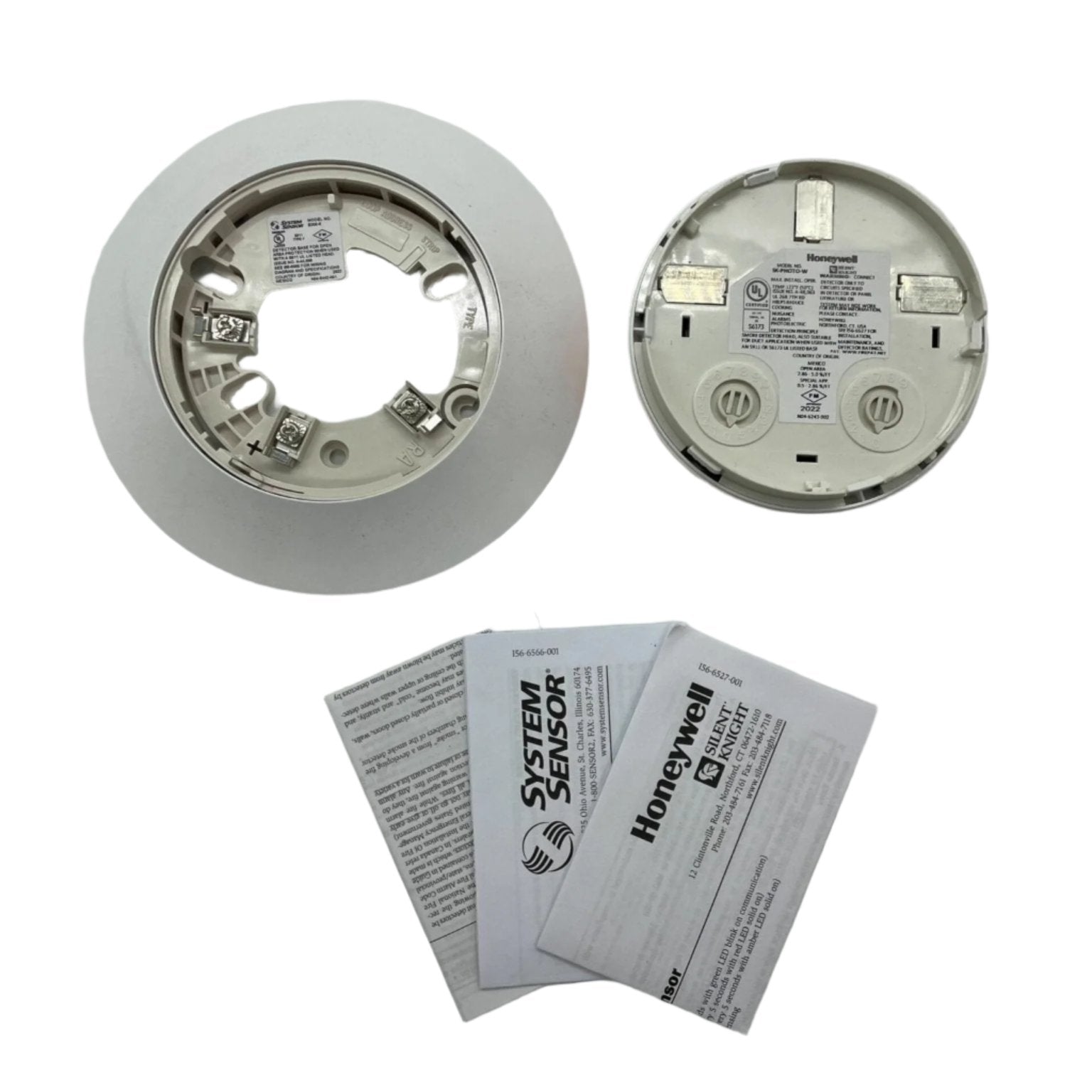

Base is a separate order: the detector plugs into a separate base to simplify installation, service and maintenance. The base also sets the finished diameter — 4" on a B501, 6.1" on a B300-6.
-
Back-box depth: mount the base (all base types) on an electrical back box at least 1.5" (3.81 cm) deep. For a chart of compatible junction boxes see Silent Knight document SK-61045.
-
No end-of-line resistor: because of the inherent supervision provided by the SLC loop, end-of-line resistors are not required, and wiring T-taps or branches are permitted for Class B wiring.
-
Isolator limits with relay/sounder bases: when using relay or sounder bases, consult the SK-ISO installation sheet I56-3627 for device limitations between isolator modules and isolator bases.
-
No heat element in this model: the plain SK-PHOTO-W is photoelectric only. The dual electronic thermistors that add 135°F (57°C) fixed-temperature thermal sensing are a feature of the SK-PHOTO-T-W, and the series thermal ratings — fixed set point 135°F (57°C), rate-of-rise 15°F (8.3°C) per minute, high temperature heat 190°F (88°C) — apply to that model, not to this one.
-
Spacing: Silent Knight recommends spacing detectors in compliance with NFPA 72; in low-airflow applications with a smooth ceiling, space detectors 30 feet (9.1 m). Refer to NFPA 72 and the System Smoke Detector Application Guide, document SPAG91, for placement and special applications.
-
Testing: a built-in functional test switch is activated by an external magnet (M02-04-00, or M02-09-00 with telescoping handle), and remote test can be commanded from the panel. Walk test displays the address by blinking the LED — an address of 121 blinks the LED 12-(pause)-1.
Related models
-
SK-PHOTO-T-W — same detector but adds a built-in 135°F (57°C) fixed-temperature thermal device
-
SK-PHOTO-R-W — remote test capable version for use with DNR/DNRW duct detector housings; rated -4°F to 158°F (-20°C to 70°C) when installed in a DNR/DNRW
-
SK-PHOTO Series — the earlier generation this series directly replaces
-
B501-WHITE / B300-6 — flangeless 4" and flanged 6.1" mounting bases; "-IV" suffix indicates ivory, B501-BL is black
-
B200S-WH / B200S-LF-WH — intelligent programmable sounder bases, standard and low-frequency; B200SR versions are for retrofit applications
-
B224BI-WH / B224RB-WH — plug-in isolator base and relay base
-
RA100Z(A) — remote 3–32 VDC LED annunciator for use with B501 and B300-6 bases only
Specifications taken from the Honeywell Silent Knight data sheet "SK-PHOTO-W SERIES Addressable Photoelectric Smoke Detectors," document 351634:C (5/28/2020). Manufacturer specifications are subject to change without notice.
