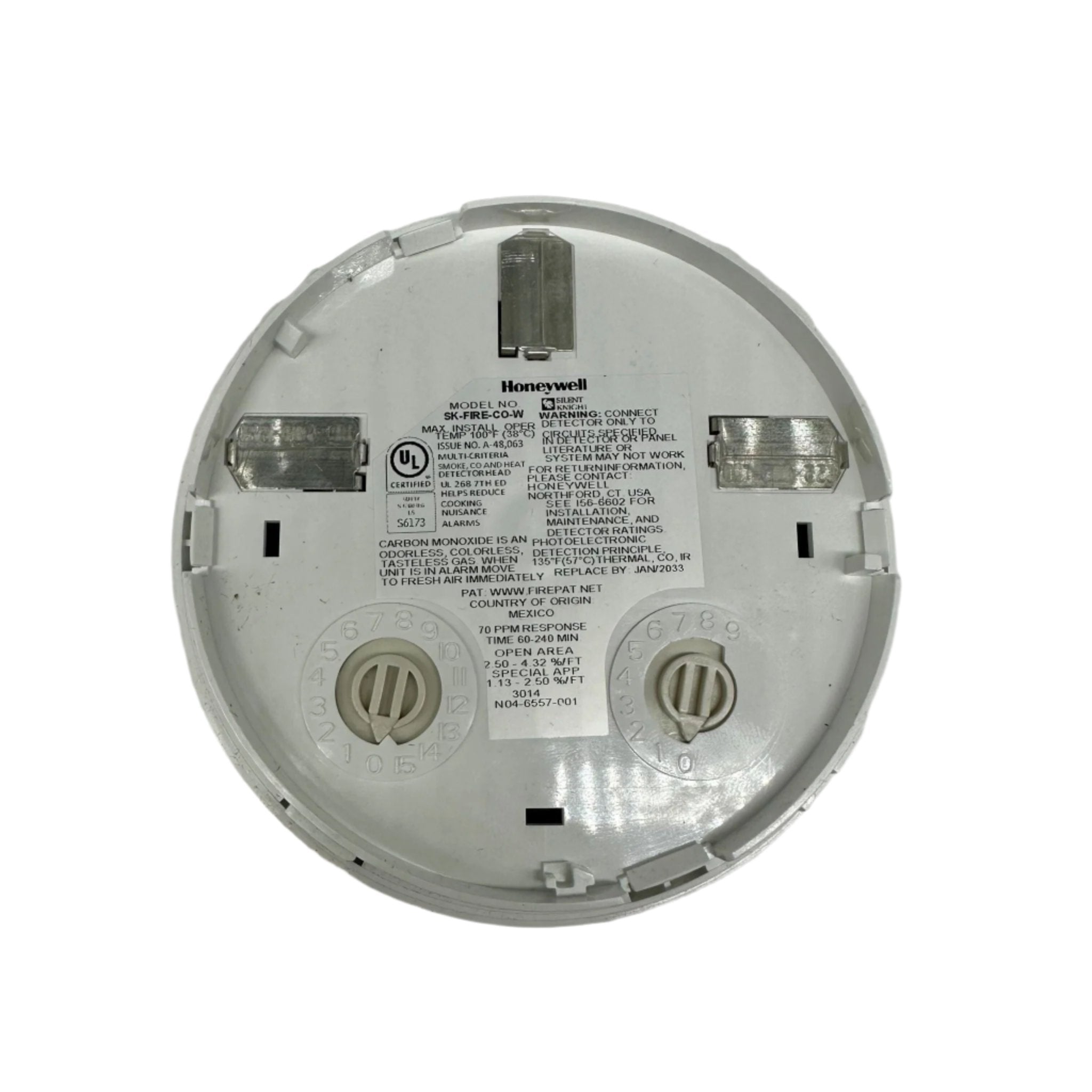

SK-FIRE-CO-W — a plug-in, addressable multi-criteria detector that provides both fire and carbon monoxide detection while using only one address on the SLC loop.

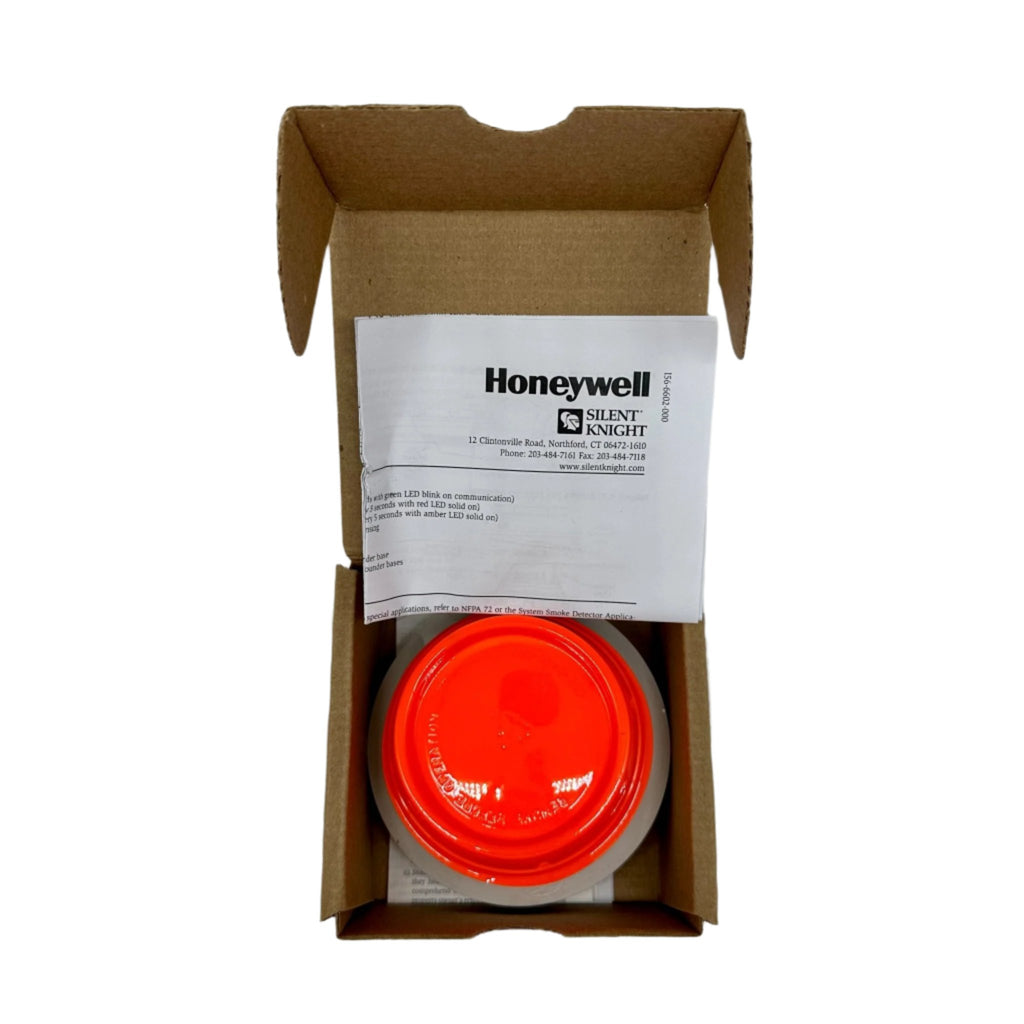

The detector combines four separate sensing elements to sense multiple components of a fire: smoke, CO, light/flame and heat. Photoelectric sensors detect airborne particles associated with smoke, thermal sensors detect heat and rate-of-rise (135°F fixed temperature threshold), and infrared sensors discern light patterns in the environment as an additional data point for alarm determination. For CO, a separate electrochemical sensing cell creates its own signal for life-safety carbon monoxide detection. Sophisticated algorithms combine all four sensor types to deliver heightened immunity to nuisance particulate — such as theatrical smoke — while retaining enhanced sensitivity to real fire, which supports use in applications where moderate to heavy nuisance conditions would cause single-sensing detectors to false alarm. The detector ships as a head only; a mounting base is ordered separately.
Specifications
| Type |
Plug-in addressable multi-criteria fire/CO detector (smoke, CO, heat, IR) |
| SLC addresses used |
One |
| Operating voltage range |
15 to 32 VDC |
| Operating current @ 24 VDC |
200 µA (one communication every 5 seconds, green LED blink on communication) |
| Maximum alarm current |
2 mA @ 24 VDC (one communication every 5 seconds, red LED solid on) |
| Maximum current |
4.5 mA @ 24 VDC (one communication every 5 seconds, amber LED solid on) |
| Isolator load rating |
0.0063 |
| Thermal threshold |
135°F fixed temperature, plus rate-of-rise |
| Operating temperature |
32°F to 100°F (0°C to 38°C) |
| Operating humidity |
15% to 90% relative humidity, non-condensing |
| Air velocity |
0 to 4000 ft./min. (0 to 1219.2 m/min.) |
| Height |
2.7" (69 mm) installed in B200S series sounder base |
| Diameter |
6.875" (175 mm) installed in B200S series sounder base |
| Weight |
3.4 oz. (95 g) |
| CO alarm threshold 70 ± 5 ppm |
Response time 60 to 240 minutes |
| CO alarm threshold 150 ± 5 ppm |
Response time 10 to 50 minutes |
| CO alarm threshold 400 ± 10 ppm |
Response time 4 to 15 minutes |
| Standards |
UL 268 7th Edition, UL 521, UL 2075 (CO sensitivity tested to the limits defined in UL 2034) |
| Agency listings |
UL S6173; FM Approved; CSFM 7272-0559:0517 |

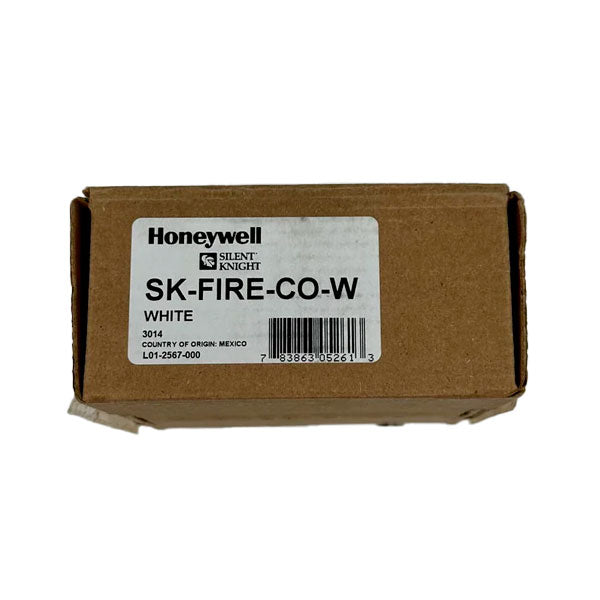

| Country of origin |
Mexico |
Installation notes
-
One address, two alarm types: the detector consumes only one SLC address but reports fire and CO as separate signals, so the panel can distinguish a fire alarm from a CO alarm on the same point.
-
Sounder base for distinct tones: B200S series intelligent sounder bases are recommended for use with this detector. They generate either a Temp 3 pattern for fire or a Temp 4 pattern for CO alarm indication — without a sounder base you lose that audible distinction at the device.
-
CO cell has a finite life: the CO cell is rated for 10 years and provides an end-of-life warning. Plan replacement of the detector on that cycle rather than treating it as an indefinite-life smoke detector.
-
Dimensions are base-dependent: the 2.7" height and 6.875" diameter published by Honeywell are measured with the detector installed in a B200S series sounder base. A plain 4" or 6" base yields a different profile.
-
Drift compensation: automatic drift compensation is applied to both the smoke and the CO sensors; RealTest® CO testing capability is supported.
-
Environmental limits: the 32°F to 100°F operating range rules out unconditioned attics, freezers and many mechanical spaces — confirm the ambient before specifying.
Related models
-
B200S-WH / B200S-IV — intelligent addressable sounder base, the recommended base, giving Temp 3 fire and Temp 4 CO patterns at the detector
-
B200S-LF-WH / B200S-LF-IV — low-frequency versions of the sounder base for sleeping-area applications
-
B501-WHITE — plain 4" mounting base when no local sounder is required
-
B300-6 — 6" flanged mounting base, covers larger existing back-box openings
-
B224BI-WH — isolator base, and B224RB-WH relay base, for loop isolation or local relay contacts
-
RA100Z — remote LED annunciator for detectors mounted out of sight
Specifications taken from the Honeywell Silent Knight data sheet "SK-FIRE-CO-W Multi-Criteria Fire/CO Detector," document SK-62001:C (2/24/2020). Manufacturer specifications are subject to change without notice.
