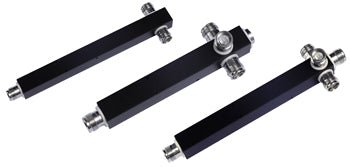

RFS Technologies PDS2E-555/6000 Broadband Power Splitter for Wireless & Indoor Application, Support 555-6000MHz with 2-way
The RFS PDS2E-555/6000 is a 2-way broadband power splitter from the PDSE series covering 555 to 6000 MHz with N female connectors. It splits the signal evenly with low insertion loss, is rated for 300 W and has a PIM-optimized design, which suits it to multi-band distributed antenna systems and use with RADIAFLEX radiating cable. The housing is rated IP66.
Key Features
- Broadband 555-6000 MHz
- 2-way split (1 input, 2 outputs)
- N female interfaces
- PIM-optimized design: 160 dBc @ 2 x 43 dBm
- 300 W power rating
- Low insertion loss; small size and low weight
- IP66; RoHS compliant
Specifications
| Frequency range |
555-6000 MHz |
| Number of output ports |
2 |
| Split loss |
3 dB |
| Insertion loss |
0.2 dB @ 555-2700 MHz; 0.35 dB @ 2700-6000 MHz |
| VSWR |
1.25 @ 555-4900 MHz; 1.3:1 @ 4900-6000 MHz |
| Power rating |
300 W |
| PIM, 3rd order @ 2 x 43 dBm |
160 dBc |
| Input impedance |
50 ohm |
| Connectors |
N female |
| Dimensions (L x W x H) |
270 x 66 x 25 mm (10.63 x 2.60 x 0.98 in) |
| Net weight (+/- 10%) |
0.43 kg (0.95 lb) |
| Temperature range |
-25 to +65 C (+160 C for 2 hours in the event of fire when encased in a DragonSkin cabinet) |
| IP level |
IP66 |
| RoHS |
Compliant |
Compatible With
- RFS RADIAFLEX radiating cable systems
- RFS DragonSkin 2-hour cabinet (for fire-rated installations)
