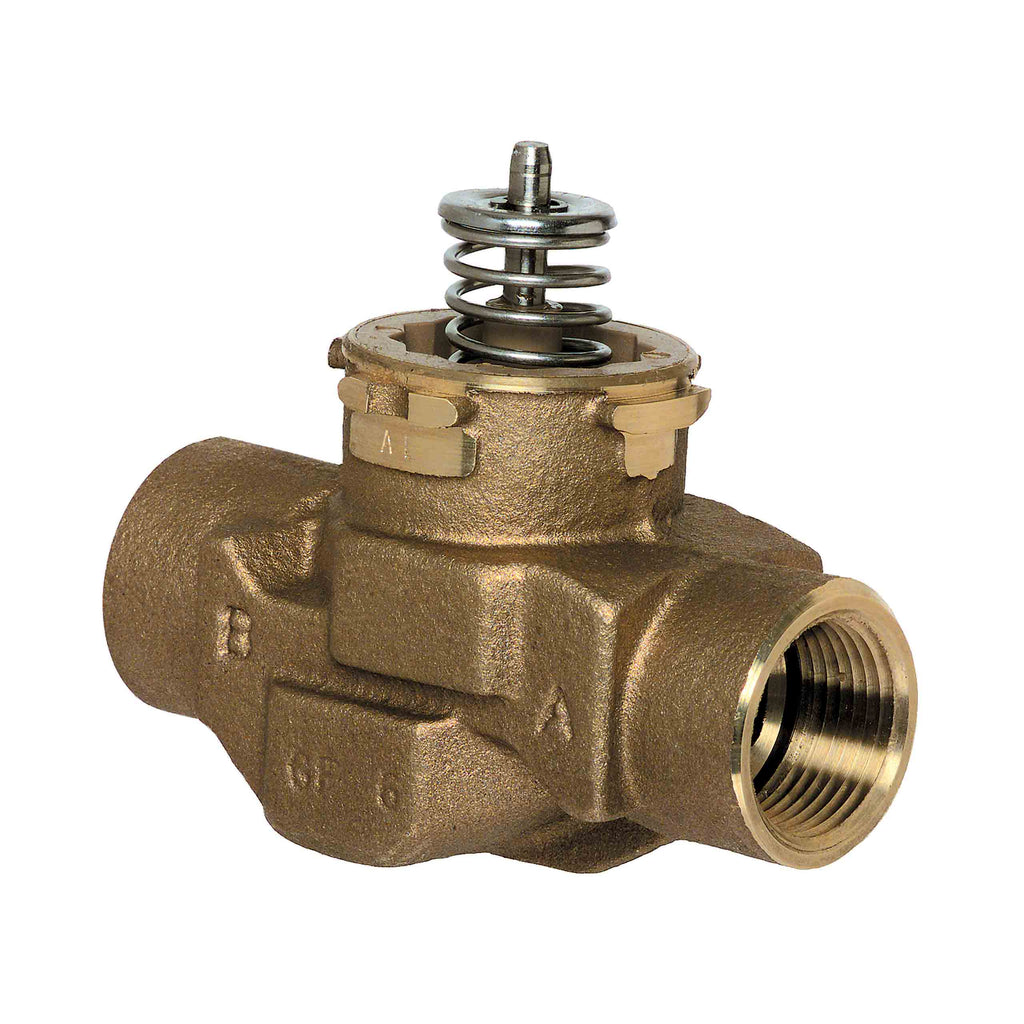

Two-way Cartridge Cage Valves are intended for hydronic applications in a normal indoor environment to control flow of hot/chilled water glycol solution up to 60% concentration. These valves are designed for zone control of heating/cooling systems.
Product Features
- Quick open, linear, and equal percentage flow characteristics available
- Bi-directional installation
- 3000-series valves for floating and modulating non-fail safe applications
- 1000-series valves for two-position control
- High close-off rating independent of Cv
- Available with a variety of North American and international pipe fittings
- No tools required for actuator installation or removal
- Actuator removal does not require draining system
- Service is by replacement of cartridge, not valve body
- Cartridge replacement rebuilds valve to factory-new condition
Product Specifications
- Valve Type: Cartridge Cage Valve
- Body Pattern: Two-way, Straight-Through
- Flow Characteristic: Linear
- Controlled Medium: Chilled or hot water with up to 60% Glycol
- Connection Type: NPT (Female)
- Max. Safe Operating Pressure: 300 psi
- Maximum Differential Pressure Ratings (Close-off) (psi): 60 psi
- Valve Action: Stem up to close A port
- Actuation: Must be purchased separately
- Stem Travel: 2/5 in.
- Ambient Temperature: 32 to 150 F
