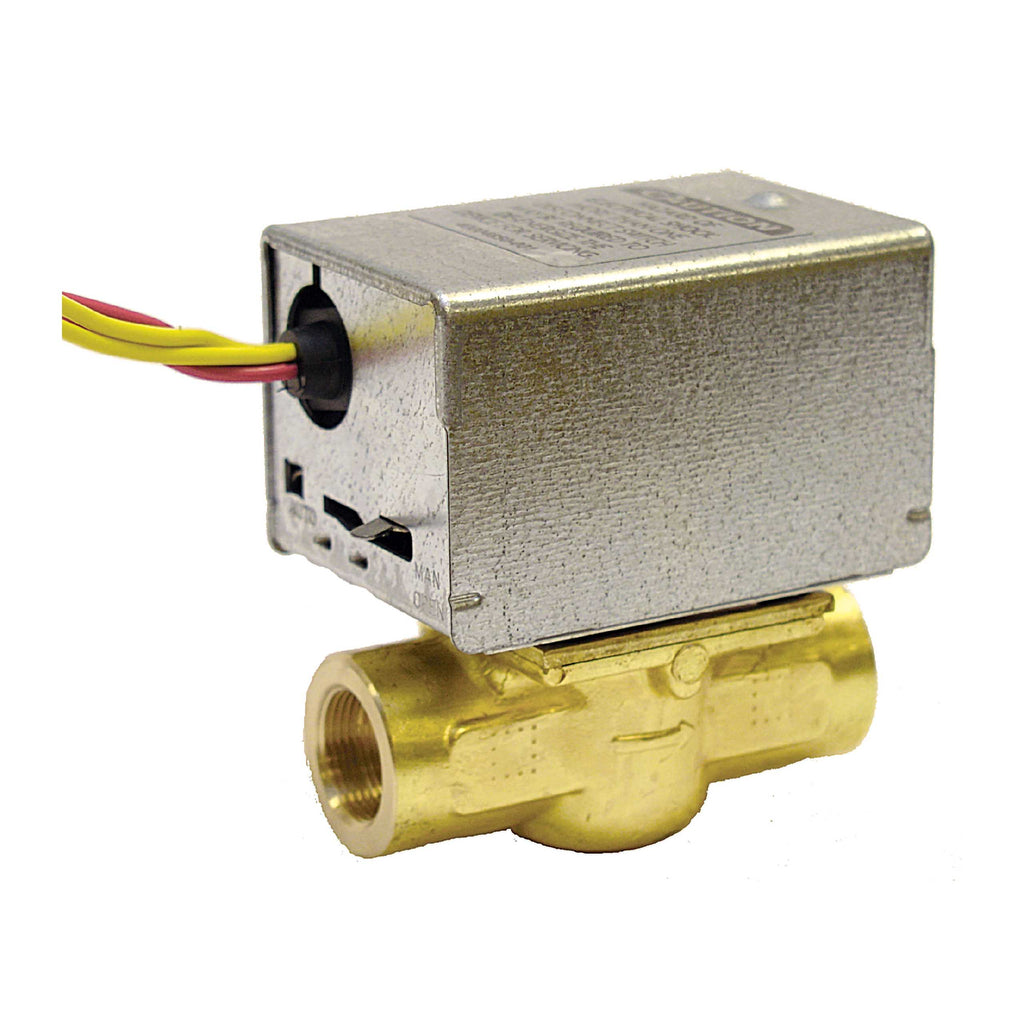

Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.
Product Features
- Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
- All models may be installed without disassembling the valve.
- Compact construction for easy installation.
- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
- Actuator motor may be replaced without removing the valve body or draining the system.
Product Specifications
- Zone Valve
- 1/2" Inverted Flare
- 24 Vac
- 15 Second Nominal Opening Time
- 2 Way
- 20 Psi Maximum Differential Pressure Rating ( Closeoff )
- 18 " Leads
- 3.5 Cv
- Spring Return to Close
- Normally Closed
- Manual Opener
