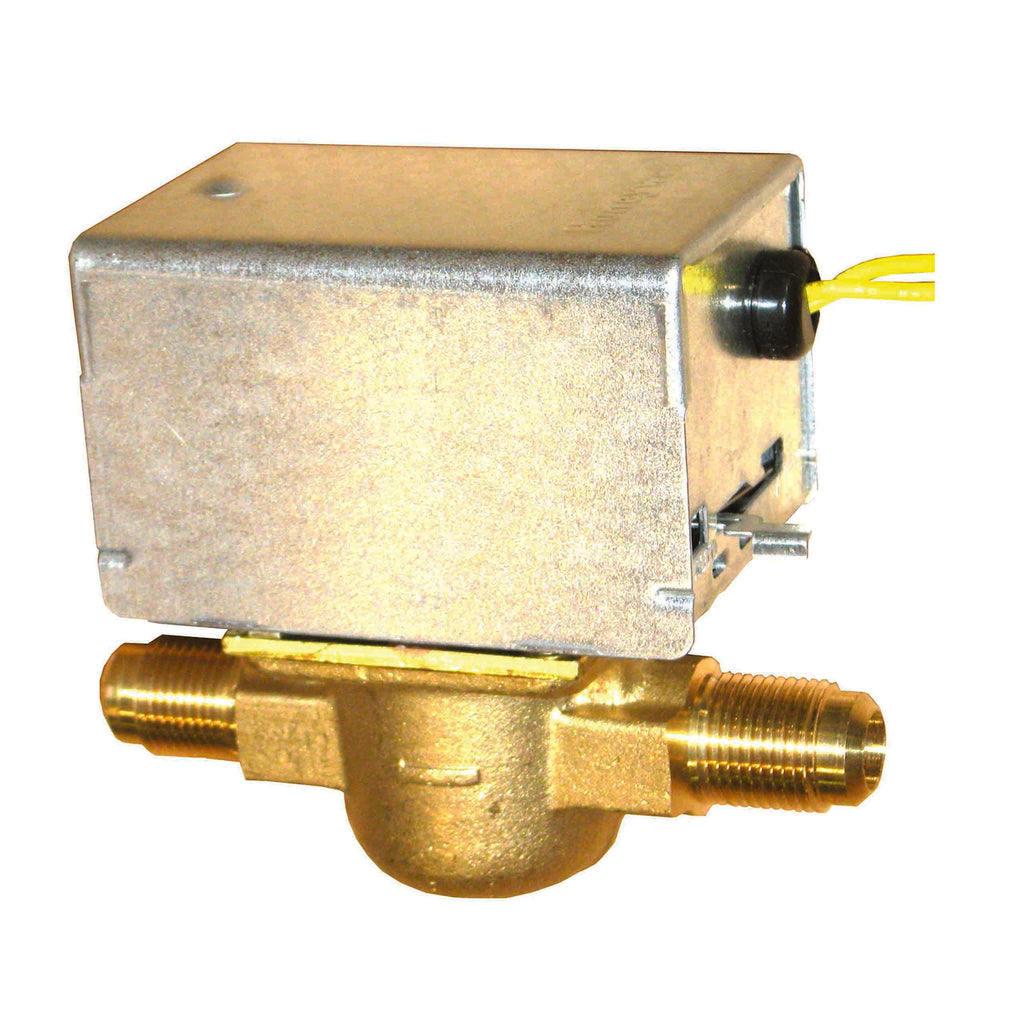

Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.
- Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
- All models may be installed without disassembling the valve.
- Compact construction for easy installation.
- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
- Actuator motor may be replaced without removing the valve body or draining the system.
- Application: Hydronic Control
- Connection Type: Flare
- Pipe Size (inch): 3/8 in.
- Body Pattern: Two-way, Straight-through
- Capacity (Cv): 3.5 Cv
- Capacity (Kv): 3 Kv
- De-energized Position: Normally Closed
- Maximum Close-off Pressure (psi): 20 psi
- Fluid Temperature Range (F): 50 F to 200 F
- Electrical Connections (in.): 18 in. leads
- Power Consumption: 7.7 VA
- Nominal Timing (sec, min): 15 sec
- Valve Action : Spring return to close
- Maximum Ambient Temperature (F): 125 F
- Type: 2 position
- Static Pressure (psi): 125 psi
- Materials (Body): Brass
- Materials (Seat): Brass
- Materials (Stem): Stainless Steel
- Materials (Ball Plug): Buna-N (NBR) Rubber Ball
- Materials (Packing O-rings): EPDM rubber
- Voltage: 24 Vac
- Frequency: 60 Hz
- Frequency: 50 Hz
- Manual Opener: Yes
- Comments: Valve designed for cycling (not constantly powered on) applications.
- Comments: Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water.
