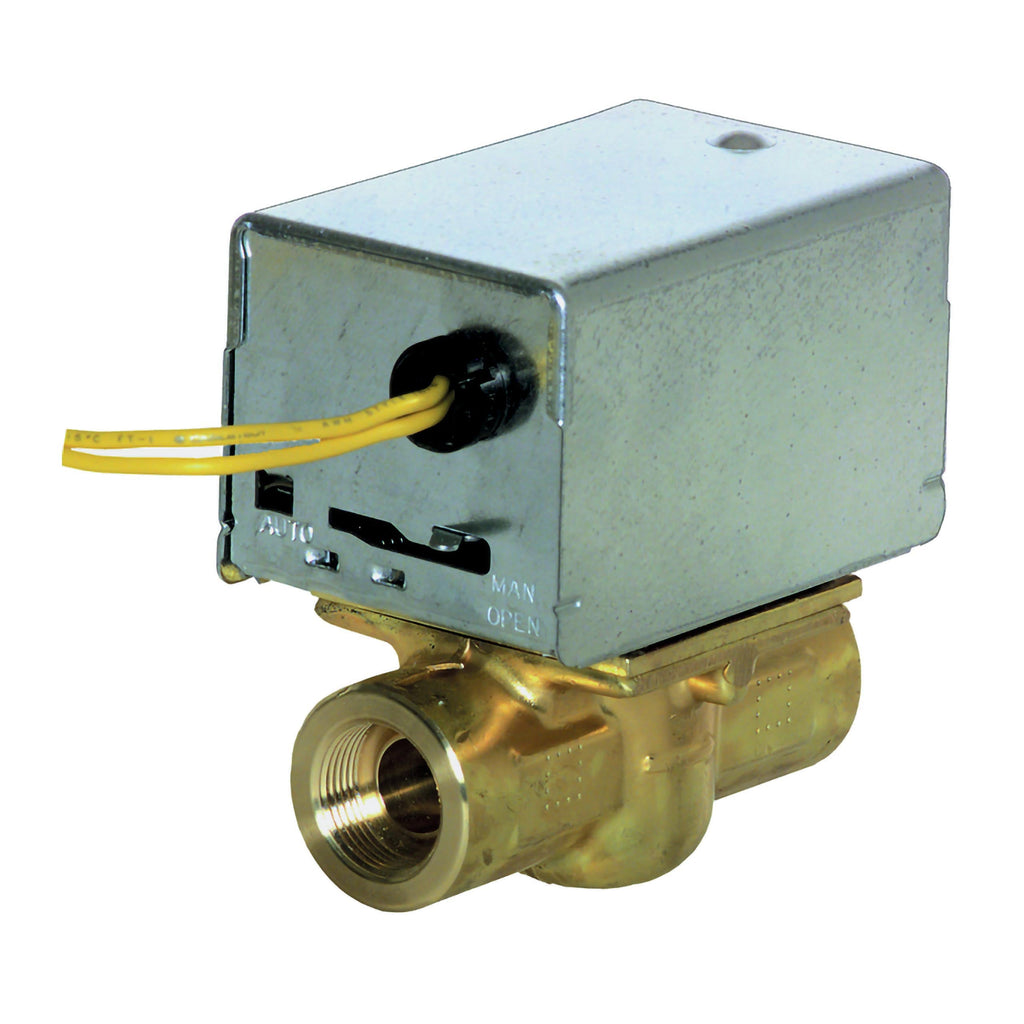

Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.
Product Feature:
- Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
- All models may be installed without disassembling the valve.
- Compact construction for easy installation.
- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system;
- Actuator motor may be replaced without removing the valve body or draining the system
Product Specifications
- Pipe Size (DN): DN15
- Fluid Temperature Range: 50 F to 200 F
- Electrical Connections: 18" leads
- Power Consumption: 7.7 VA
- Nominal Timing: 15 sec
- Capacity: 3.5 Cv
- Valve Action: Spring return to close
- Dimensions: 4" high x 3-5/8" wide x 2-3/8" deep
- Static Pressure (psi): 125 psi
- Maximum Differential Pressure Ratings (Close-off) (psi) 20 psi
- Materials (Body + Seat): Brass
- Materials (Stem): Stainless Steel
- Materials (Ball Plug): Buna-N (NBR) Rubber Ball
- Materials (Packing O-rings): EPDM O-rings
- Voltage: 24V
- Manual Opener: Yes
- Tradeline Value: Tradeline
