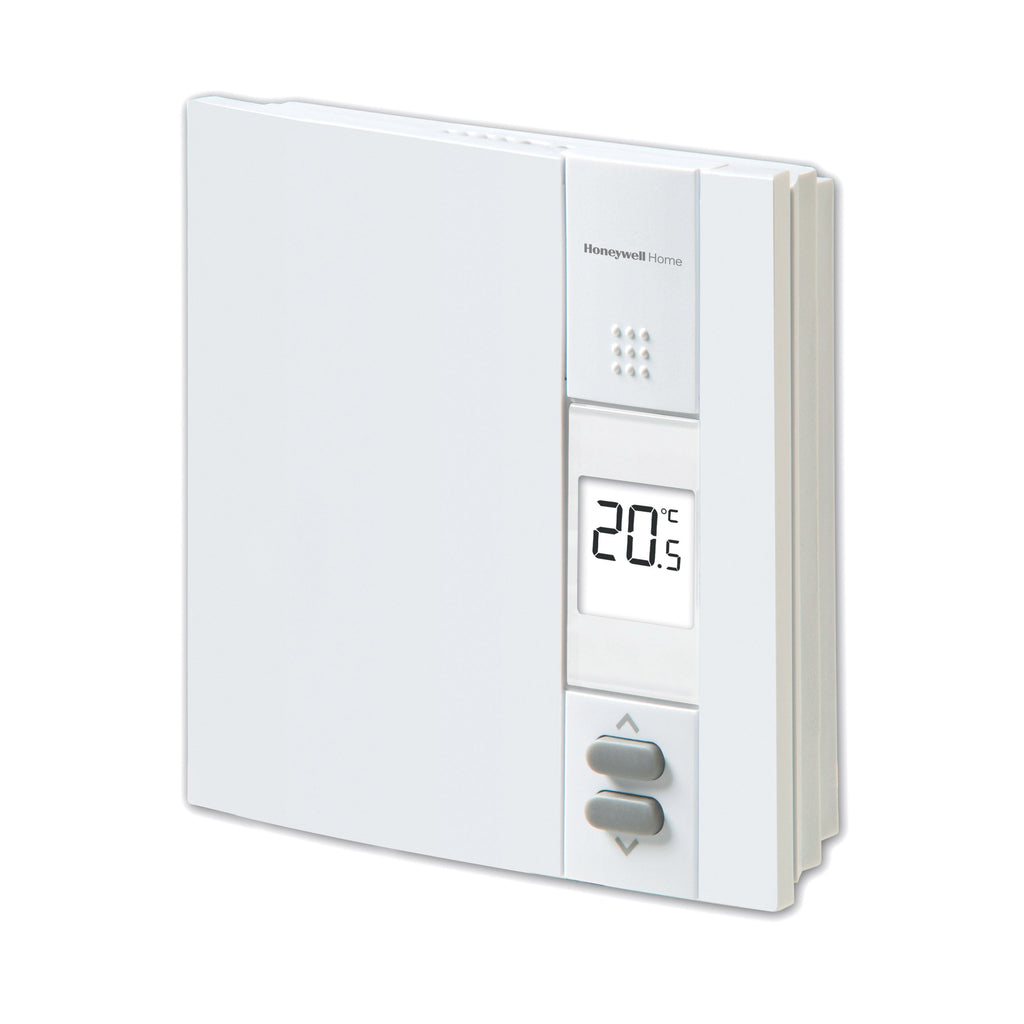

Digital Non-Programmable Line Volt Thermostat for Electric Heating with TRIAC (120v/208v/240v)
Product Specifications
- Application - Electric Heating,Baseboard heater,Convector or Fan-forced Heater
- Dimensions (in.) - 5.0 in. X 5.0 in. X 1.42 in.
- Dimensions (mm) - 127 mm x 127 mm x 36 mm
- Comments - battery-free,Min & Max temperature locks
- Item Type - Product
- Mounting - Vertical
- Electrical Ratings - Minimum Load: 1.25 A (resistive only) 300 W @240 Vac, 150 W @ 120 Vac,Maximum Load: 16.7 A (resistive only), 4000 W @ 240 Vac, 2000 W @ 120 Vac
- Frequency - 60 Hz
- Approvals, Underwriters Laboratories Inc. - Listed
- Electrical Connections - 6 in. (150 mm) tinned copper lead wires
- Supply Voltage - 120 Vac; 208 Vac; 240 Vac
- Switch Positions (System) - °C/°F
- Power Method - Hardwired
- Sensor Element - Thermistor
- Accuracy (F) - 0.27 F
- Accuracy (C) - 0.15 C
- Color - White
- Ambient Temperature Range (F) - 32 F to 122 F
- Ambient Temperature Range (C) - 0 C to 50 C
- Switching Action - SPST
- Switch Type - Triac
- Display Size - 0.98 sq. in.
- Setting Temperature Range (F) - 40 F to 85 F
- Setting Temperature Range (C) - 5 C to 30 C
