Information
Category:
Fire Alarms
Stock:
Sold Out - Call or Email for Lead Time
Weight: 0.98 lb
Brand: Resideo
Description

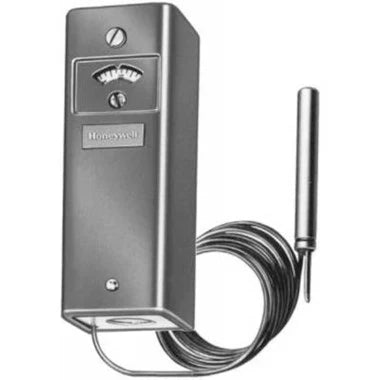

Aquastat+ Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks, and other applications where temperature control is required.
Features
Remote temperature sensing element detects and responds rapidly to temperature changes.
Visible control point scale and external adjustment screw permit easy setting.
Horizontal or vertical mounting of the remote element into boiler, tank, or other container.
Case mounts to a vertical surface.
Product Specifications
Description : Circulator Control and Low Limit Aquastat Controller with 100 F to 240 F operating temperature, 5 F to 30 F adj. Differential and 66 in. capillary Application : Circulator Control and Low Limit Bulb Size (in.) : 3/8 in. x 2 7/8 in. copper Bulb Size (mm) : 10 mm x 73 mm copper Capillary Length (in.) : 66 in. Switching Action : SPDT Operating Temperature Range (F) : 100 F to 240 F Operating Temperature Range (C) : 38 C to 116 C Electrical Ratings (millivolt) : 0.25 A @ 0.25 to 12 Vdc Electrical Ratings (AFL) : 8A @ 120 Vac Electrical Ratings (AFL) : 5.1A @ 240 Vac Electrical Ratings (ALR) : 48A @ 120 Vac Electrical Ratings (ALR) : 30.6A @ 240 Vac Differential Temperature (F) : 5 F to 30 F adj. Differential Temperature (C) : 3 C to 17 C adj. Maximum Ambient Temperature (F) : 150 F Maximum Ambient Temperature (C) : 66 C Case Dimensions (in.) : 5 5/8 in. high x 2 in. wide x 2 1/8 in. deep Case Dimensions (mm) : 143 mm high x 51 mm wide x 70 mm deep Mounting : Horizontal or Vertical Approvals, Underwriters Laboratories Inc : UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2 Approvals, Canadian Standards Association : Certified: File No. LR95329-1 Includes : 66 in. capillary
