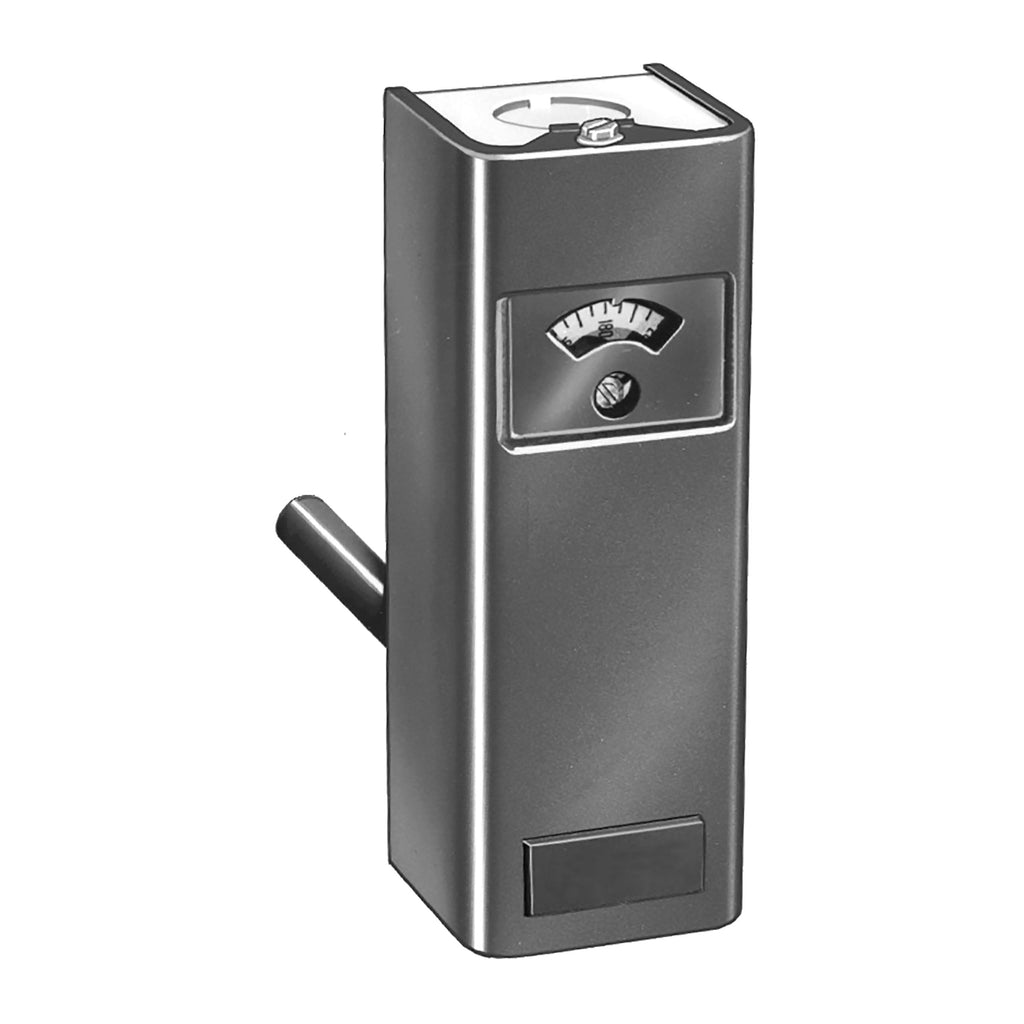

Resideo L4006B1007/U Circulator Aquastat, 100-240-Degree(F) range, 5-Degree(F) Differential, L4006B1007

Description:
Circulator Aquastat Controller with 100F to 240F operating temperature, 5F fixed Differential

Includes:
1 1/2 in. (38 mm) insulation

Application:
Circulator
Insulation Depth (in.): 1 1/2 in.
Insulation Depth (mm): 38 mm
Bulb Size (in.): 3/8 in. x 2 7/8 in. copper
Bulb Size (mm): 10 mm x 73 mm copper
Spud Size (in.): 1/2 in.
Spud Size (mm): 13 mm
Switching Action SPST, contacts make on temperature rise.
Operating Temperature Range (F): 100F to 240F
Operating Temperature Range (C): 38C to 116C
Electrical Ratings (millivolt): 0.25 A @ 0.25 to 12 Vdc
Electrical Ratings (AFL): 8A @ 120 Vac. 5.1A @ 240 Vac
Electrical Ratings (ALR): 48A @ 120 Vac. 30.6A @ 240 Vac
Differential Temperature (F): 5F Fixed
Differential Temperature (C): 3C fixed
Maximum Ambient Temperature (F): 150F
Maximum Ambient Temperature (C): 66C
Case Dimensions (in.): 5 5/8 in. high x 2 in. wide x 2 1/8 in. deep
Case Dimensions (mm): 143 mm high x 51 mm wide x 54 mm deep
Mounting: Horizontal or Vertical Mounting
Approvals, Underwriters Laboratories Inc: UL Component
Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2
Approvals, Canadian Standards Association: Certified: File No. LR95329-1
Approvals, American Gas Association IAS: AGA Certified
