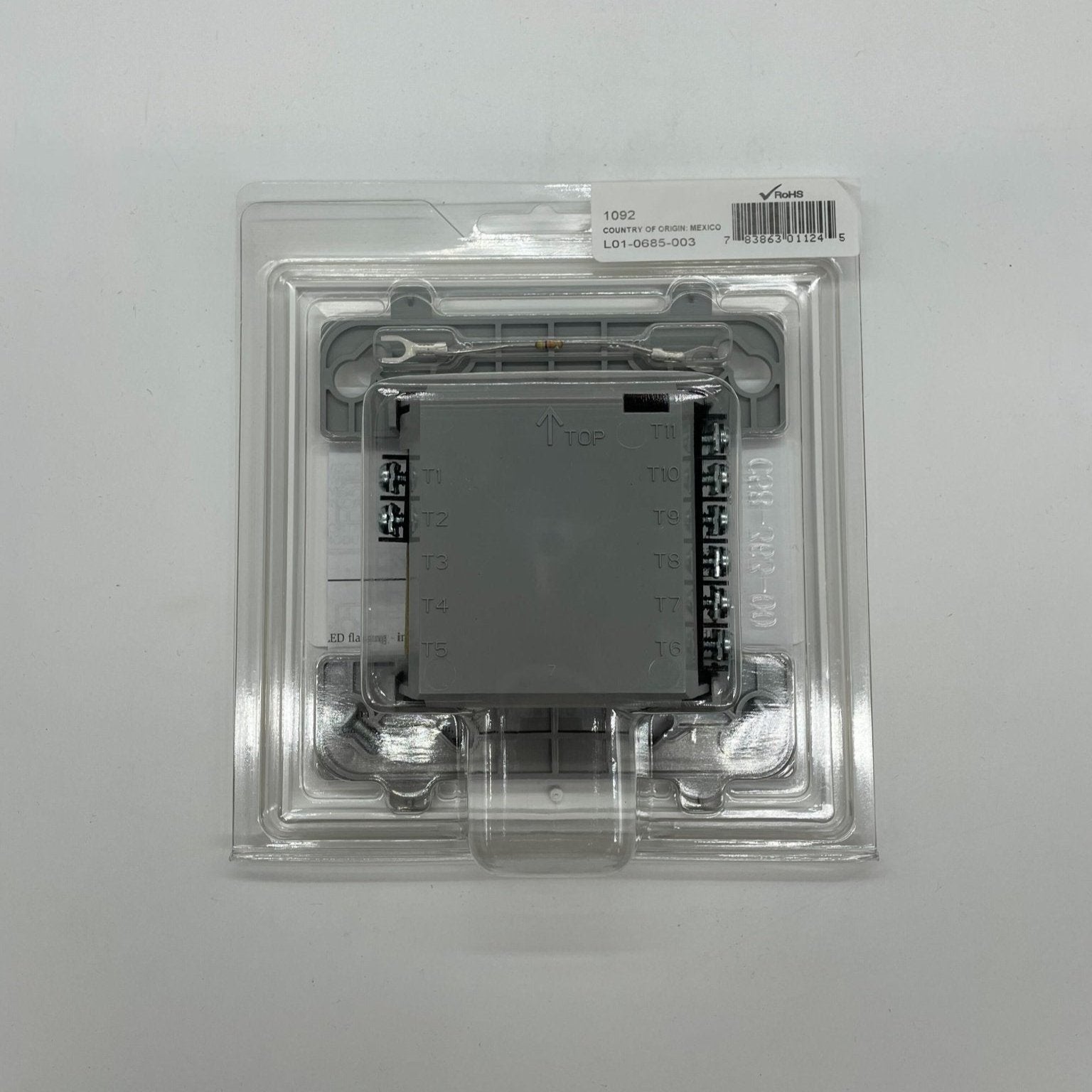

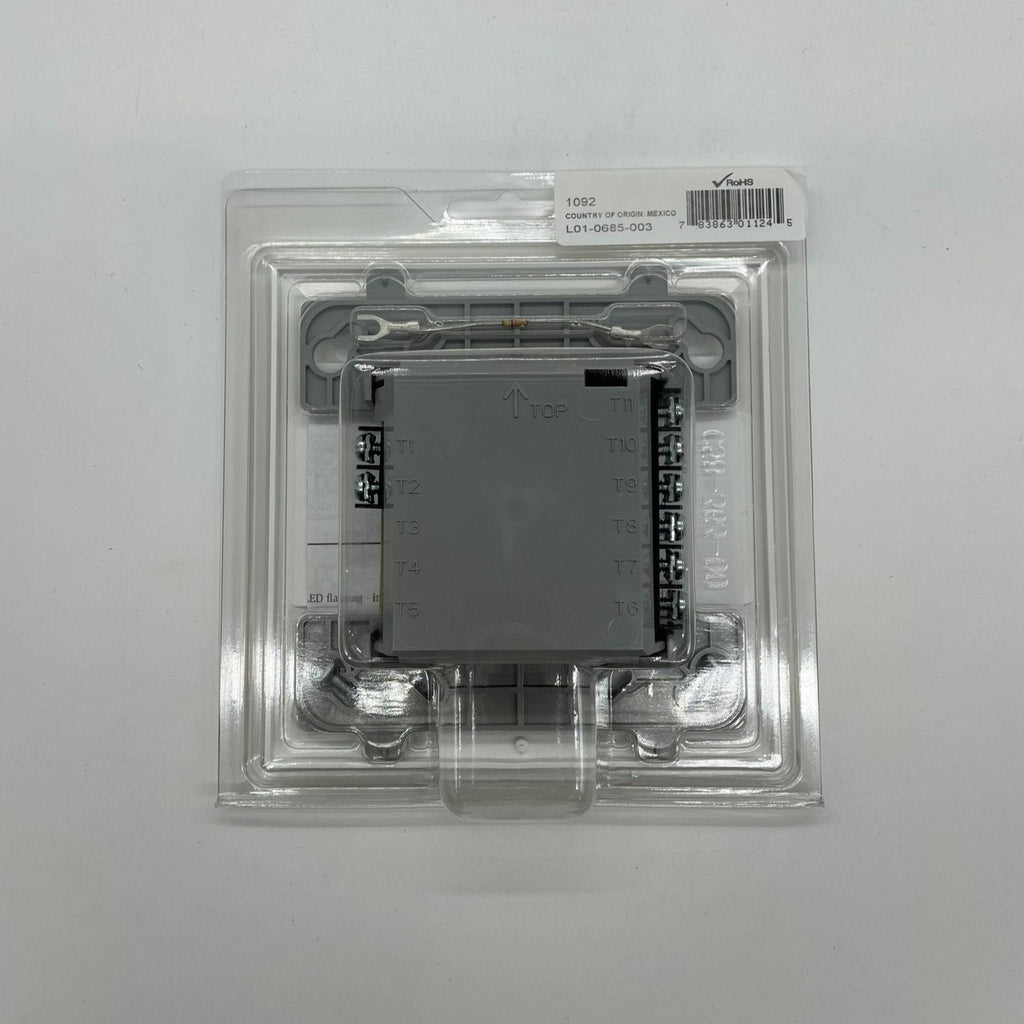

NOTIFIER FCM-1 — an intelligent addressable control module that gives NOTIFIER intelligent fire alarm control panels a supervised circuit for notification appliances (horns, strobes, speakers, etc.).
Addressability allows the FCM-1(A) to be activated either manually or through panel programming on a select zone or area-of-coverage basis. The module is configured for a single Class B (Style Y) or Class A (Style Z) notification appliance circuit and is used to switch 24 VDC audible/visual power or high-level audio for speakers up to 70.7 Vrms. Internal circuitry and the relay are powered directly from the two-wire SLC loop; the notification appliances themselves are fed from a separate external supply, which is always relay-isolated from the communication loop so a trouble on the external supply cannot interfere with the rest of the system. On command from the panel the module disconnects supervision and connects the external supply across the load in the proper polarity — that disconnection is what gives the panel positive confirmation the control relay actually turned on. Two rotary switches set the address by direct dial, and a built-in, non-settable type code identifies the module to the panel.
Specifications
| Normal operating voltage |
15 to 32 VDC |
| Maximum current draw |
6.5 mA (LED on) |
| Average operating current |
350 µA direct poll; 375 µA group poll with LED flashing; 485 µA max. (LED flashing, NAC shorted) |
| Maximum NAC line loss |
4 VDC |
| External supply voltage (terminals T10 and T11) |
Maximum (NAC): regulated 24 VDC. Maximum (speakers): 70.7 Vrms, 50 W |
| Drain on external supply |
1.7 mA maximum using 24 VDC supply; 2.2 mA maximum using 80 Vrms supply |
| Max NAC current ratings |
Class B wiring: 3 A. Class A wiring: 2 A |
| Circuit configuration |
Single Class B (Style Y) or Class A (Style Z) notification appliance circuit |
| Addressing |
Two rotary switches, direct-dial entry 01–159 for FlashScan loops, 01–99 for CLIP mode loops |
| Temperature range |
32°F to 120°F (0°C to 49°C) |
| Humidity range |
10% to 93% non-condensing |
| Dimensions |
4.5 in. (114.3 mm) high x 4 in. (101.6 mm) wide x 1.25 in. (31.75 mm) deep |
| Mounting |
Mounts to a 4 in. (101.6 mm) square x 2.125 in. (53.975 mm) deep box |
| Face plate |
Off-white heat-resistant plastic |
| Accessories |
SMB500 electrical box; CB500 barrier |
| Listings and approvals |
UL S635; ULC S3705 (A version only); FM Approved; CSFM 7300-0028:0219; MEA 14-00-E; FDNY COA #6067, #6065 |
| Country of origin |
Made in the U.S.A. |
Installation notes
-
CB500 barrier: the control module barrier is required by UL for separating power-limited and non-power-limited wiring when they share the same junction box as the FCM-1(A).
-
Class A speakers need a capacitor: the A2143-20 capacitor is required for Class A (Style Z) operation of speakers.
-
ULC applies to the A version only: the ULC S3705 listing covers the FCM-1A; the plain FCM-1 carries the UL S635 listing.
-
Releasing service: refer to the SLC Manual (PN 51253) for details on releasing applications with the FCM-1(A). New FlashScan releasing applications use the FCM-1-REL — see datasheet DN-60390.
-
External power required: the module itself is loop-powered, but the notification appliances need their own regulated 24 VDC supply (or audio for speakers) landed on T10/T11. Budget the 4 VDC maximum NAC line loss when sizing circuit conductors.
-
Documentation: FCM-1(A) installation document I56-1169; NOTIFIER SLC Wiring Manual document 51253.
Related models
-
FCM-1A — same control module with ULC listing (the “A” suffix indicates the ULC listed model).
-
FRM-1(A) — intelligent addressable relay module; instead of a supervised NAC it provides two Form-C dry contacts that switch together, for fans, dampers, door holders and four-wire smoke power reset.
-
FCM-1-REL — addressable releasing control module for FlashScan suppression releasing applications, using a redundant arm-and-confirm protocol; see DN-60390.
-
SMB500 — optional surface-mount backbox. CB500 — control module barrier. A2143-20 — capacitor for Class A speaker operation.
Specifications taken from the NOTIFIER data sheet “FCM-1(A) & FRM-1(A) Series Control and Relay Modules,” document DN-6724:B3 (2/17/2011). Manufacturer specifications are subject to change without notice.
