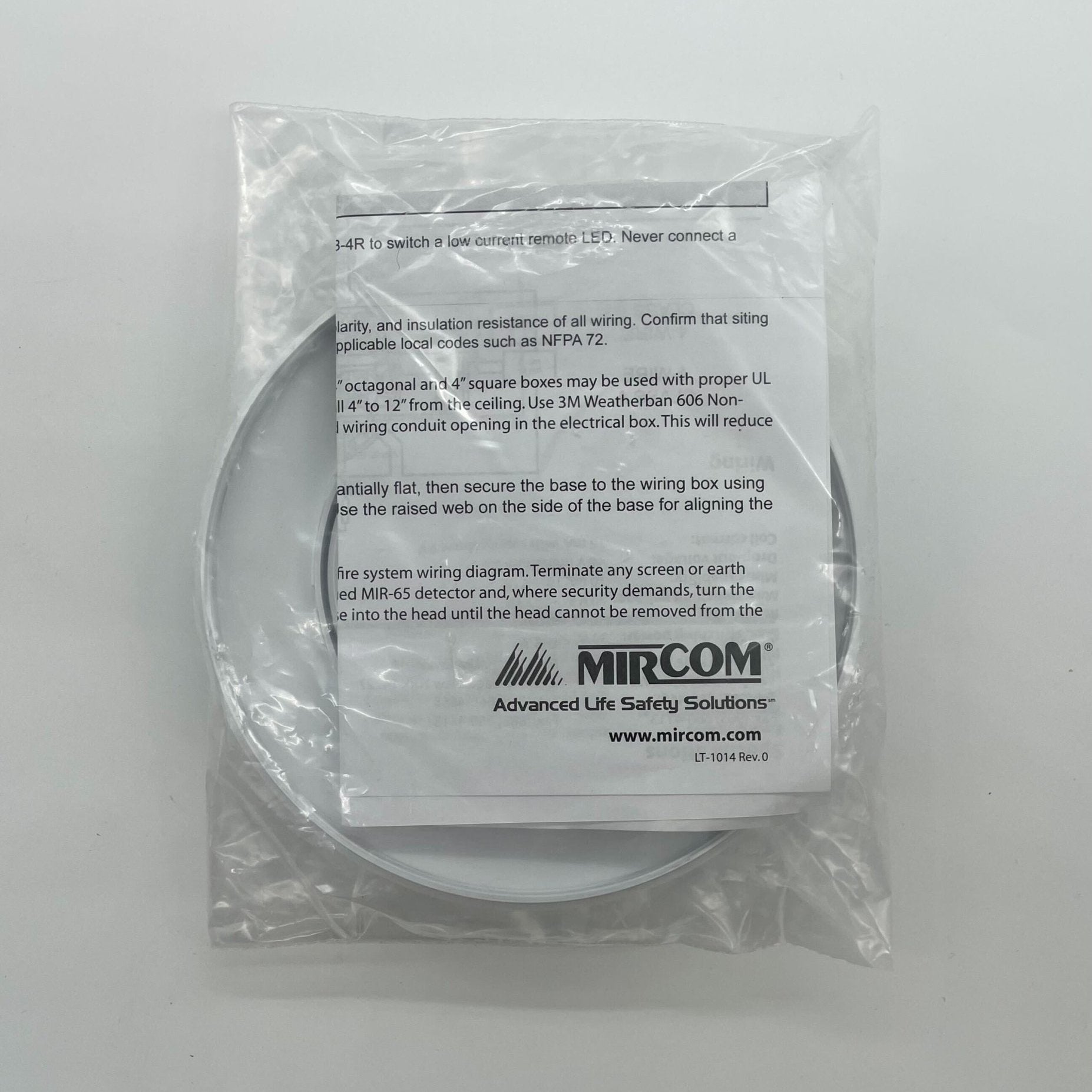

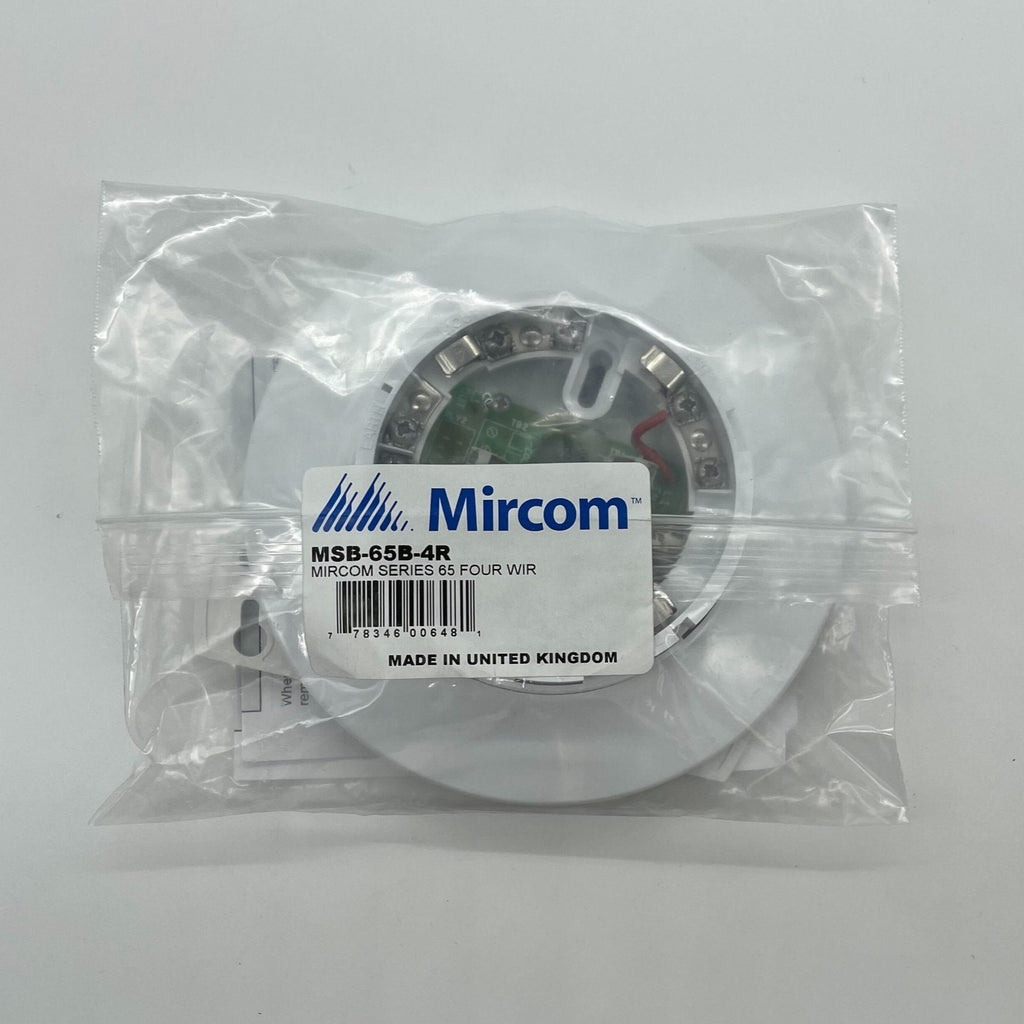

Mircom MSB-65B-4R Series 65 Four-Wire Base C/W Auxiliary Form Ft.Cft. Contact
The MSB-65B-4R is the four-wire auxiliary relay base for Mircom MIR-65 series conventional detector heads, supplied with a low-profile skirt and spanner bar. MIR-65 relay bases are for control units with a resettable 4-wire detector power supply and alarm initiating circuits, and where codes allow they can give volt-free control signals to auxiliary systems such as automatic door closers.
Key Features
- 4-wire auxiliary relay base
- Supplied with low-profile skirt and spanner bar
- For control units with resettable 4-wire detector power and alarm initiating circuits
- Volt-free control signals for auxiliary systems such as door closers (where local codes allow)
- One-way-only fit, earth ground connection, accepts the head locking screw
Specifications
| Model |
MSB-65B-4R |
| Supply voltage |
9 to 33 VDC (see control panel power supply data for 4-wire compatibility) |
| Max. switching power |
30 W, 50 VA |
| Max. switching current |
1 A (resistive load) |
| Max. switching voltage |
50 VAC, 75 VDC |
| Ambient temperature |
-4 F to 158 F (-20 C to 70 C), no condensation or icing |
Compatible With
- Mircom MHD-65-135 / MHD-65-200 heat detectors
- Mircom MPD-65P photoelectric smoke detector
- Mircom MID-65I ionization smoke detector
- 4-wire conventional zone circuits with resettable 9-33 VDC supply
