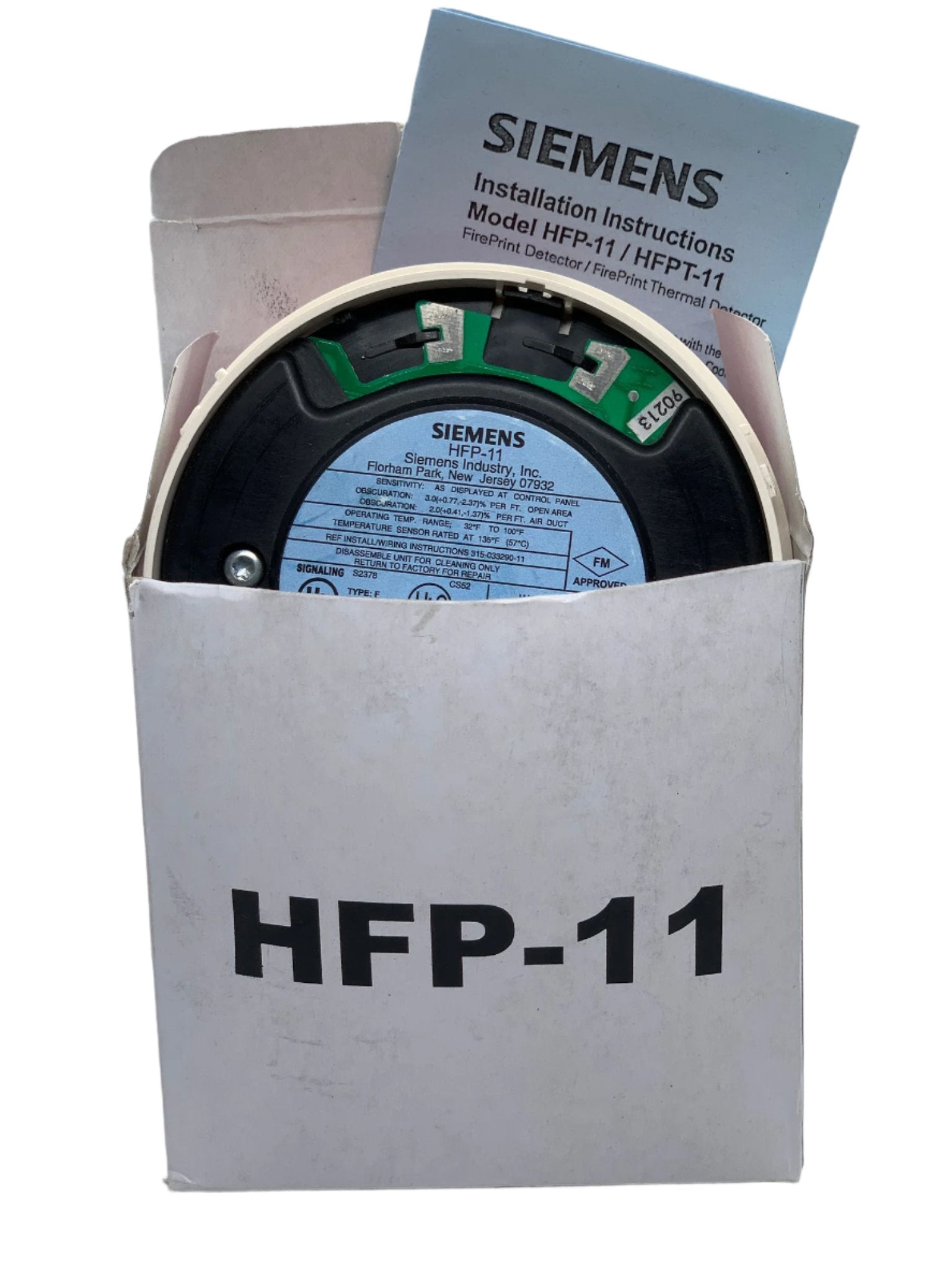

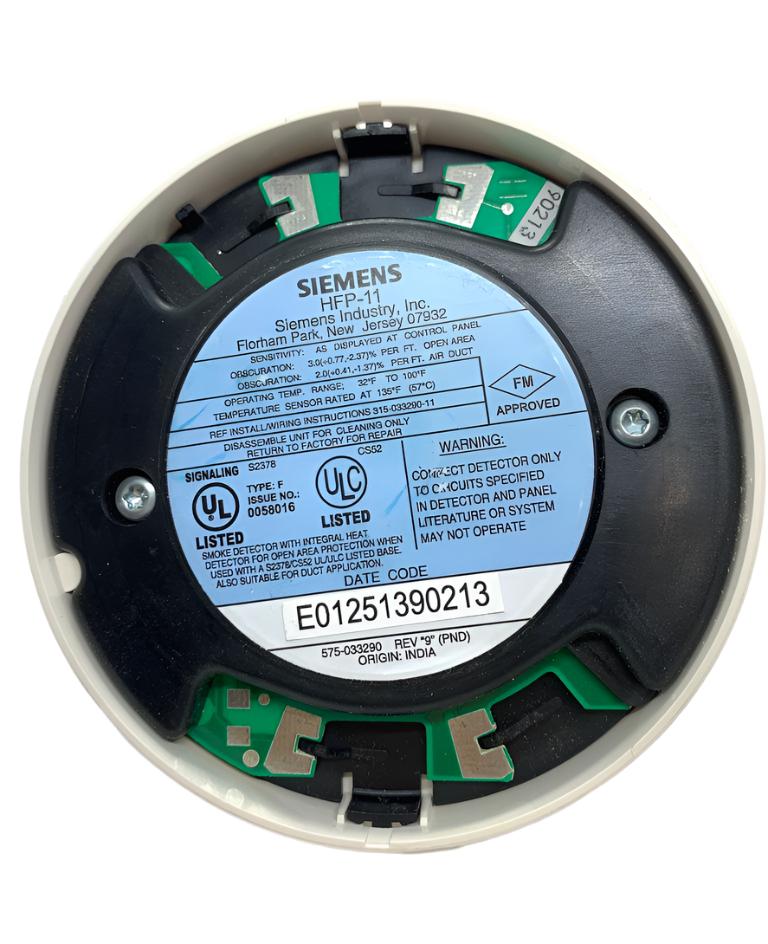

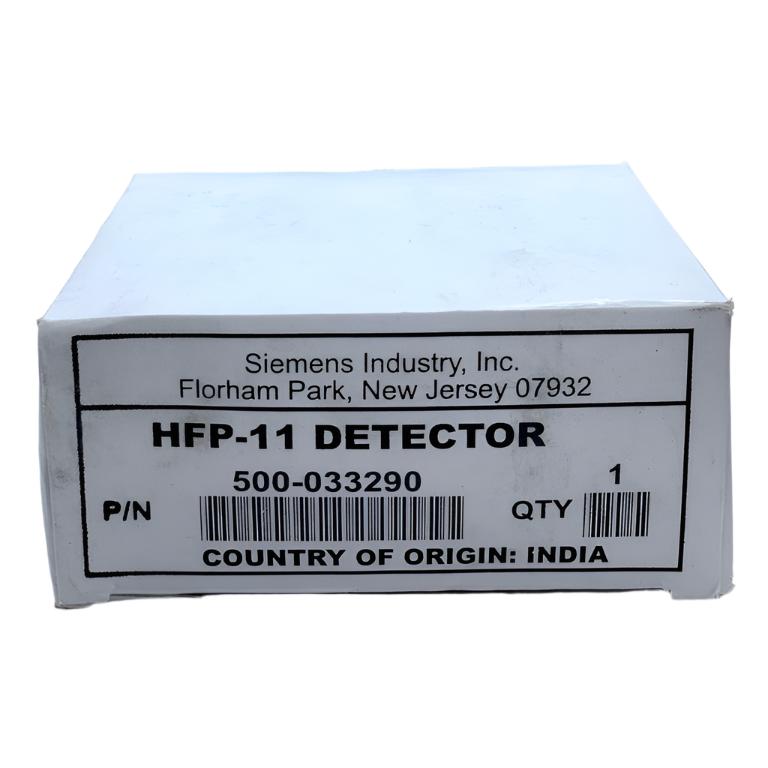

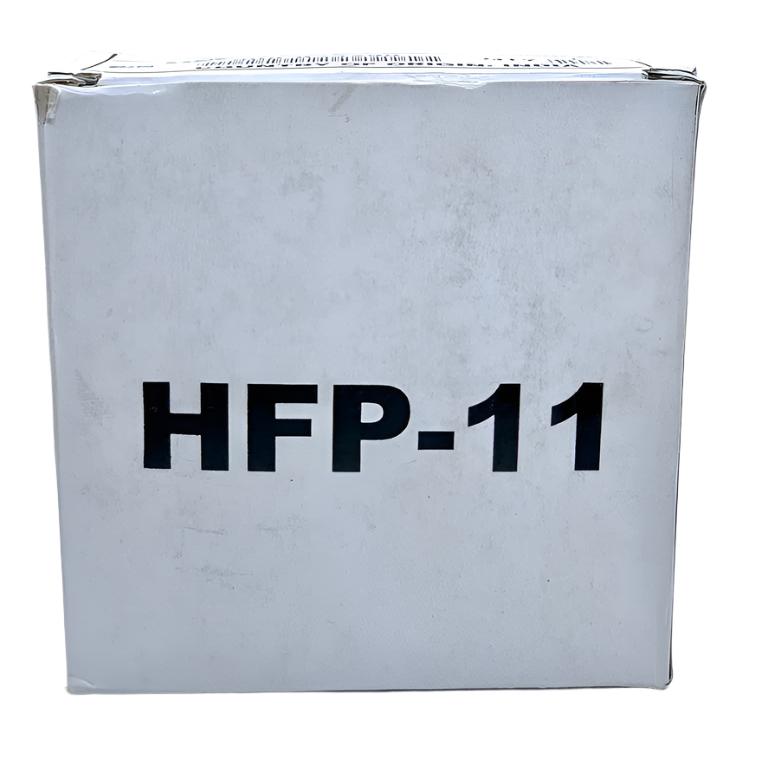

Siemens HFP-11 (500-033290) — plug-in, two-wire addressable multi-criteria fire detector that combines a dust-resistant photoelectric smoke chamber with a solid-state thermal sensor, for use with FireFinder XLS and FS-250 fire alarm control panels.

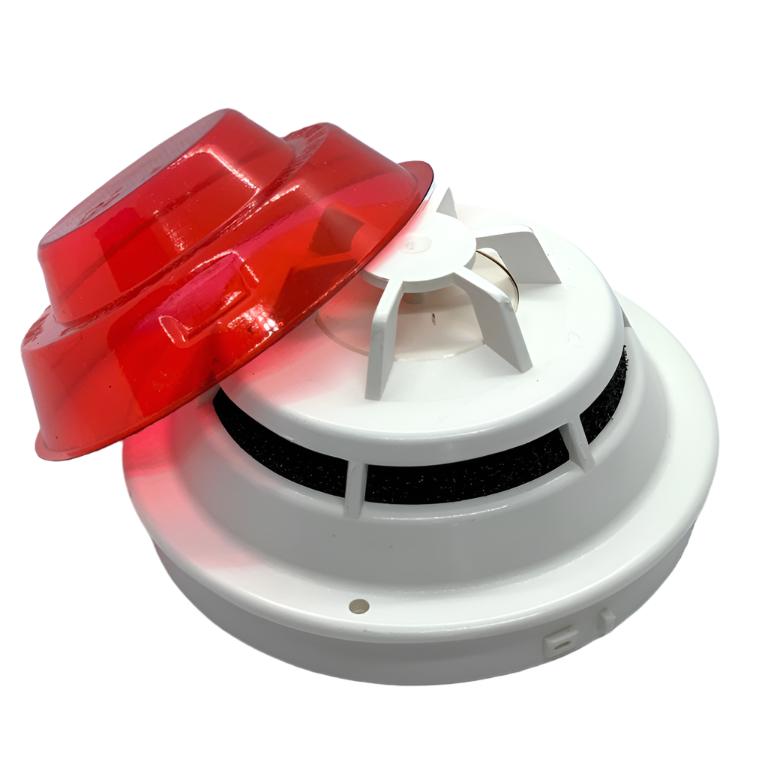

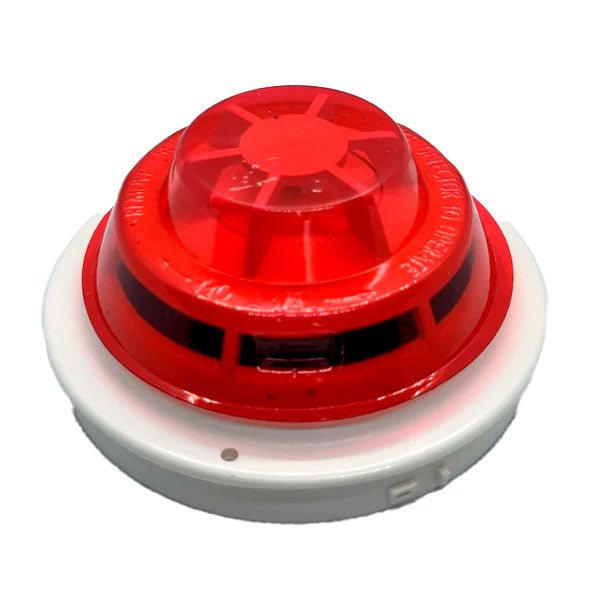

The HFP-11 is engineered with the most sophisticated detector intelligence available, allowing it to distinguish non-threatening phenomena from actual fire hazards while optimizing detection for the area in which it is installed. Smoke and thermal data are gathered and analyzed in the detector's on-board FirePrint neural network, which compares what it sees against the characteristics of real fires and against deceptive phenomena that cause ordinary detectors to false alarm. The control panel programs each head to one of eleven application profiles — office/retail, lobby, computer room, dormitory, healthcare, parking garage, utility/transformer room, hostile environment, precious storage, air duct, and warehouse/light manufacturing — and the detector reverts to the office setting if no profile is selected. Sensitivity, calibration and identification are dynamically supervised at the FACP, and the detector runs complete self-diagnostics every four seconds. Each detector ships with a protective dust cover; the mounting base is ordered separately.
Specifications
| Detector type |
Plug-in, two-wire, addressable multi-sensor (photoelectric and thermal inputs) |
| Compatible panels |
FireFinder XLS and FS-250 series FACPs |
| Operating temperature |
32°F to 100°F (0°C to 38°C), per UL 268 / UL 268A |
| Thermal alarm point |
Rate compensated at 135°F (57°C) |
| Relative humidity |
0–93%, non-condensing |
| Current draw |
1 mA in alarm or supervisory mode |
| Air velocity |
0–1200 ft/min open-area applications; 300–4000 ft/min using the ASD duct application |
| Maximum spacing |
30-foot centers (900 sq. ft.), per NFPA 72 and ULC-S524 |
| Application profiles |
11, selected from the control panel |
| Self-test |
Complete diagnostics every four seconds; status LED flashes green normal, amber trouble, red alarm |
| Wiring |
Two-wire, polarity insensitive (SureWire) |
| Mounting base |
DB-11 (500-094151), 4-inch octagonal, square or single-gang box; ordered separately |
| Listings and approvals |
UL and ULC Listed; FM, CSFM and NYC Fire Department Approved |
Installation notes
-
Base sold separately: the head plugs into a DB-11 (500-094151) or the smaller DB-11E (500-094151E). In Canada order the ULC-Listed DB-11C (500-095687).
-
T-tapping: permitted only on Style 4 (Class B) wiring. The detector itself is polarity insensitive, so existing two-wire runs can often be reused on retrofits.
-
Address before you install: the Model DPU (500-033260) device programmer sets and verifies the address and runs diagnostics on the head before it goes on the ceiling — there are no dials or switches to set.
-
High air movement: the standard open-area profiles cover 0–1200 ft/min. Above that — in plenums, inside a duct, or in a duct housing with sampling tubes — the ASD duct application must be selected, which is rated to 4000 ft/min.
-
Do not mount near supply or return outlets, and treat exposed joists or beamed ceilings as a limit on the 30-foot spacing figure.
-
Field cleanable: the photo chamber unsnaps for cleaning, and the DMK-11 maintenance kit (500-695338) supplies a replacement labyrinth and bug screen.
Related models
-
HFPT-11 (500-033380) — the FirePrint thermal detector covered by the same installation instructions; heat sensing only, no photoelectric chamber
-
FP-11 (500-095112) — FirePrint detector for FireFinder XLS and MXL panels rather than FireFinder XLS and FS-250
-
DB-HR (500-033220) — programmable relay base for H-series intelligent detectors, in place of the plain DB-11
-
ADBH-11 (500-033210) — audible base, for sounder-base applications on the same head
Specifications taken from the Siemens data sheet "Intelligent FirePrint™ Multi-Criteria Detector, Model HFP-11," document 6301 (June 2015, Rev. 5), with the thermal alarm point and air-velocity limits from Siemens installation instructions P/N 315-033290-11. Manufacturer specifications are subject to change without notice.
