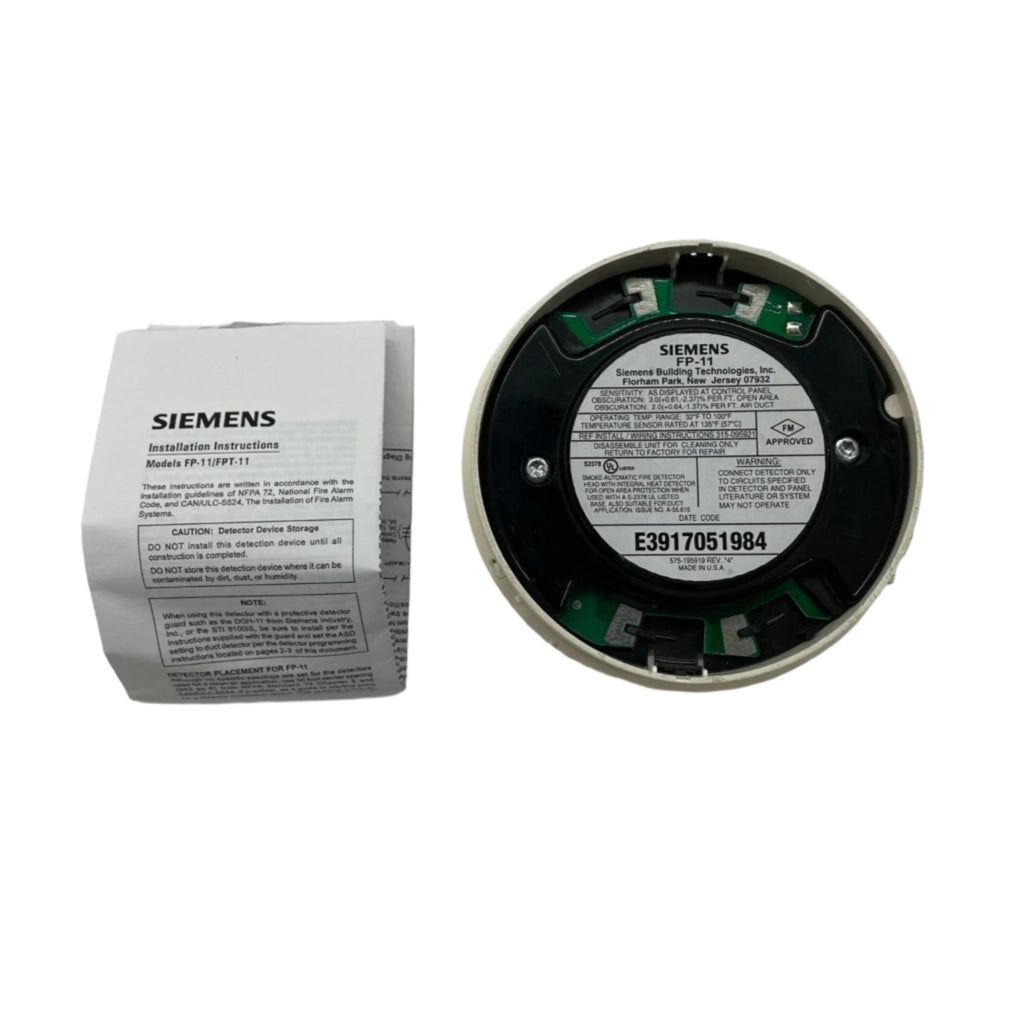

Siemens FP-11 (500-095112) — plug-in, two-wire addressable FirePrint multi-criteria detector with photoelectric and thermal inputs, for use with FireFinder XLS and MXL fire alarm control panels.
The FP-11 uses microprocessor circuitry with error checking, detector self-diagnostics and supervision programs to distinguish non-threatening deceptive phenomena — cigarette smoke, for instance — from actual fire hazards, while optimizing detection for the area it is intended to protect. System logic can be activated from any of three inputs: smoke, heat, or the detector's neural network. The panel programs each head to one of eleven hazard profiles — office/retail, lobby, computer room, dormitory, healthcare facility, parking garage, utility/transformer room, hostile environment, precious storage, air duct, and warehouse/light manufacturing — after which the software handles sensitivity with no alarm-verification delay. Each detector consists of a dust-resistant, field-cleanable photo chamber, a solid-state non-mechanical thermal sensor, and ASIC/surface-mount electronics in a low-profile housing, and ships with a protective dust cover. Programming and testing is done electronically with the Model DPU or the FPI-32 upgrade kit.
Specifications
| Detector type |
Plug-in, two-wire, addressable multi-sensor (photoelectric and thermal inputs) |
| Compatible panels |
FireFinder XLS and MXL family FACPs; backward compatible with older MXL systems Rev. 2 and above |
| Operating voltage |
16–27 VDC |
| Ripple |
3 V peak-to-peak |
| Supervisory current |
110 µA maximum |
| Alarm current |
33–50 mA |
| Operating temperature |
32°F to 100°F (0°C to 38°C) |
| Thermal alarm temperature |
135°F (57°C) |
| Humidity |
Up to 93% RH, non-condensing |
| Air pressure |
No effect |
| Maximum spacing |
30-foot centers (900 sq. ft.), per NFPA 72 |
| Application profiles |
11, selected from the control panel |
| Status LED |
Multi-color; flashes green every four seconds in normal operation |
| Mounting base |
DB-11 (500-094151), 4-inch (10.2 cm) octagon, square or single-gang box; ordered separately |
| Listings and approvals |
UL and ULC Listed; FM, CSFM and NYCFD Approved |
Installation notes
-
Base is ordered separately: the FP-11 uses the low-profile DB-11 surface base, or the smaller DB-11E. On a retrofit over an existing DB-3S base, the DB-ADPT adapter (500-094187) is the part that saves cutting in a new box.
-
T-tapping: permitted only on Style 4 (Class B) wiring.
-
Address before installing: the DPU or FPI-32 upgrade kit sets and verifies the address and runs a diagnostic test on the head, replacing dials and switches.
-
Not the same detector as the HFP-11: the FP-11 is the FireFinder XLS / MXL FirePrint head, while the HFP-11 is the FireFinder XLS / FS-250 head. Check the panel before ordering a replacement.
-
Locking kit: the DB-11 base accepts the LK-11 locking kit (50 detector locks and an installation tool) where unauthorized head removal is a concern.
-
Field cleanable: the photo chamber unsnaps; the DMK-11 kit (500-695338) supplies a replacement labyrinth and bug screen.
Related models
-
HFP-11 (500-033290) — the equivalent FirePrint multi-criteria head for FireFinder XLS and FS-250 panels
-
DB-X11RS (500-096125) — programmable relay base for 11-series intelligent detectors
-
ADBX-11 (500-096181) — audible base for the same head
-
FDBZ492 (S54319-B22-A1) / FDBZ492-HR (S54319-B23-A1) — air-duct housings, without and with relays, for HVAC duct applications
Specifications taken from the Siemens data sheet "Intelligent FirePrint™ Detector, Model FP-11," document 6175 (May 2016, Rev. 3). Manufacturer specifications are subject to change without notice.
