Gentex GEC3-24WR horn strobe: 24 VDC, selectable candela, red faceplate

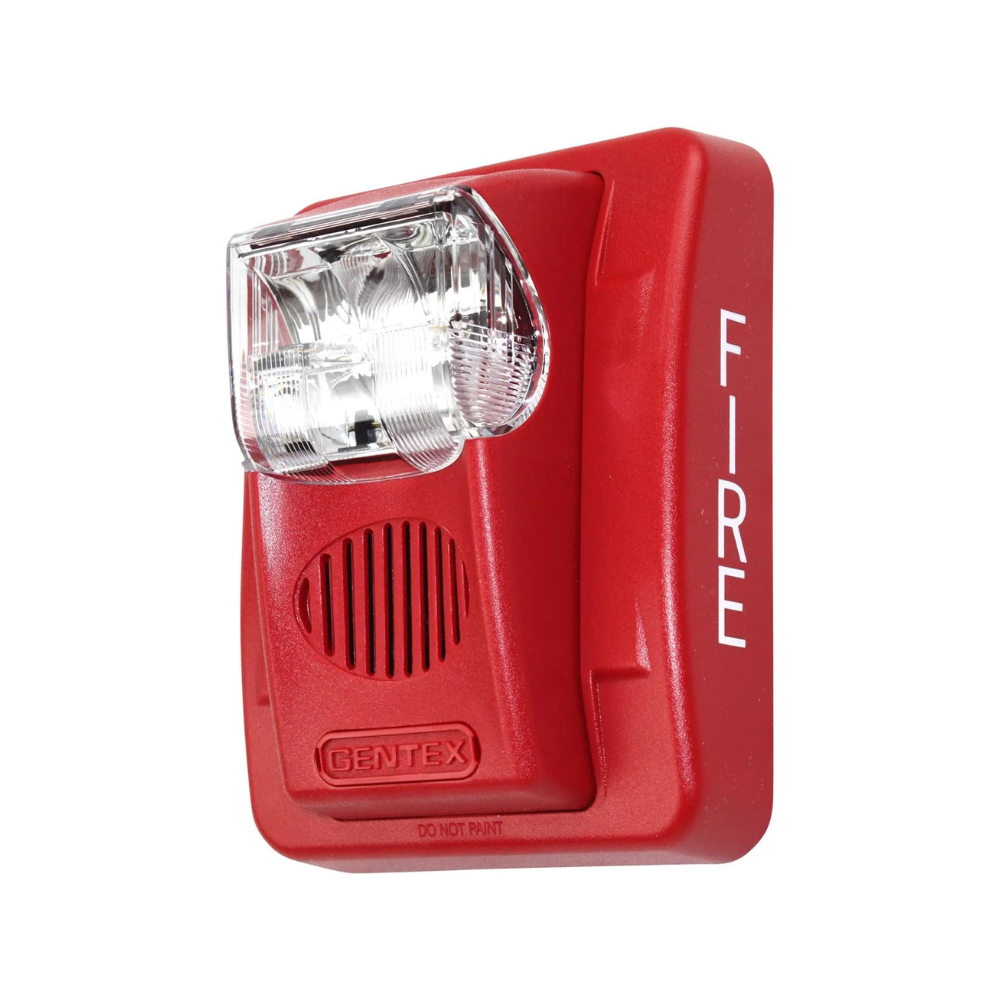

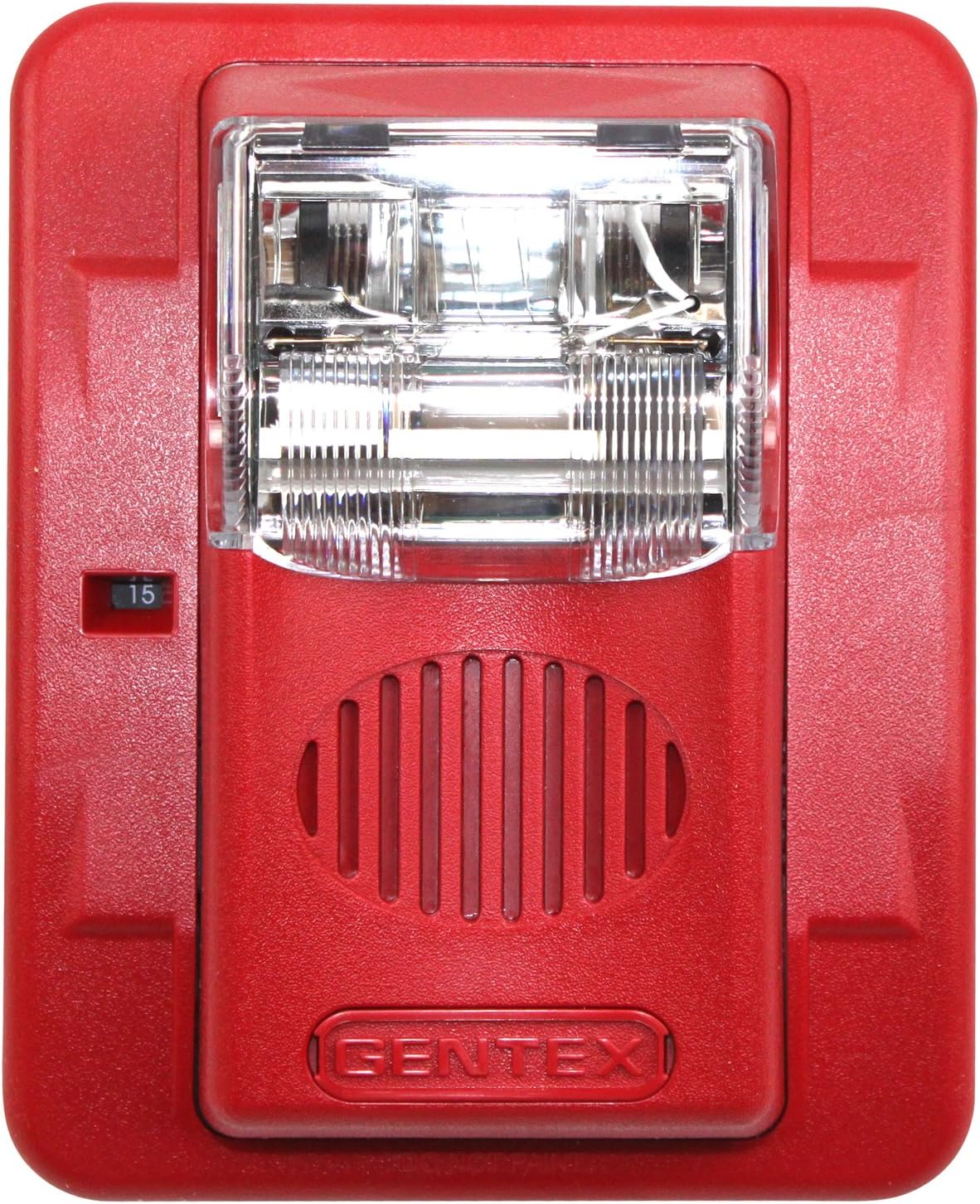

The Gentex GEC3-24WR is a Commander3 Series low-profile horn/strobe for 24 VDC fire alarm systems, with a red faceplate and wall mounting. The Commander3 Series offers dependable audible and visual alarms with very low current draw.
Features
- 24 VDC with tamperproof field-selectable candela: 15, 30, 60, 75 and 110 cd
- Horn tones set by switch: 2400 Hz, mechanical, chime and whoop; continuous or temporal 3 (not available on whoop)
- High or low dBA selection by switch

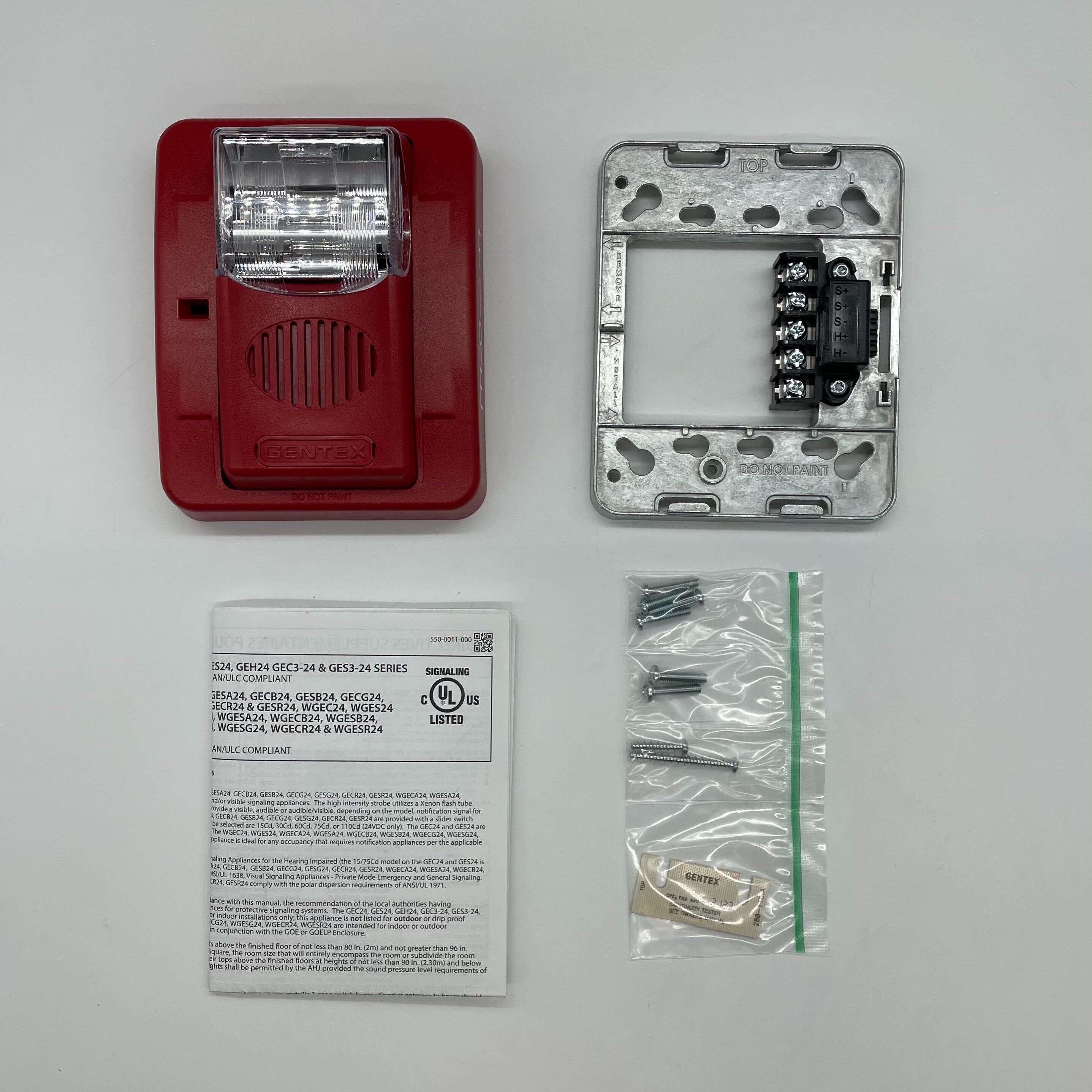

- Super-Slide bracket for easy supervision testing; the standard 4 in. metal mounting plate has a locking mechanism so no screws show
- Checkmate instant voltage verification, so the installer can check voltage drop against the blueprint
- Synchronize strobe and/or horn with the Gentex AVSM control module; the audible can be silenced while the strobe keeps flashing
- Surface mount with the GSB (Gentex surface mount box)
- Input terminals accept 12 to 18 AWG

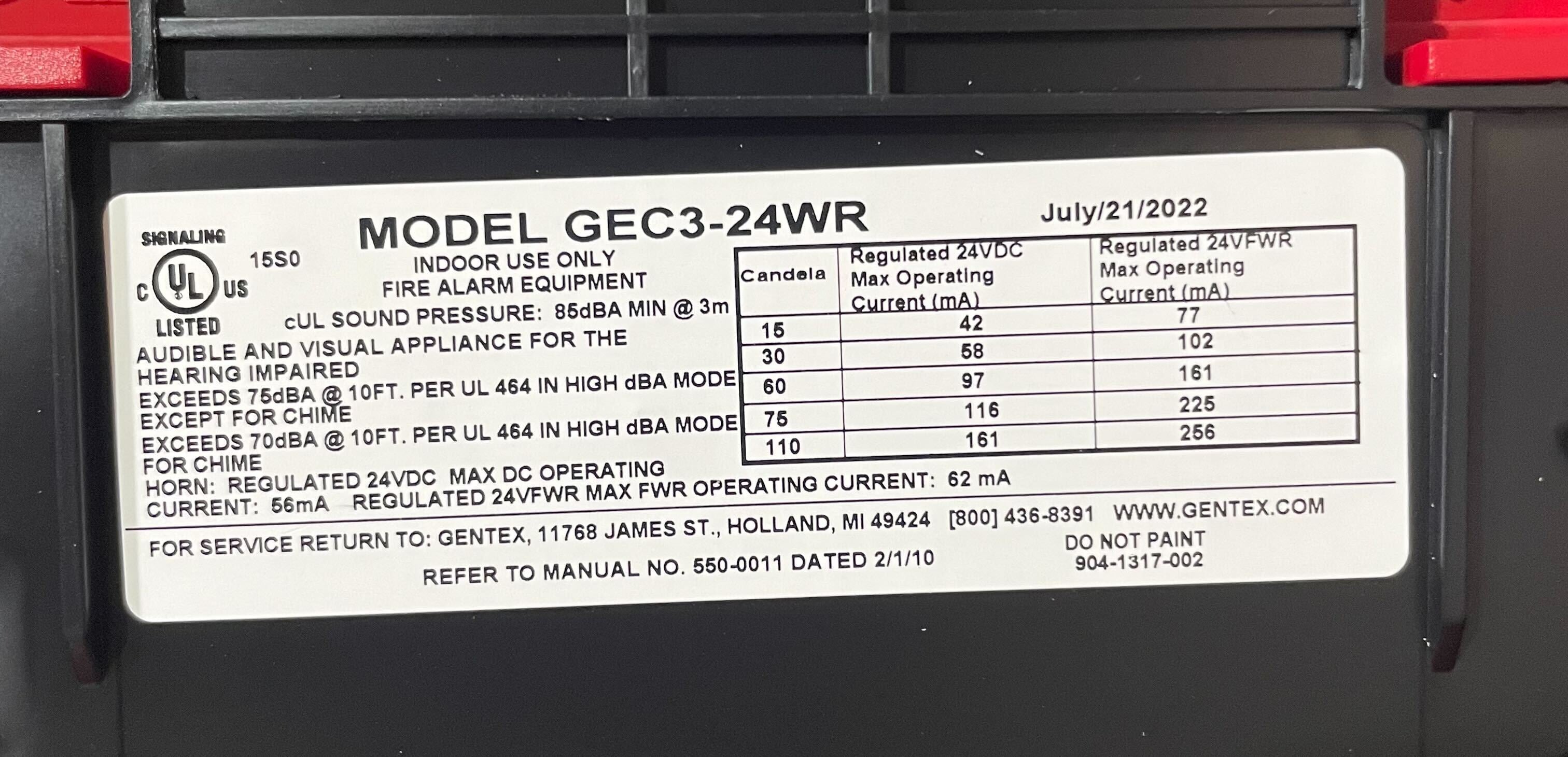

Specifications
| Model |
GEC3-24WR |
| Voltage |
24 VDC nominal (16 to 33 V) |
| Candela |
15, 30, 60, 75, 110 selectable |
| Horn output (temporal 3, 2400 Hz) |
78 dBA high setting, per ANSI/UL 464 minimum at 10 ft. |
| Operating temperature |
32°F to 120°F (0°C to 49°C) |
| Dimensions |
5 in. H x 4.5 in. W x 2.5 in. D |
| Listings |
ANSI/UL 464, ANSI/UL 1971, CAN/ULC S525 and S526 (24 VDC only) |
| Warranty |
Three years from date of purchase |
Compatibility
The GEC3-24WR is the red-faceplate 24 VDC horn/strobe. The white-faceplate version is the GEC3-24WW, and the strobe-only version is the GES3-24WR. For 12 VDC systems, see the GEC3-12WR.
Specifications taken from the Gentex Commander3 Series (GES3/GEC3) data sheet. Manufacturer specifications are subject to change without notice.
