Gentex GEC3-12WR — Commander3 low-profile horn strobe, 12 VDC, red faceplate, wall mount, catalogue number 904-1231-002.

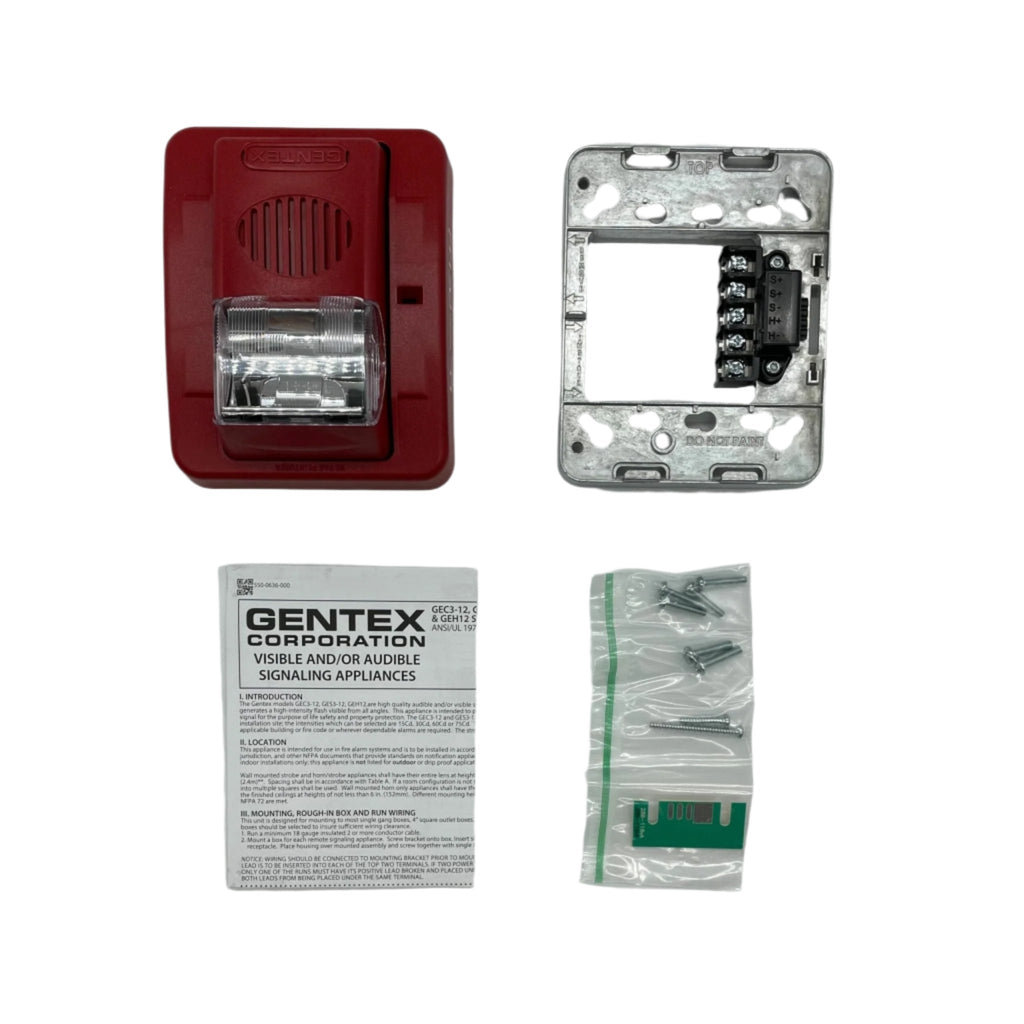

A selectable-candela evacuation signal for 12 V fire alarm notification circuits. It ships on a 4" metal Super-Slide mounting plate, so the circuit can be prewired and supervision tested before the signal goes on, and has Checkmate test holes for reading voltage in place.
- Candela 15, 30, 60 or 75; the 110 cd step is 24 V only
- Regulated range 8–17.5 VDC
- 2400 Hz, mechanical, chime or whoop; continuous or temporal 3
- At 12 V, high setting: 76 dBA temporal 3 and 79 dBA continuous 2400 Hz, reverberant per UL 464
- Low settings and the chime tone are private mode only
- ANSI/UL 464 and 1971; CSFM 7135-0569:130; ULC is 24 V only
- 5 × 4.5 × 2.5 in.; indoor, 32 to 120 °F
GEC3-12WW is the white faceplate version, GES3-12WR (904-1235-002) the 12 V strobe only, and GEC3-24WR (904-1317-002) the 24 V horn strobe with the 110 cd step.
