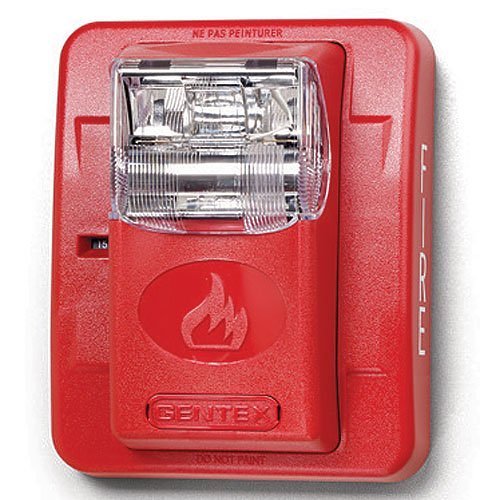

Gentex GES3-24WR — Commander3 Series selectable candela evacuation strobe, catalogue number 904-1321-002, 24 VDC, red faceplate, wall mount.

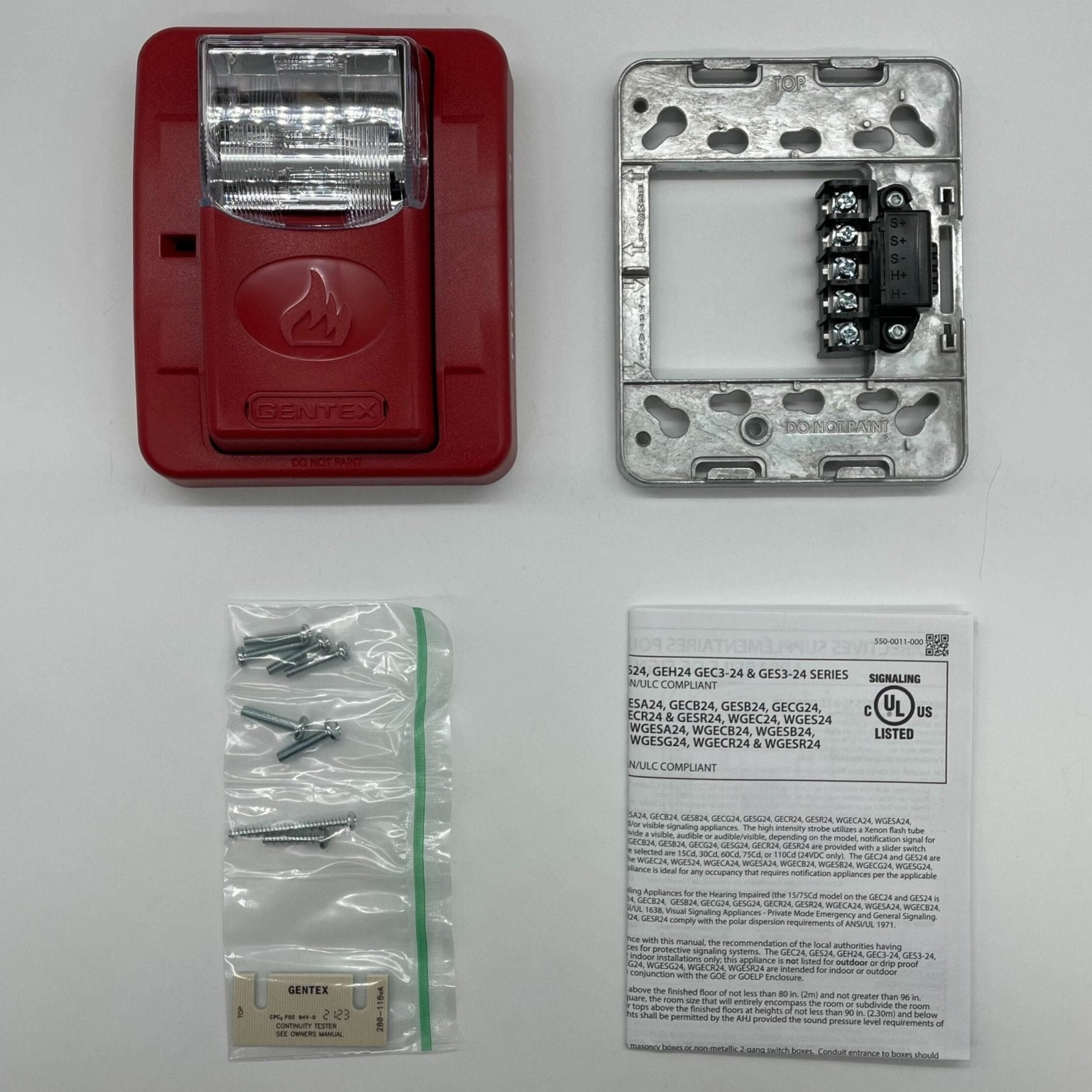

A low profile strobe for fire protective signalling. Candela is set in the field on a tamperproof switch, and the unit ships with a 4 in. metal mounting plate carrying the Super-Slide supervision feature. It is a strobe alone, with no horn and no tone switches.
- Field selectable candela: 15, 30, 60, 75 and 110 cd
- Nominal 24 VDC, operating range 16 to 33 volts

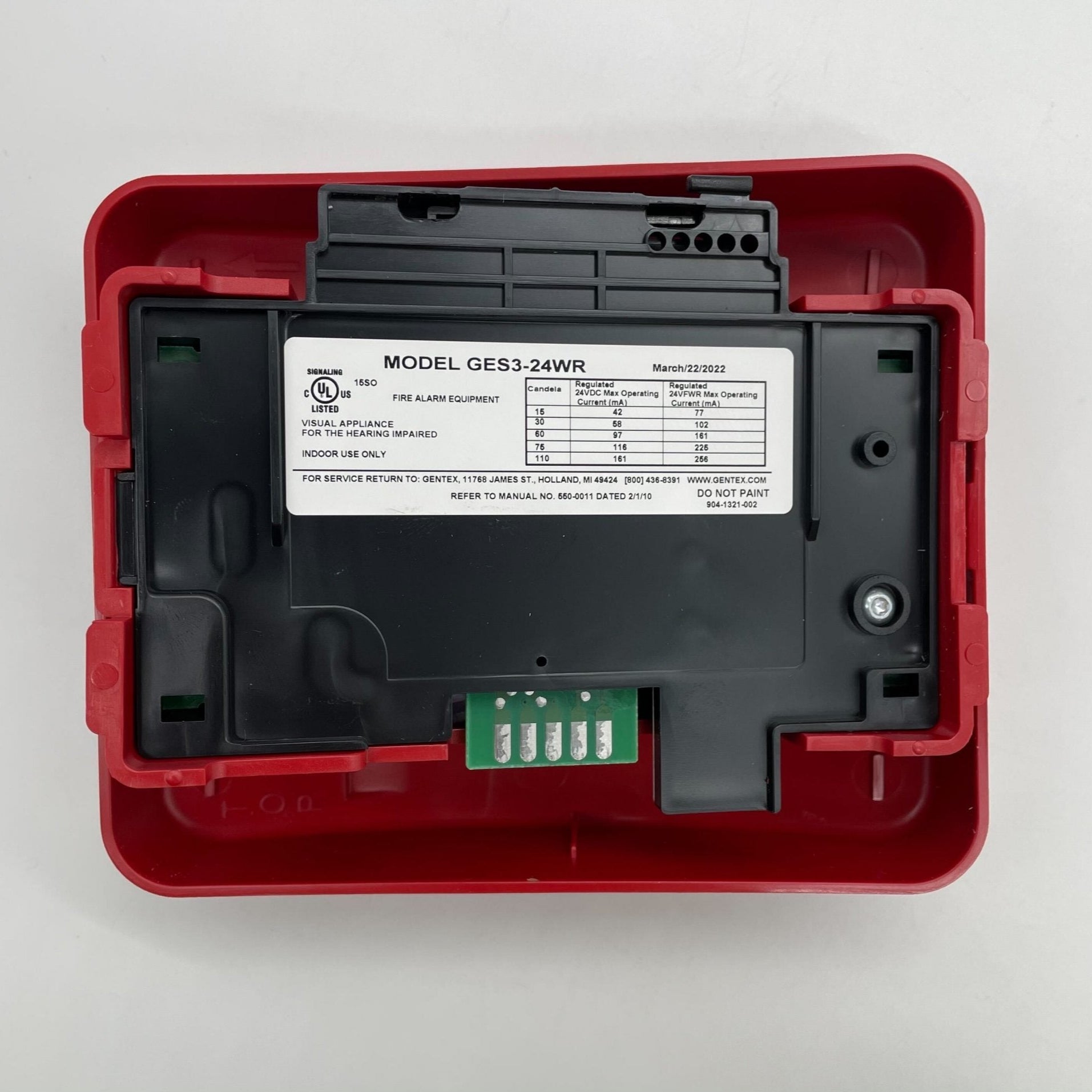

- Strobe current at 24 VDC: 30, 42, 66, 80 and 103 mA, UL maximums 42, 58, 97, 116 and 161 mA
- Certified to ANSI/UL 1971; CSFM 7125-0569:123 and MEA 285-91-E
- 5 in. high × 4.5 in. wide × 2.5 in. deep; terminals accept 12 to 18 AWG
- Surface mounting uses the separate GSB Gentex Surface Mount Box
GES3-24WW is the white faceplate version and the 12 VDC GES3-12WR stops at 75 cd. The horn strobe on the same housing is GEC3-24WR, and it is that model rather than this one that carries the ANSI/UL 464 audible certification quoted for the series.
Documents
FAQ
Which candela settings does the GES3-24WR have?
15, 30, 60, 75 and 110 cd, set on a tamperproof field switch.
Is there a horn on this model?
No, the GES3-24WR is a strobe only. The GEC3-24WR is the horn/strobe in the same housing.
How is it surface mounted?
It ships with a 4 in. metal mounting plate with the Super-Slide feature; surface mounting uses the separate Gentex GSB surface mount box.
What voltage does it need?
24 VDC nominal, with an operating range of 16 to 33 volts. The GES3-12WR is the 12 VDC model.
