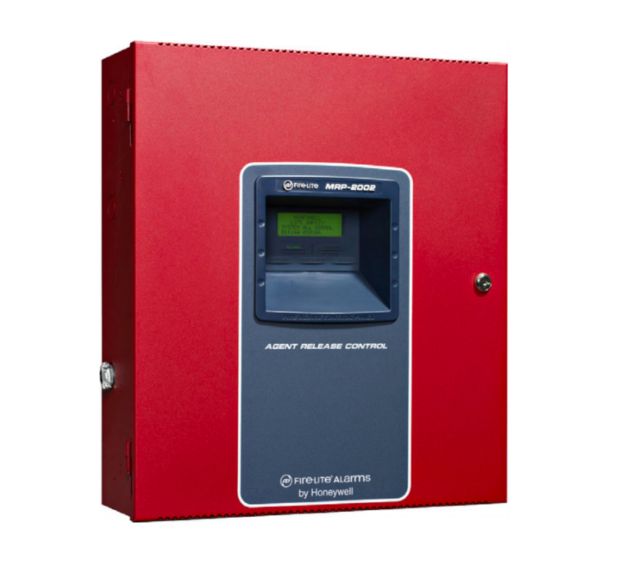

MRP-2002E is the 220/240 VAC version of the Fire-Lite MRP-2002 six-zone agent release control panel. It is a conventional fire alarm control panel for single and dual hazard agent releasing applications, designed for agent releasing standards NFPA 12, 12A, 12B and 2001. Apart from the AC input, Fire-Lite states it has the same features as the 120 VAC MRP-2002.
Specifications
| Part number |
MRP-2002E |
| AC power |
240 VAC, 50/60 Hz, 2.085 A (FLPS-7 power supply); minimum #14 AWG wire with 600 V insulation |
| Initiating device circuits |
6 programmable Style B (Class B), Style D (Class A) with optional CAC-5X; 4.7K ohm end-of-line resistor |
| Output circuits |
4, programmable as NACs or releasing circuits, Style Y (Class B) or Style Z (Class A) with converter module |
| Total 24 VDC output |
7.0 A (3.0 A special application, 300 mA regulated maximum per NAC) |
| Relays |
3 programmable Form-C (default Alarm, Trouble, Supervisory); 2 A @ 30 VDC, 0.5 A @ 30 VAC resistive |
| Auxiliary power |
Resettable and resettable/nonresettable 24 VDC outputs, 500 mA each |
| Battery charger |
27.6 VDC @ 1.4 A; 7 Ah minimum, 26 Ah maximum (two 18 Ah batteries fit in the cabinet) |
| Display |
80-character backlit LCD, real-time clock, 256-event history log |
| Annunciators |
Up to 8 ANN-BUS devices |
| Strobe synchronization |
System Sensor, Wheelock, Gentex, Faraday, Amseco |
| Cabinet backbox |
19.00 in. H x 16.65 in. W x 5.25 in. D |
| Operating environment |
32 to 120°F (0 to 49°C), 93% ± 2% RH noncondensing |
| Listings |
UL 864 9th edition (UL S624), FM approved, CSFM 7165-0075:0216, MEA 333-07-E; IBC seismic with SEISKIT-COMMENC |
Compatibility and installation notes
- Works with System Sensor i3 conventional detectors and with two-wire and four-wire smoke detectors, pull stations, waterflow and tamper switches; see the Fire-Lite Device Compatibility Document for listed devices.
- Includes cross-zone (double interlock), dual hazard operation, and adjustable pre-discharge, discharge and waterflow delay timers.
- Options include DP-51050 dress panel, TR-CE trim ring for semi-flush mounting, CAC-5X Class A converter, 4XTMF transmitter module, 411 series communicators and ANN-SEC card.
- Batteries larger than two 18 Ah units need a separate battery box such as BB-26 or BB-55.
Related models
Documents
Specifications from Fire-Lite data sheet DF-60238:C3 (3/6/2017). Manufacturer specifications are subject to change.
