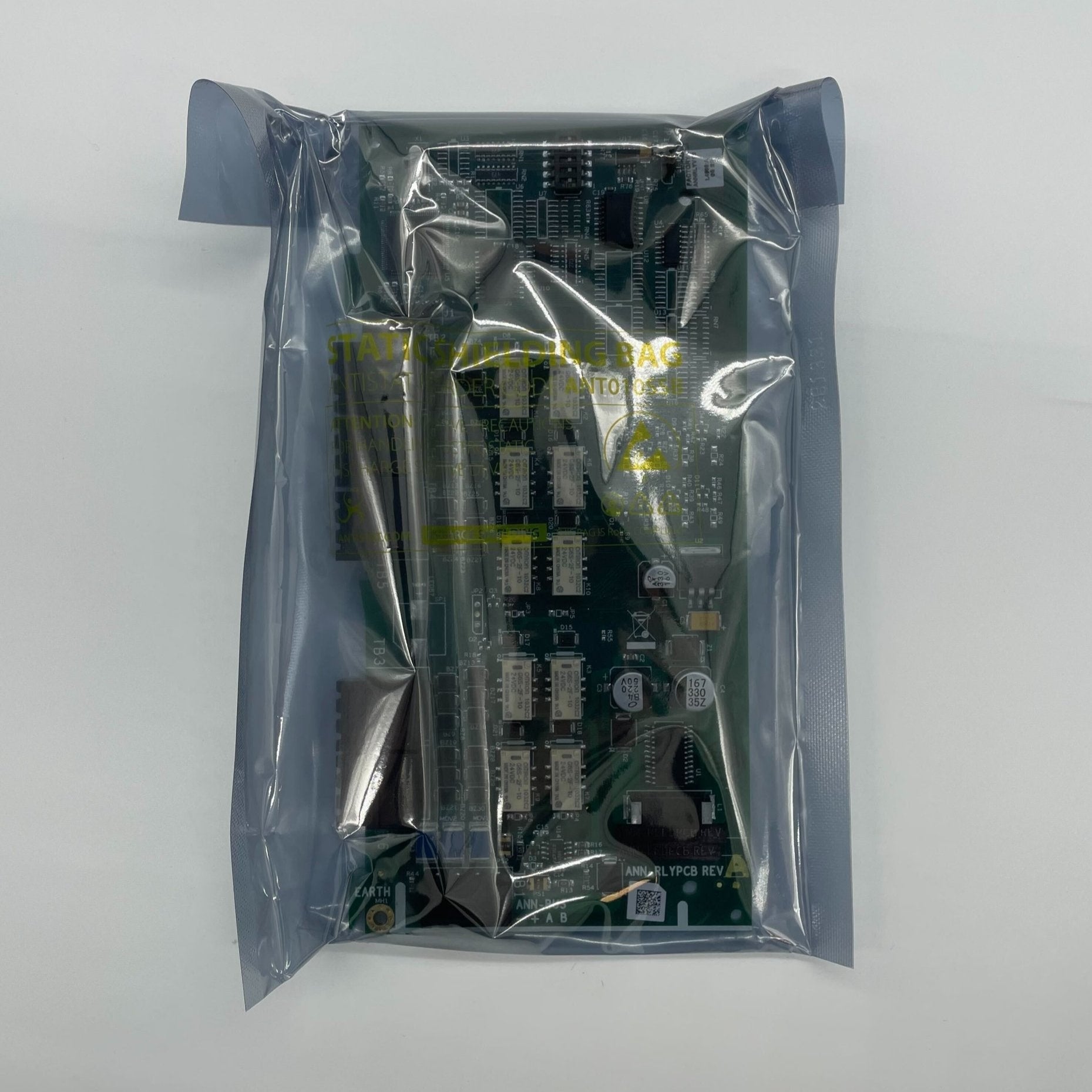

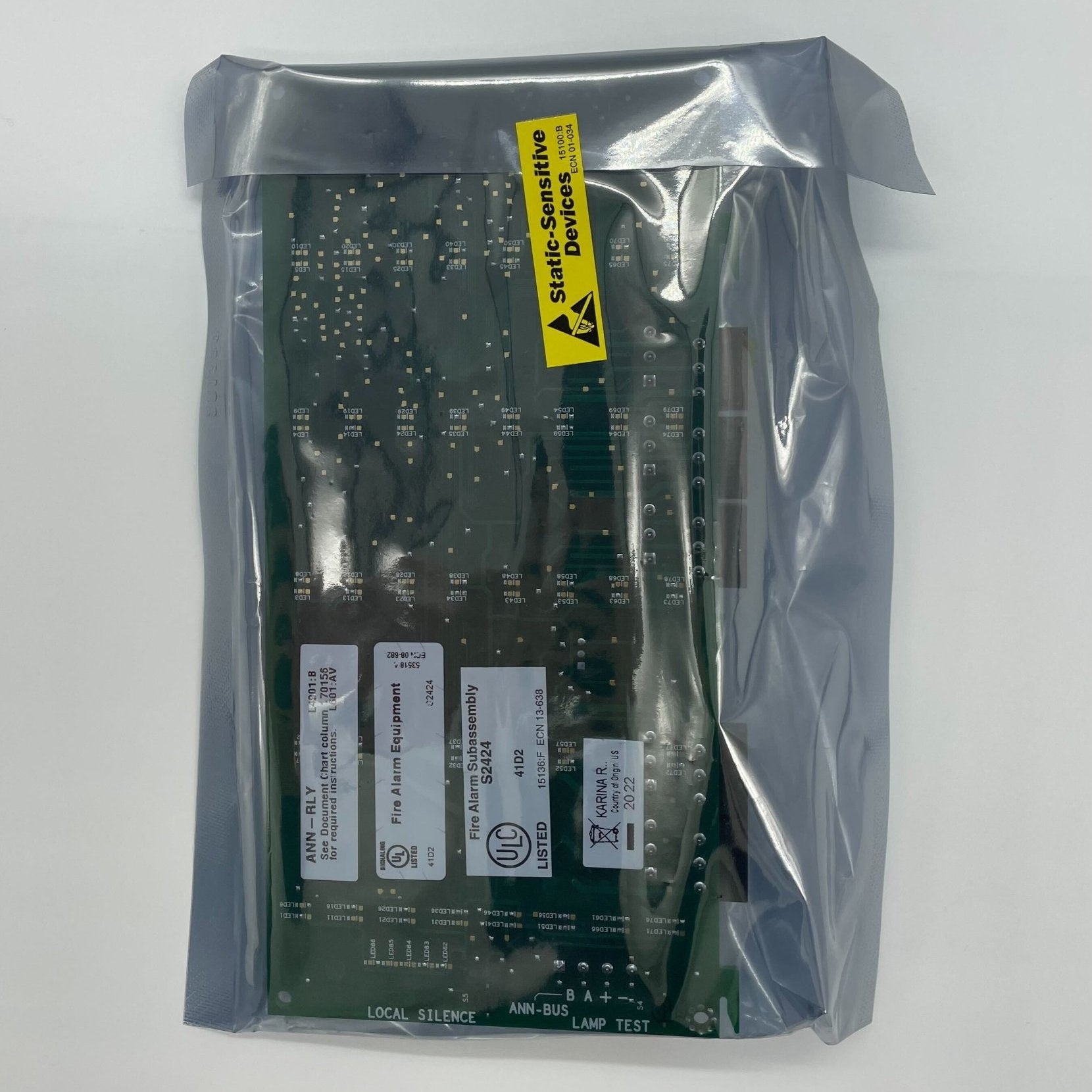

Fire-Lite ANN-RLY 10 Relay Board, Mounts In Common Enclosure MS-5UD-3, MS-10UD-7, MRP-2001, MRP-2002, MS-9050, MS-9200UDLS, MS-9600LS and MS-9600UDLS
ANN-RLY: ANN-RLY Relay Module, 24VDC, 75mA, 32 to 120ºF, 10 Relay
ANN-RLY relay modules provide 10 programmable Form C relays when used with compatible fire alarm control panels (FACPs). & These modules may be mounted inside the FACP main circuit board chassis or in the battery area of the enclosure using an optional mounting bracket. ANN-RLY modules and FACPs communicate over a 2-wire serial interface employing the ANN-Bus communication format. An additional two wires are used for 24V DC power. A single 4-conductor unshielded cable may be used for both power and data communications. Up to eight ANN-Bus devices may be connected to the ANN-Bus of each FACP.
Key Features
- Minimal programming
- Provides 10 programmable Form C relays with functions including alarm, trouble, supervisory, AC Loss, water flow delay, input zones and silenceable alarm
- May be powered by 24V DC from the host FACP or by remote power supply
- Up to eight ANN-Bus devices may be connected to the ANN-Bus of each FACP
