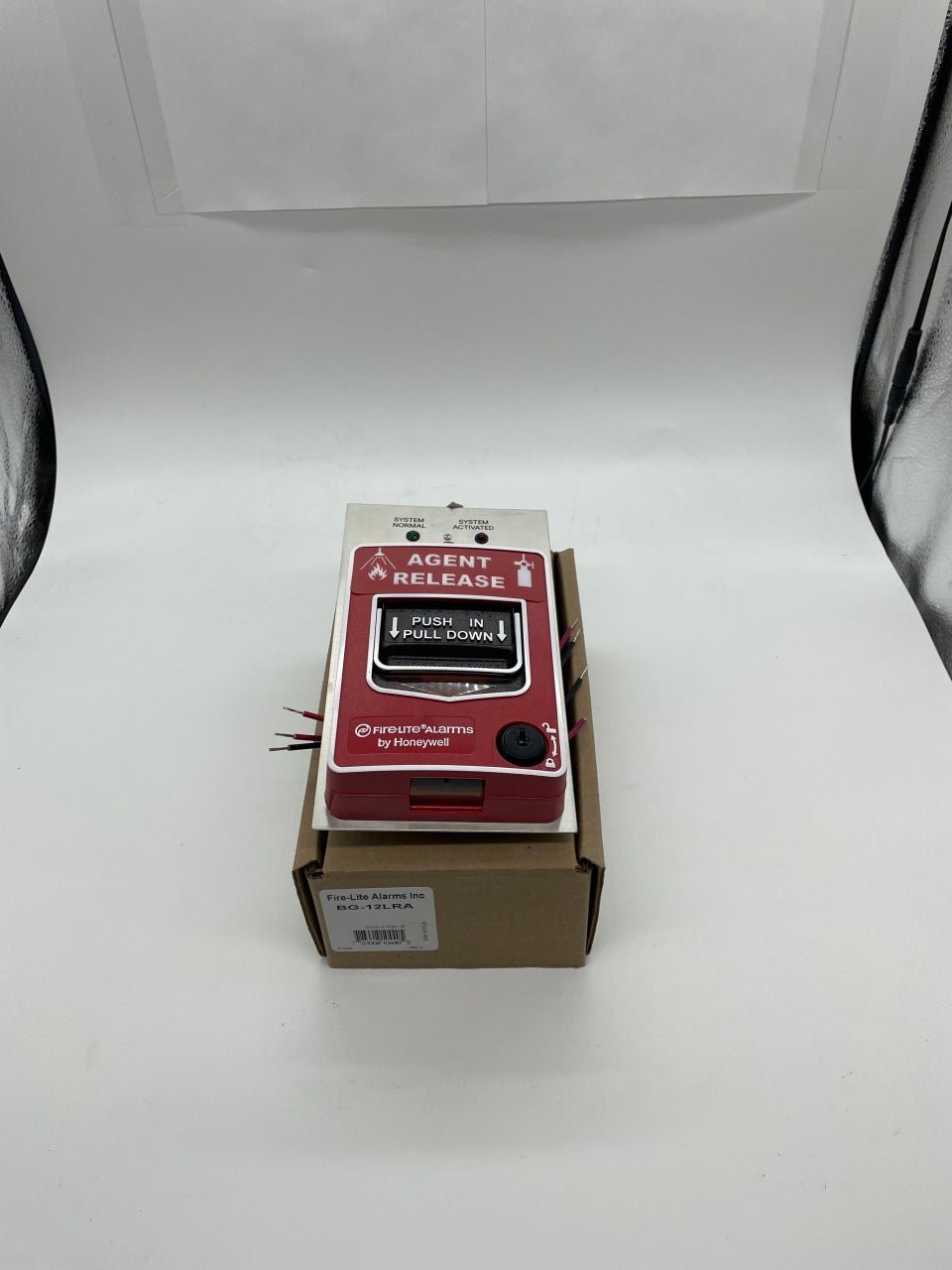

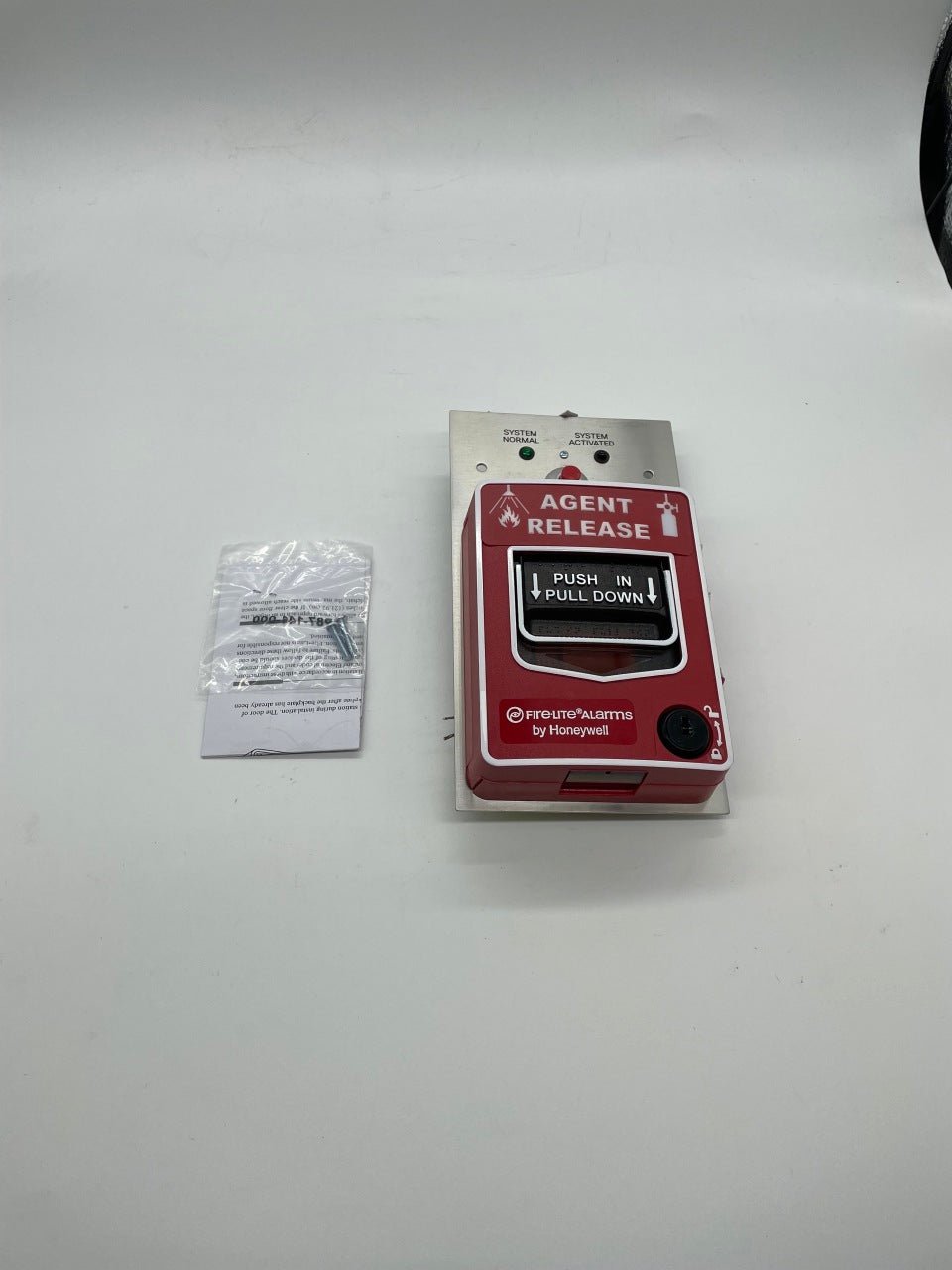

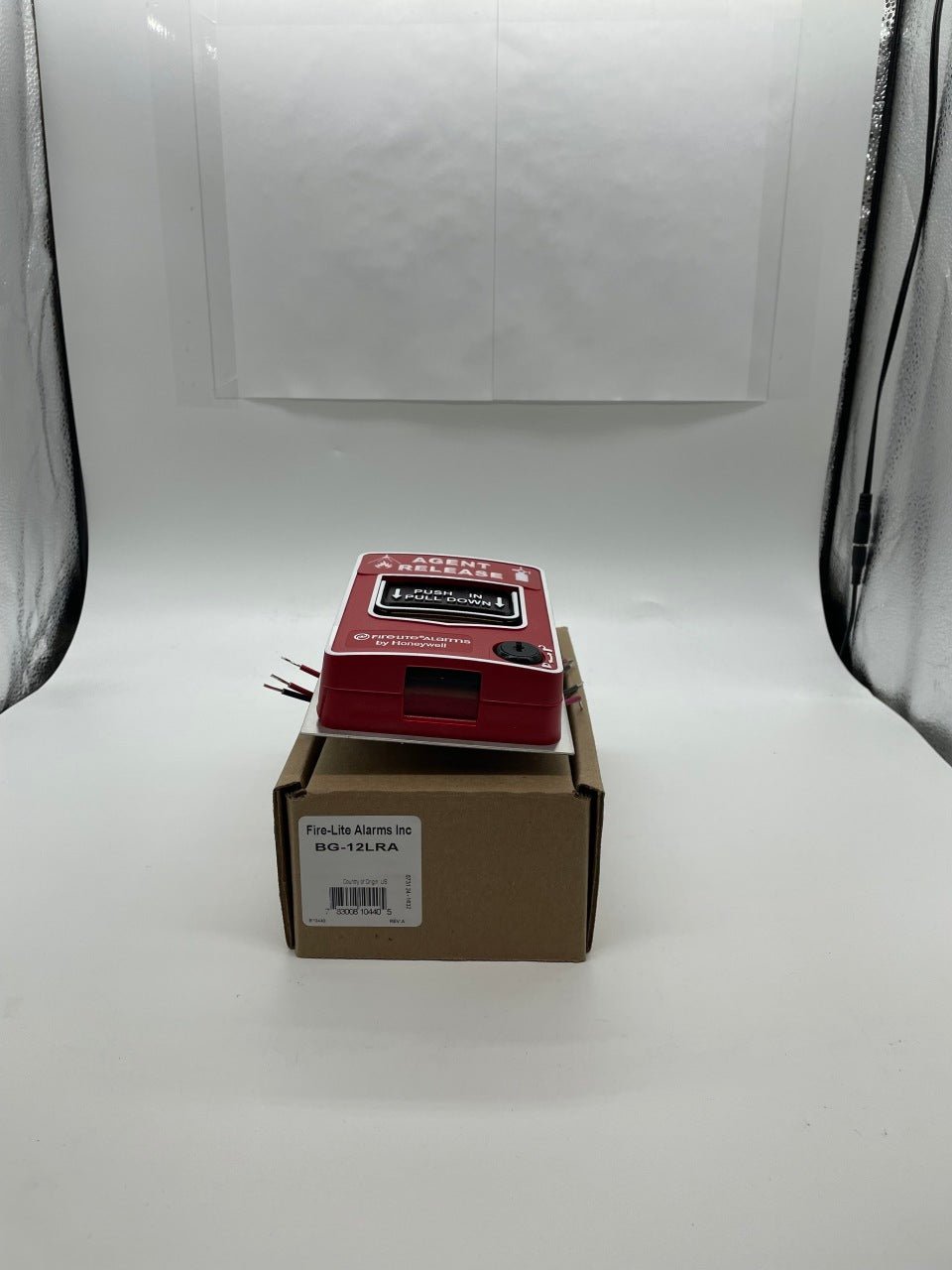

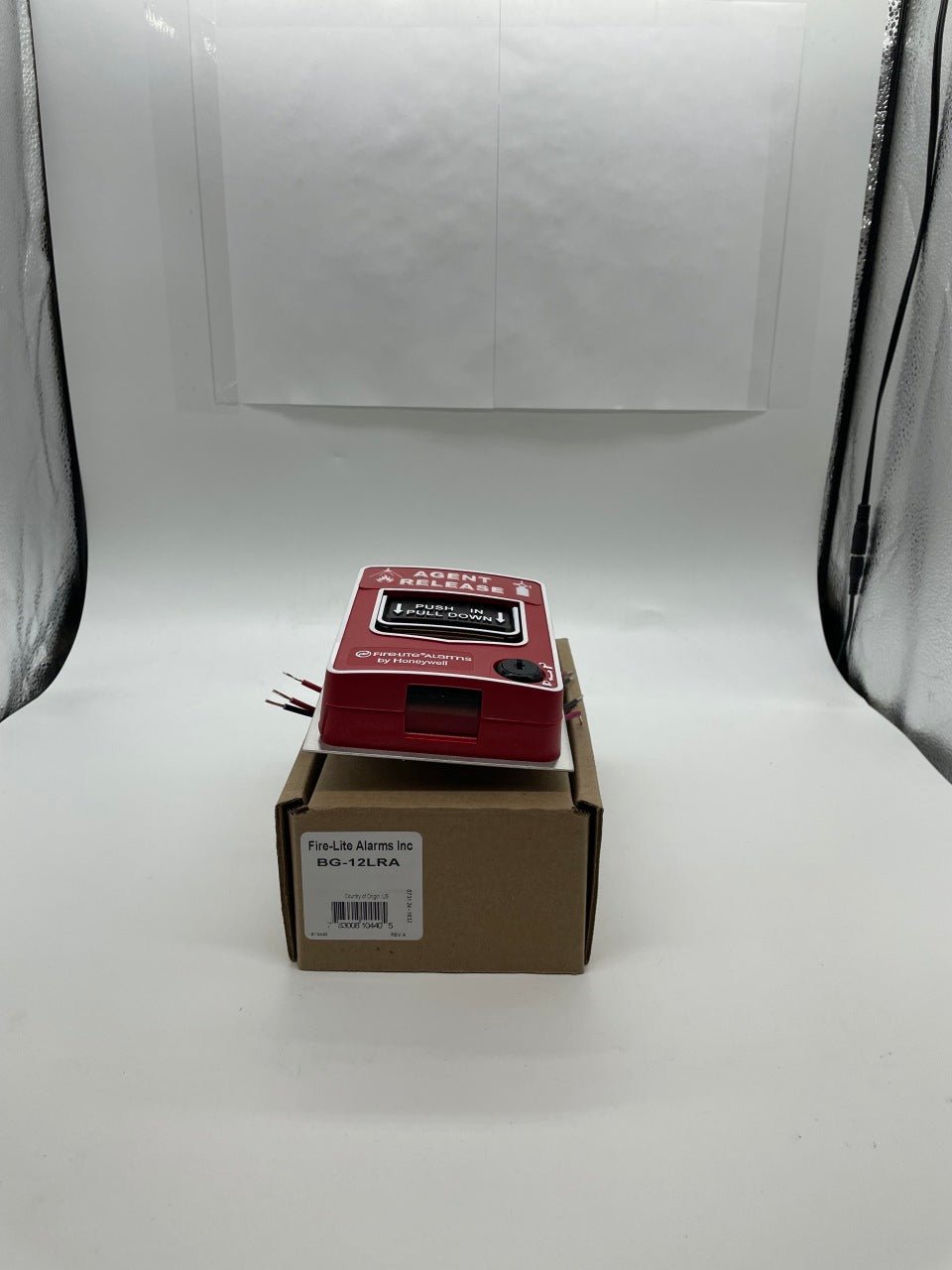

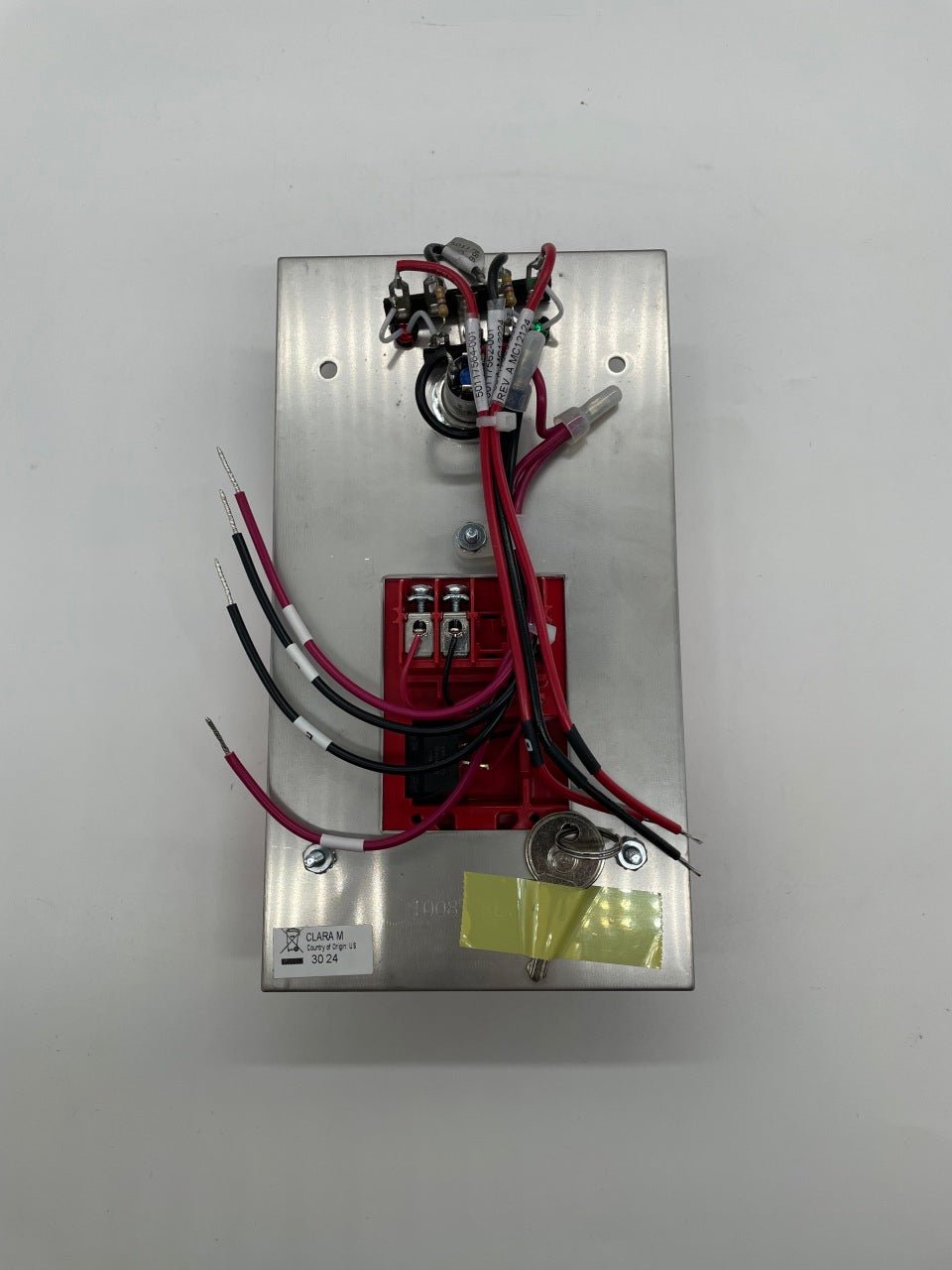

Fire-Lite BG-12LRA Dual-Action Agent Release Station with Abort Switch, Release, Normal LED
BG-12LRA: Dual-Action Agent Release Station, Abort Switch, Relase Led, Normal Led

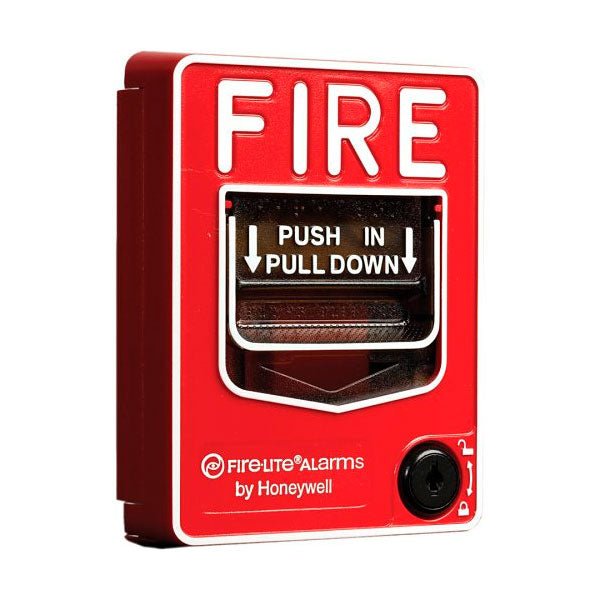

BG-12 Series fire alarm pull stations are designed to meet multiple applications with the installer and end user in mind. They feature a variety of models including single- and dual-action versions.
These pull stations provide an alarm initiating input signal to conventional fire alarm control panels (FACPs). Its innovative design, durable construction, and multiple mounting options make these pull stations simple to install, maintain, and operate. The cover, backplate, and operation handle of these pull stations are all molded of durable polycarbonate material.
Key Features
- Aesthetically pleasing, highly visible design and color
- Meets ADA & five lb maximum pull-force
- Easily operated (single- or dual-action, model dependent), yet designed to prevent false alarms when bumped, shaken, or jarred
- PUSH IN/PULL DOWN handle latches in the down position to clearly indicate the station has been operated
- The word 'ACTIVATED' appears on top of the handle in bright yellow, further indicating operation of the station
- Operation handle features white arrows showing basic operation direction for non-English-speaking persons
- Braille text included on finger-hold area of operation handle and across top of handle
- Multiple hex- and key-lock models available
- US patented hex-lock needs only a quarter-turn to lock/unlock
- Station can be opened for inspection and maintenance without initiating an alarm
Documents & Downloads
FAQ
Which panels is the BG-12LRA used with?
It is designed for Fire-Lite fire alarm control panels with releasing capabilities and RP Series releasing systems.
What does it include compared with the BG-12LR?

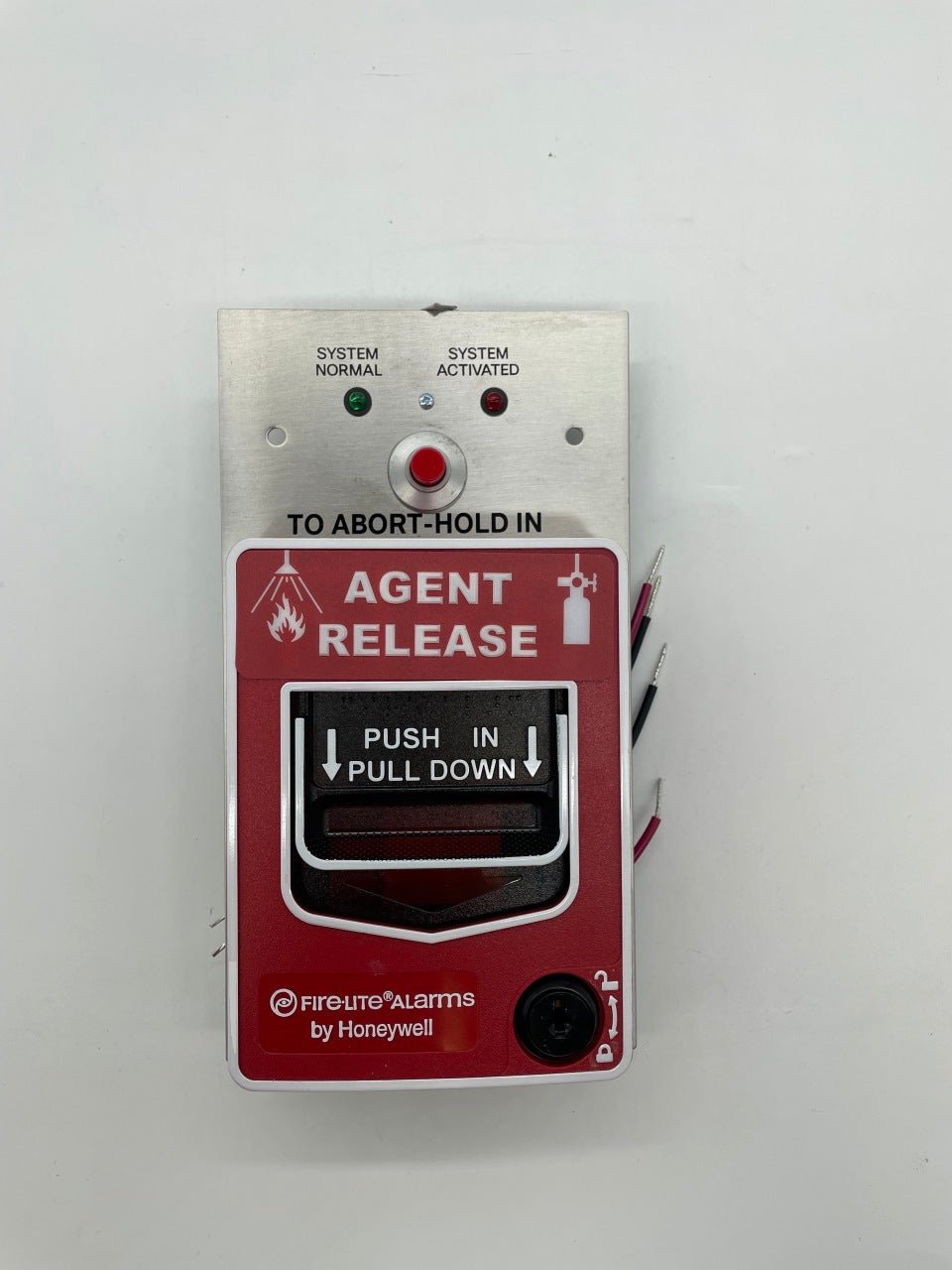

The BG-12LRA adds an abort switch, power-on (normal) indication and released indication to the dual-action manual release. The BG-12LR is a dual-action release only.
Which backbox does it need for surface mounting?
The SBA-10 metal surface backbox, 4.5 x 8.188 x 1.375 in. The SB-10 and SB-I/O backboxes are for the BG-12LR.
Which end-of-line resistor is used?
Mount a 4.7K ELR on the last unit when the abort and manual release switches connect to control panel circuits, or a 47K resistor when they connect to a monitor or control module.
